ARB RD111 Air Locker Differential Toyota 8" IFS 30 Spline 3.91 & Up

The ARB RD111 is the world's premier traction aid, designed specifically for Toyota 8-inch IFS (Independent Front Suspension) applications with 30 spline axles and 3.91 and higher gear ratios. With the flick of a switch, this Air Locker provides instant locking at any moment, and its super-strong design allows activation at any speed, enabling you to conquer the most challenging off-road terrain.

How It Works:

The advantage of the Air Locker lies in its pneumatically operated locking system inside the differential. When activated, it prevents the internal differential gears from rotating and therefore prevents the axle shafts from turning independently. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates like a conventional open differential.

Key Specifications:

• Differential: Toyota 8-inch
• Compatible with 3.91 and up gear ratios, 30 spline axles
• Shaft diameter: 1.31 inches
• 53mm bearing ID
• Nodular iron construction
• Front axle position

Premium Features:

• Patented gear technology and 2-piece design ensures optimal locking strength
• Forged gears provide superior strength and durability
• Incredibly simple yet effective design employs minimal moving parts for maximum reliability
• Industry-leading five-year warranty
• Easy maintenance with no special additives required

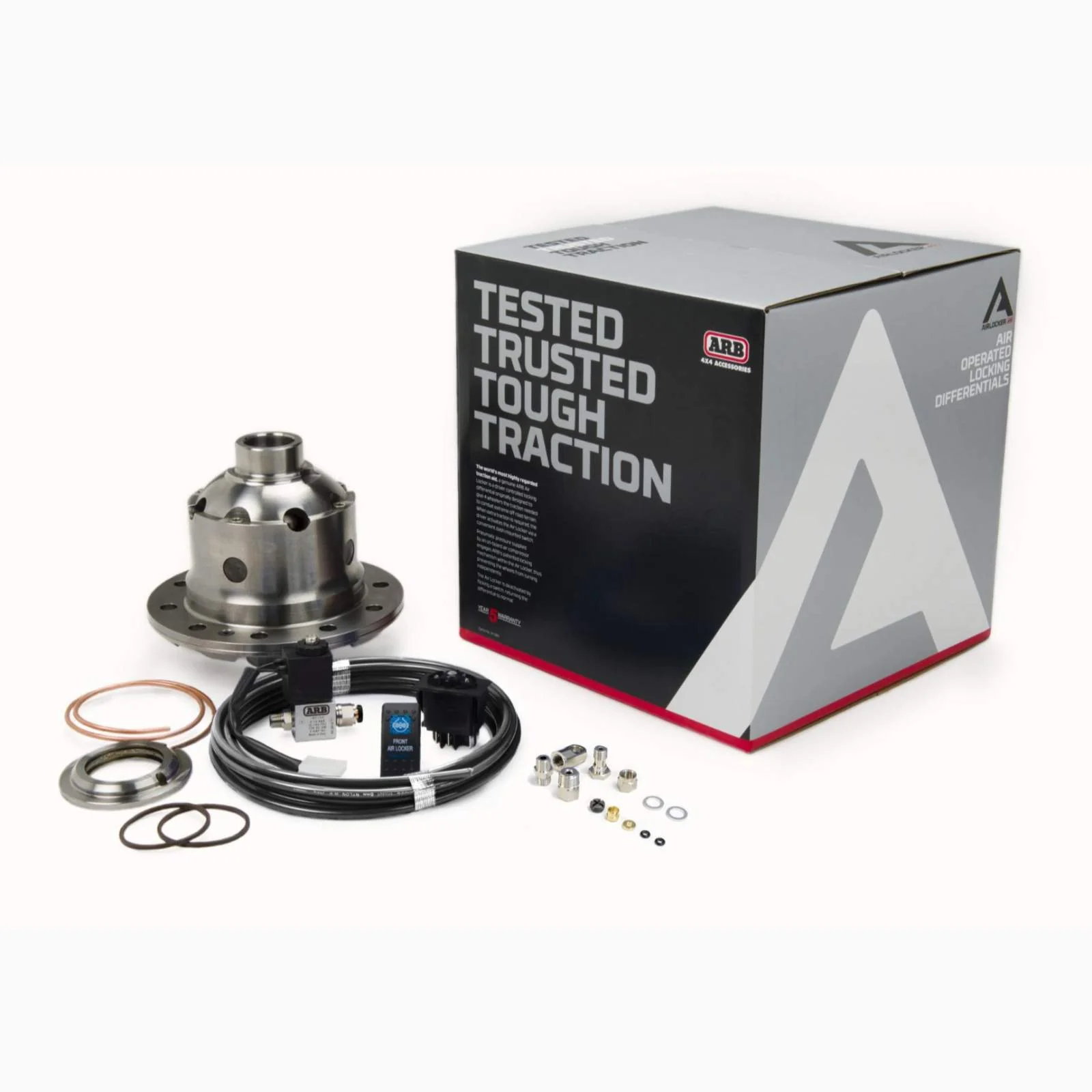

Complete Kit Includes:

• Air Locker differential, activation switch, solenoid valve, air line, and bulkhead fitting
• Detailed installation instructions
• All necessary seals and hardware

Important Notes:

• Air compressor required for operation (sold separately)
• Installation should be performed by a qualified differential technician, although no special tools are required beyond those for standard differential installation
• Not all units are supplied with replacement carrier bearings

An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact. Designed and manufactured in Australia, ARB Air Lockers are available in over 100 configurations and are proven in the toughest conditions worldwide.
