Gates G25832-1212 Female British Standard Parallel Pipe O-Ring Swivel 90° Hydraulic Coupling

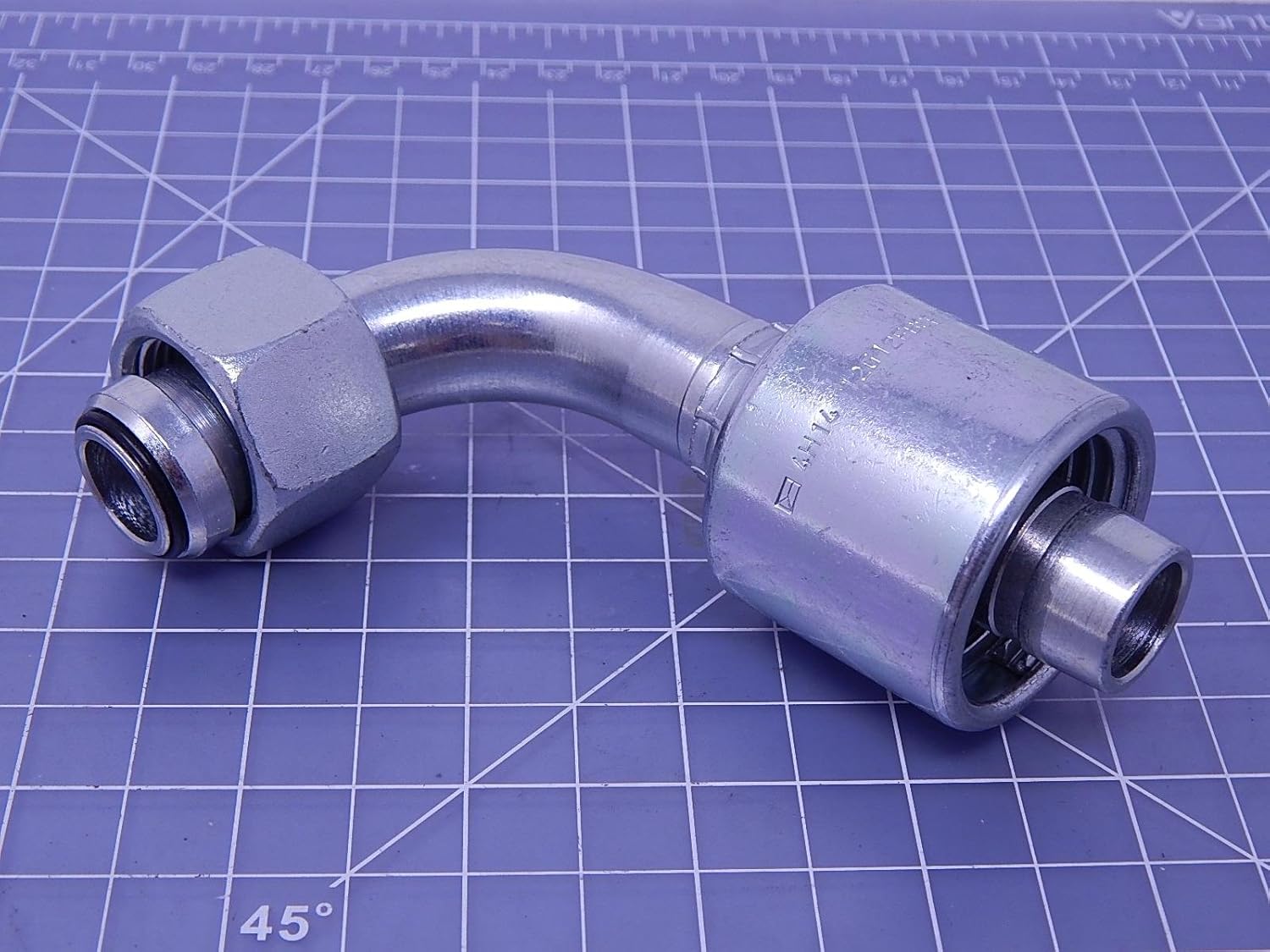

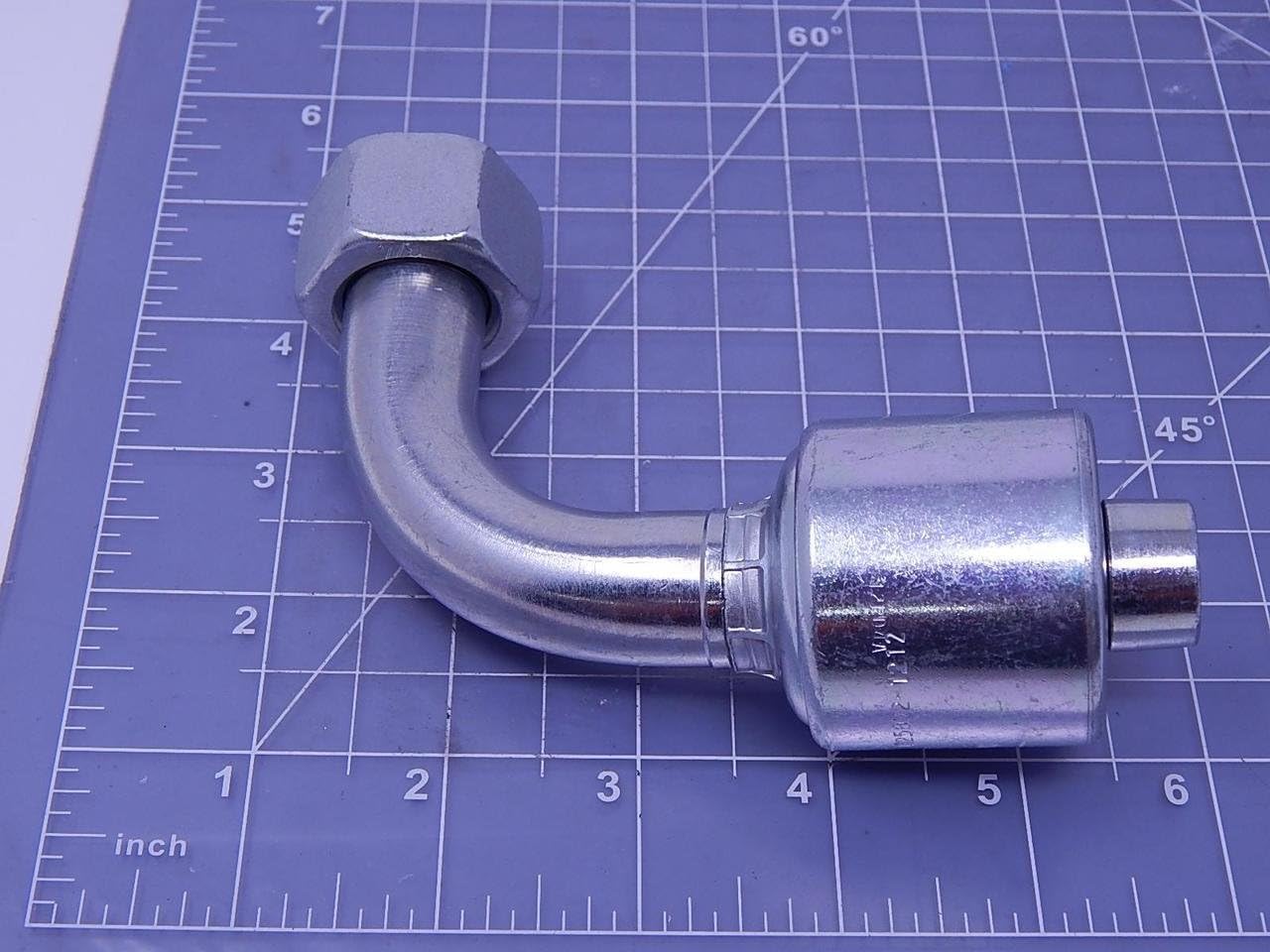

The Gates G25832-1212 MegaCrimp hydraulic coupling delivers reliable, leak-proof performance for high-pressure hydraulic systems. This female British Standard Parallel Pipe (BSPP) O-ring swivel coupling features a 90-degree bent tube configuration with 3/4-14 thread size and 0.75-inch inside diameter, making it ideal for space-constrained installations requiring angular connections.

Key Features:

• Patented "C" insert pre-assembled design provides world-class, leak-proof performance
• "C" insert accommodates hoses of different constructions and wall thicknesses, simplifying inventory requirements
• Ensures even distribution of crimping forces to form a concentric, weep-free seal
• Compatible with both one-wire and two-wire braid hydraulic hoses

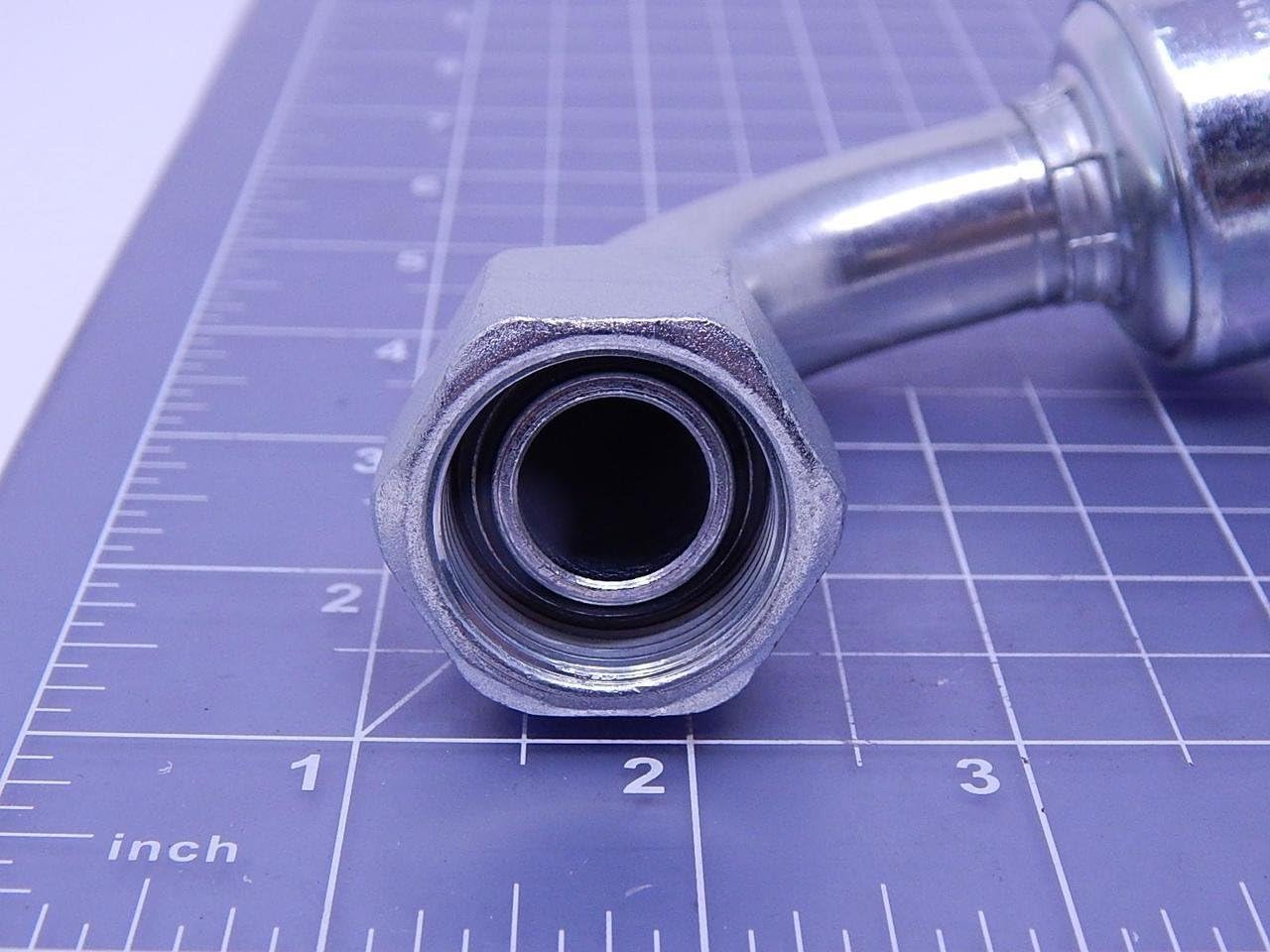

• O-ring sealing in flare for enhanced leak prevention
• TuffCoat plating provides superior corrosion resistance compared to SAE standards
• Fully qualified EN-performance coupling
• 3.72-inch overall length with 2.36-inch drop length

This MegaCrimp coupling features Gates' bite-the-wire function that grips the hydraulic hose wire braiding, providing superior seal integrity and resistance to high-pressure hydraulic impulses. The swivel design allows for easier installation and reduced stress on connections. Cross-references include Parker 1B243-12-12, Weatherhead 12E82P/12U82P/12Z82P, Aeroquip 1A12BFB12/1B12BFB12, and Goodyear 14120-1212.
