Gates G25175-1212 MegaCrimp Hydraulic Coupling 3/4" Female JIC 37° Flare 45° Bent Tube

The Gates G25175-1212 (12G-12FJX45S) is a MegaCrimp hydraulic coupling featuring a female JIC 37-degree flare swivel connection with a 45-degree bent tube configuration. Designed for 3/4-inch hose inner diameter applications, this coupling delivers leak-proof performance in high-pressure hydraulic systems.

Key Features:

• MegaCrimp technology with patented "C" insert for concentric crimping and weep-free seals
• Full-Torque Nut design prevents cracking from over-torqueing and minimizes leaks
• "Bite-the-wire" design ensures superior coupling and hose retention
• Tested to one million impulse cycles for proven durability
• Compatible with all Gates wire-braid hydraulic hoses
• Steel construction for maximum strength

Specifications:

• Hose Inner Diameter: 3/4 inch (12 dash size)
• Thread Size: 1-1/16-12 JIC 37° flare female

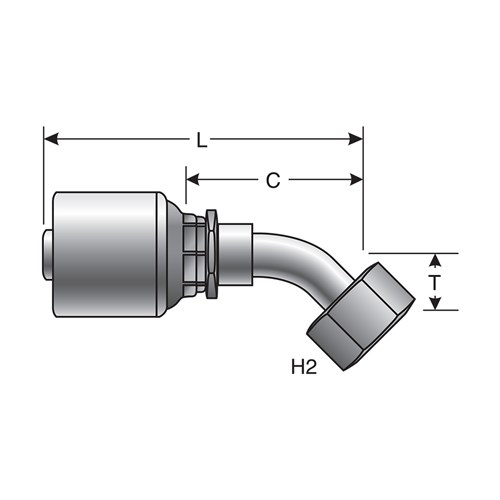

• Overall Length: 5.09 inches
• Cutoff Length: 3.08 inches
• Drop Height: 0.83 inches
• Nut Hex Size: 32mm
• Angle: 45 degrees

The MegaCrimp coupling family simplifies inventory management by allowing one coupling size to accommodate multiple hose outside diameters on both one-wire and two-wire braid constructions. The Full-Torque Nut transfers input torque to clamp-load more consistently than traditional staked nut fittings, providing superior leak resistance in demanding hydraulic applications.
