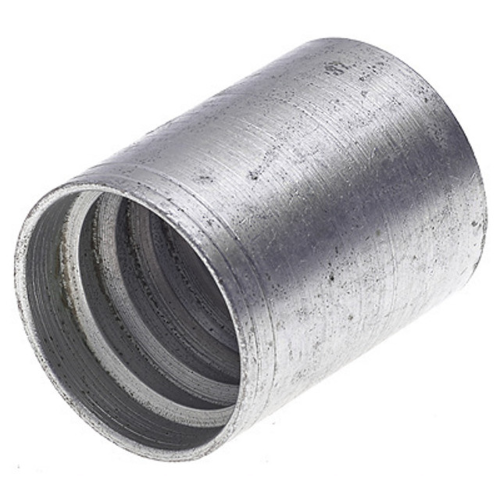

Gates G20995-0408 GlobalSpiral Hydraulic Ferrule for Hose - 4-Spiral 1/2 Inch

The Gates G20995-0408 (8GS1F-4) is a GlobalSpiral hydraulic ferrule specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. This 1/2 inch inside diameter ferrule measures 1-7/16 inches in length and is constructed from durable steel with environmentally-friendly TuffCoat plating.

Key Features:

• Compatible with all Gates MegaSys four- and six-spiral wire hose up to 6000 psi
• Can be crimped on Gates wire-braid hoses when used with 2-wire ferrules
• Innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system
• "Bite-the-wire" crimp for improved coupling retention
• Tested to an industry-leading 1,000,000 impulse cycles
• +250 degree Fahrenheit temperature capability for longer assembly life
• TuffCoat plating provides 347% better corrosion resistance than the SAE Standard

The GlobalSpiral no-skive design eliminates the time-consuming skiving process, allowing for faster assembly and reduced labor costs while minimizing contamination risks in your fluid power system. This ferrule fitting is part of the Gates GlobalSpiral coupling system, designed for demanding hydraulic applications requiring maximum reliability and performance.
