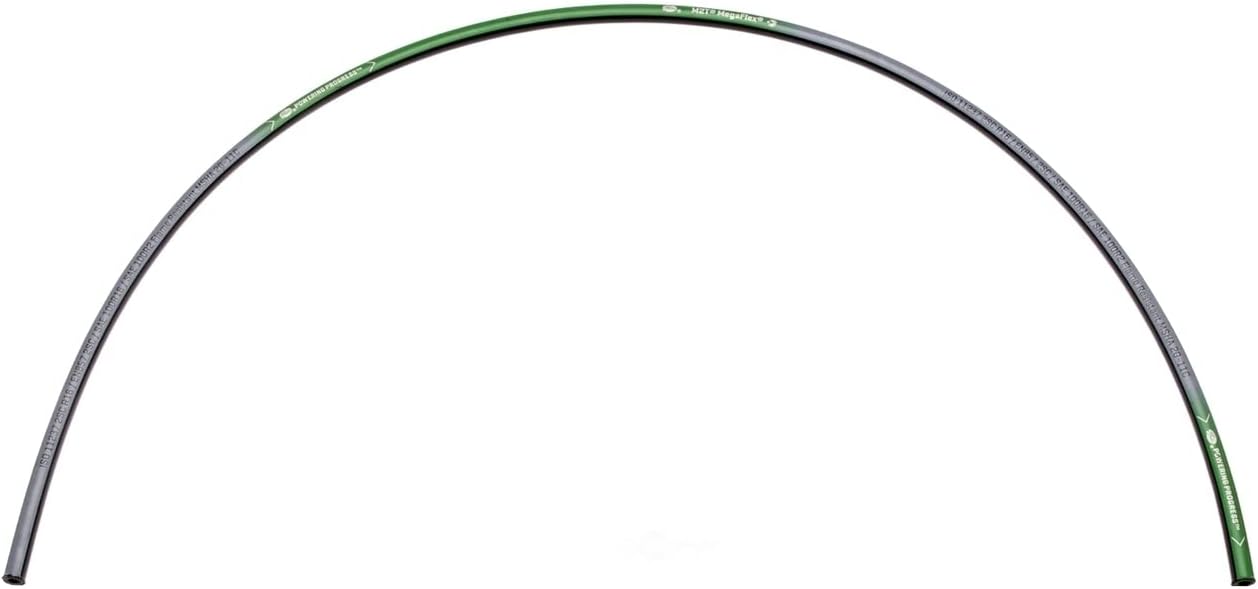

Gates 85605 M2T MegaFlex 2-Wire Braid Hydraulic Hose 1 Inch ID 50 Foot

The Gates 85605 M2T MegaFlex 2-Wire Braid Hydraulic Hose is engineered for high-pressure hydraulic oil line applications requiring superior performance and durability. This SAE 100R16 compliant hose features a 1-inch inside diameter and comes in a convenient 50-foot length, making it ideal for heavy-duty hydraulic systems in industrial, mobile, and construction equipment.

Advanced Design Features:

• Nitrile Type C inner tube provides excellent oil resistance and durability
• Two braids of high-tensile steel wire reinforcement for maximum strength
• Black synthetic rubber cover offers superior oil, abrasion, and weather resistance
• Significantly tighter bend radius (4.5 inches) compared to competitive R16 hoses for easier routing in confined spaces
• Smaller exterior dimensions (1.38-inch OD) for improved installation flexibility
• MegaTuff cover lasts up to 300 times longer than standard hose in abrasion testing per ISO 6945

Performance Specifications:

• Working pressure: 2,500 PSI
• Minimum burst pressure: 10,000 PSI
• Temperature range: -40°F to +212°F (-40°C to +100°C)
• Tested to industry-leading 600,000 impulse cycles
• Meets MSHA 2G flame resistance acceptance designation

Fluid Compatibility: Compatible with petroleum-based hydraulic fluids as well as biodegradable hydraulic fluids including polyolesters, polyglycols, and vegetable oils, making it suitable for modern environmentally-conscious hydraulic systems.

Recommended Couplings: For use with Gates GlobalSpiral Couplings (G20 and G22 Series), MegaCrimp Couplings (G25 Series), Stainless Steel Braid Couplings (G17 Series), and Stainless Steel Spiral Couplings (G18 Series).
