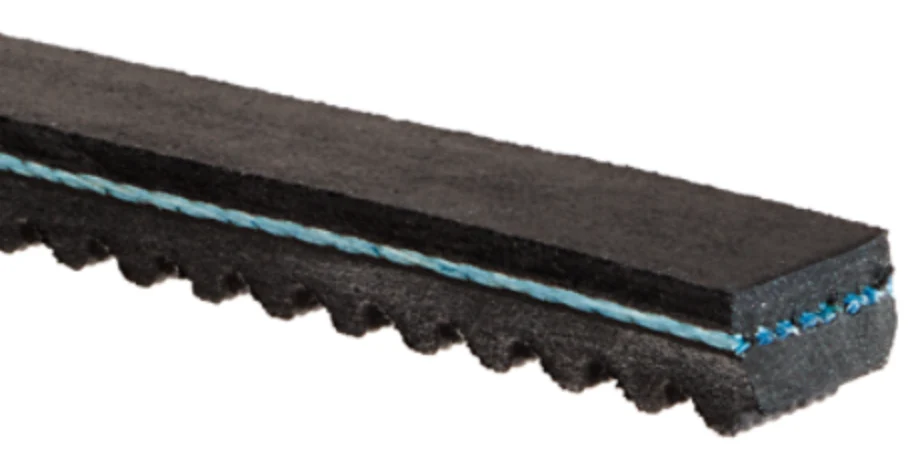

Gates 5VX730 Super HC Molded Notch V-Belt 5/8" x 73"

Manufacturer

Part Number

5VX730
Sale Price

$45.38

1 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Gates 5VX730 Super HC Molded Notch V-Belt is a premium heavy-duty power transmission belt engineered for high horsepower applications in space-constrained industrial drives. This narrow section cogged belt delivers superior performance compared to classical V-belts, transmitting up to three times the horsepower in the same drive space.

Key Specifications:

  • Belt Section: 5VX (narrow section)
  • Top Width: 5/8 inch
  • Outside Length: 73 inches
  • Thickness: 35/64 inch (17/32 inch)
  • Minimum Pulley Diameter: 7.958 inches
  • Temperature Range: -70°F to +250°F (-57°C to +121°C)

Advanced Construction Features:

  • Molded Notch Design: Precision-molded notches reduce bending stress, improve flexibility around smaller pulleys, and enhance heat dissipation for quieter operation and extended belt life
  • Flex-Bonded Polyester Cords: Tensile members are vulcanized as one solid unit, providing exceptional resistance to tensile forces, fatigue, and shock loads while ensuring equal load distribution
  • Patented Flex-Weave Cover: Advanced fabric construction protects the belt core from oil, contaminants, dirt, and heat for maximum durability
  • EPDM Construction: Patented ethylene elastomeric compound resists heat, ozone, and sunlight while maintaining flexibility across extreme temperature ranges
  • Precision-Ground Sidewalls: Uniform wedging action ensures proper fit in pulley grooves for even wear and consistent power transmission

Performance Benefits:

  • Optimized for high-speed applications, high speed ratios, and small pulley diameter drives
  • Smoother, quieter operation with reduced slippage and belt wear
  • Compact design ideal for space-constrained installations
  • Meets ARPM/RMA IP-3-2 oil and heat resistance standards
  • Meets ARPM/RMA IP-3-3 static conductivity requirements
  • Increased transmission efficiency for economical drive design

The Gates Super HC Molded Notch series is highly recommended for all industrial heavy-duty, narrow section V-belt applications where reliability and performance are critical.

Products specifications

Outside Circumference (in)

73

Outside Circumference (mm)

1854

Section

5VX

Top Width (in)

.62

Top Width (mm)

16

Outside Circumference (frac. in.)

73

Top Width (frac. in.)

5/8
