Wiseco K395X130 Professional Series 2618 Forged Piston Set 4.130 Bore Chevy LS

(1998-2002, 2010-2014 Chevrolet Camaro; 1997-2013 Chevrolet Corvette; 2006-2008 Chevrolet Trailblazer; 2005-2006 Chevrolet SSR + 5 more models)

Manufacturer

Part Number

K395X130
Black Friday Price

$987.99

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

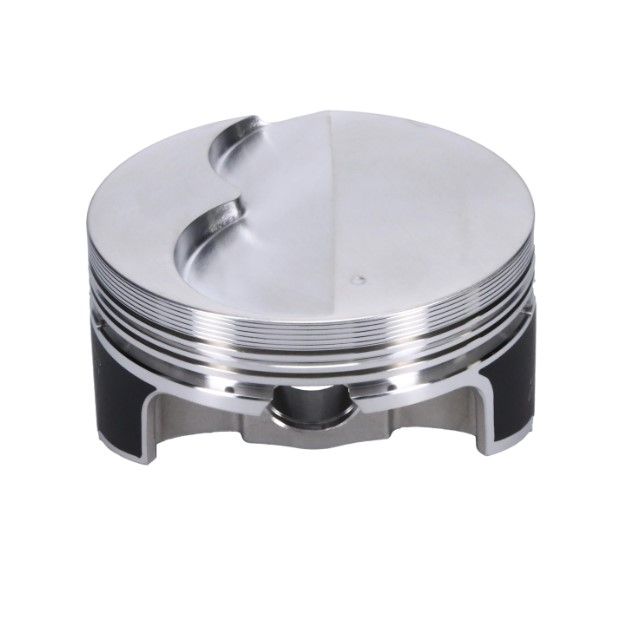

2618 Alloy Forged Pistons
Stroker/Nitrous/Turbo Applications
Fits 4.250 Stroke
Fits 9.700/9.715 Deck
Set of 8 Pistons
Recommended RingSet: 4132GFX
Rings Included
Includes Pins: S643
Must use w/ K1 Rod

World renowned for their work building race winning pistons, Wiseco utilizes experience from a diverse background of the most sophisticated engines in such venues as Formula 1, Indy Racing League (IRL), NHRA Pro Stock, Moto GP, AMA Superbike, AMA Motocross and Supercross to design and manufacture the highest technology pistons available.

Features

  • Valve Pocket designs that allow maximum flow around valve, also allowing oversized valves and high lift cams to be utilized.
  • Piston Crown shapes designed to promote maximum Intake Charge efficiency through scavenging mixture Cross Flow during intake and
    exhaust valve overlap. More fuel and air equals more horsepower!
  • Piston Domes designed for optimal quench during the compression/ combustion cycle, resulting in resistance to detonation and preignition.
    The end result is longer engine life and increased horsepower potential.
  • Precision machined ring grooves with proper orifice/accumulator volume feature calculated groove root diameters and axial widths, providing
    excellent surface finish and flatness, maximum ring seal and minimized blow-by and oil consumption.
  • World class, ISO Certified, forging facility that utilizes the latest technologies Featuring complex forged shapes, advanced materials, and feature-aligned grain flow technology.
  • Complex Piston skirt profiles that reduce power robbing friction, yet promote stability in the bore for optimum ring seal.

ArmorGlide Skirt Coating
Wisecos new ArmorGlide skirt coating is the result of testing, development, and benchmarking through our in-house dyno program. The outcome minimized friction, maximum horsepower, and improved wear resistance.

Not only is ArmorGlide a high-tech lubricant that reduces friction, but it also allows the piston to be fitted tighter within the bore than a non-coated piston. Better ring seal reduces noise from piston rock. ArmorGlide is being applied to selected pistons.

Products specifications

Fits

1998-2002, 2010-2014 Chevrolet Camaro; 1997-2013 Chevrolet Corvette; 2006-2008 Chevrolet Trailblazer; 2005-2006 Chevrolet SSR; 2004-2006 Pontiac GTO; 1998-2002 Pontiac Firebird; 2009 Pontiac G8; 2004-2007, 2009-2012 Cadillac CTS; 1994 Alfa Romeo 164

Comp Height

1.115

Comp Ratio @ 65CC

11.8:1

Comp Ratio @ 67CC

11.2:1

Comp Ratio @ 68CC

11.1:1

Comp Ratio @ 70CC

11.2:1

Comp Ratio @ 72cc

11:1

Dome Volume

FT -8

Gram Weight

TBA

Rod

6.450 (K1)

Stroke

4.375

Piston Quantity

8

Rod Length

6.125

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Engine

LS

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.130

Compression Height

1.115

Industry

Automotive

Product Market

Domestic

Engine Type

ICE

Oil Ring Thickness

3.0

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Second Compression Ring Thickness

0.047

Top Compression Ring Thickness

0.047

EBAY Category ID

33623

Engine - Web

LS

Make - Web

Chevrolet

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Piston Volume

-8.46

Title

Wiseco - Chevrolet, LS, 4.130 in. Bore, Piston Set of 8

Title - Web

Professional Chevy LS Piston Set of 8 - 4.130 in. Bore - 1.115 .in CH, -8.46 CC
