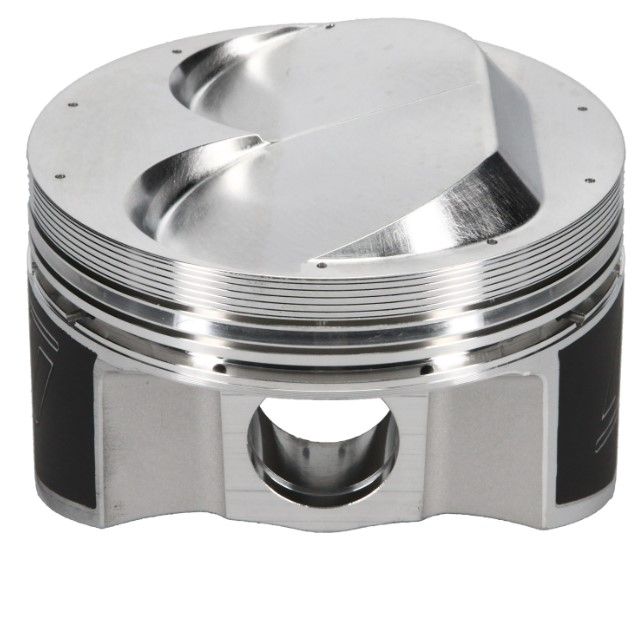

Wiseco K0011B4 Professional Series Forged Piston Set Bore Chrysler Nitrous Dome - 4.040 340/360

(Dodge Durango 1998-2003, Ram 2500 1994-2002, Ram 1500 1994-2003, Dakota 1998-2003, Challenger 1970-74, Ram 3500 1994-2002, Dart 1968-76 + 66 more models)

Manufacturer

Part Number

K0011B4
Sale Price

$1,032.99

Estimated ship date Saturday, November 28

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details
2618 Alloy Forged Pistons
340/360 Nitrous Dome
Fits 4.000 Stroke
Set of 8 Pistons
Recommended RingSet: W70008-4040-5
Rings Sold Separate
Includes Pins: S547

World renowned for their work building race winning pistons, Wiseco utilizes experience from a diverse background of the most sophisticated engines in such venues as Formula 1, Indy Racing League (IRL), NHRA Pro Stock, Moto GP, AMA Superbike, AMA Motocross and Supercross to design and manufacture the highest technology pistons available.

Features

  • Valve Pocket designs that allow maximum flow around valve, also allowing oversized valves and high lift cams to be utilized.
  • Piston Crown shapes designed to promote maximum Intake Charge efficiency through scavenging mixture Cross Flow during intake and
    exhaust valve overlap. More fuel and air equals more horsepower!
  • Piston Domes designed for optimal quench during the compression/ combustion cycle, resulting in resistance to detonation and preignition.
    The end result is longer engine life and increased horsepower potential.
  • Precision machined ring grooves with proper orifice/accumulator volume feature calculated groove root diameters and axial widths, providing
    excellent surface finish and flatness, maximum ring seal and minimized blow-by and oil consumption.
  • World class, ISO Certified, forging facility that utilizes the latest technologies Featuring complex forged shapes, advanced materials, and feature-aligned grain flow technology.
  • Complex Piston skirt profiles that reduce power robbing friction, yet promote stability in the bore for optimum ring seal.

ArmorGlide Skirt Coating
Wisecos new ArmorGlide skirt coating is the result of testing, development, and benchmarking through our in-house dyno program. The outcome minimized friction, maximum horsepower, and improved wear resistance.

Not only is ArmorGlide a high-tech lubricant that reduces friction, but it also allows the piston to be fitted tighter within the bore than a non-coated piston. Better ring seal reduces noise from piston rock. ArmorGlide is being applied to selected pistons.

Products specifications

Fits

Dodge Durango 1998-2003, Ram 2500 1994-2002, Ram 1500 1994-2003, Dakota 1998-2003, Challenger 1970-74, Ram 3500 1994-2002, Dart 1968-76, Ramcharger 1974-93, Magnum 1978-79, D150 1977-93, Coronet 1970-76, D250 1981-93, D100 1975-88 + 60 more models

Bore

4.035

Comp Height

1.455

Comp Ratio @ 65CC

13.7:1

Comp Ratio @ 68CC

13.2:1

Dome Volume

8

Gram Weight

543

Rod

6.123

Stroke

4

Piston Quantity

8

Rod Length

6.123

Wrist Pin Style

Floating

Make

Chrysler

Piston Material

2618

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.040

Compression Height

1.460

Industry

Automotive

Product Market

Domestic

Engine Type

ICE

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston Set

Forging Type

Slab Side

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Piston Volume

8.00

EBAY Category ID

33623

Make - Web

Chrysler

Ring Set Included

No

Skirt Coating

Yes

Wrist Pin Included

Yes

Engine - Web

Small Block

Engine

340

Wrist Pin Outer Diameter

0.984

Title

Wiseco - Chrysler, 340, 4.040 in. Bore, Piston Set of 8

Title - Web

Professional Chrysler 340 Piston Set of 8 - 4.040 in. Bore - 1.460 .in CH, 8.00 CC
