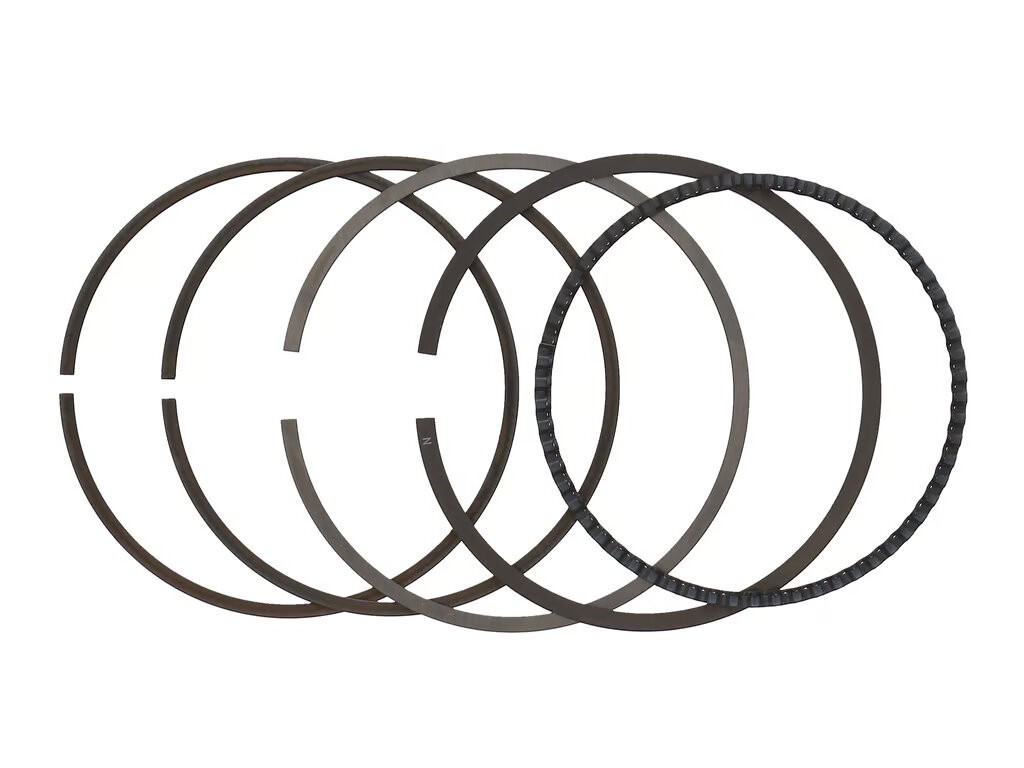

Wiseco 9075XX XX-Series Piston Ring Set Bore - 90.75mm 1.00mm/1.20mm/2.80mm

Manufacturer

Part Number

9075XX
Black Friday Price

$33.99

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco 9075XX is a replacement piston ring set engineered specifically for Wiseco pistons with a 90.75mm (3.573 in.) bore diameter. This three-ring set is built to Wiseco's exact specifications to deliver reliable sealing, efficient compression, and precise oil control for high-performance and race applications.

Ring Set Specifications:

  • Bore Diameter: 90.75 mm (3.573 in.)
  • Top Compression Ring: 1.00 mm thick — stainless steel, gas-nitrided, barrel-faced
  • Second Compression Ring: 1.20 mm thick — cast iron, phosphate-coated, taper-faced with under-hook (napier) style
  • Oil Control Ring: 2.80 mm thick — 3-piece assembly with gas-nitrided rails and stainless steel flex-vent spacer
  • File Fit: No (pre-gapped)
  • Includes: One ring set for one piston

Each ring in the set plays a critical role in engine performance. The gas-nitrided stainless steel top ring provides exceptional wear resistance and sealing under high combustion pressure. The phosphate-coated cast iron second ring aids in oil scraping and additional compression sealing, while the 3-piece oil ring assembly ensures thorough oil control for a clean combustion chamber.

Wiseco XX-series rings are designed exclusively for use with Wiseco pistons and are not interchangeable with other Wiseco ring types. This ring set is a direct replacement for engines originally built with Wiseco pistons requiring the XX ring specification.

Products specifications

Bore

90.75mm

Size

1.0-1.2-2.8mm

File Fit

No

Gapless

No

Second Ring Facing Material

Phosphate coated

Second Ring Material

Cast iron

Top Ring Facing Material

Gas nitrided

Top Ring Material

Stainless steel

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Oil Ring Thickness

2.80

Third Ring Material

Stainless Steel

Industry

Automotive

Second Compression Ring Thickness

1.20

Top Compression Ring Thickness

1.00

Engine Type

ICE

Product Type

Engine Piston Ring Set

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Bore Diameter

90.75

Title

Piston Ring Set - 90.75 mm Bore - 1.00 mm Top / 1.20 mm 2nd / 2.80 mm Oil

Title - Web

Piston Ring Set - 90.75 mm Bore - 1.00 mm Top / 1.20 mm 2nd / 2.80 mm Oil
