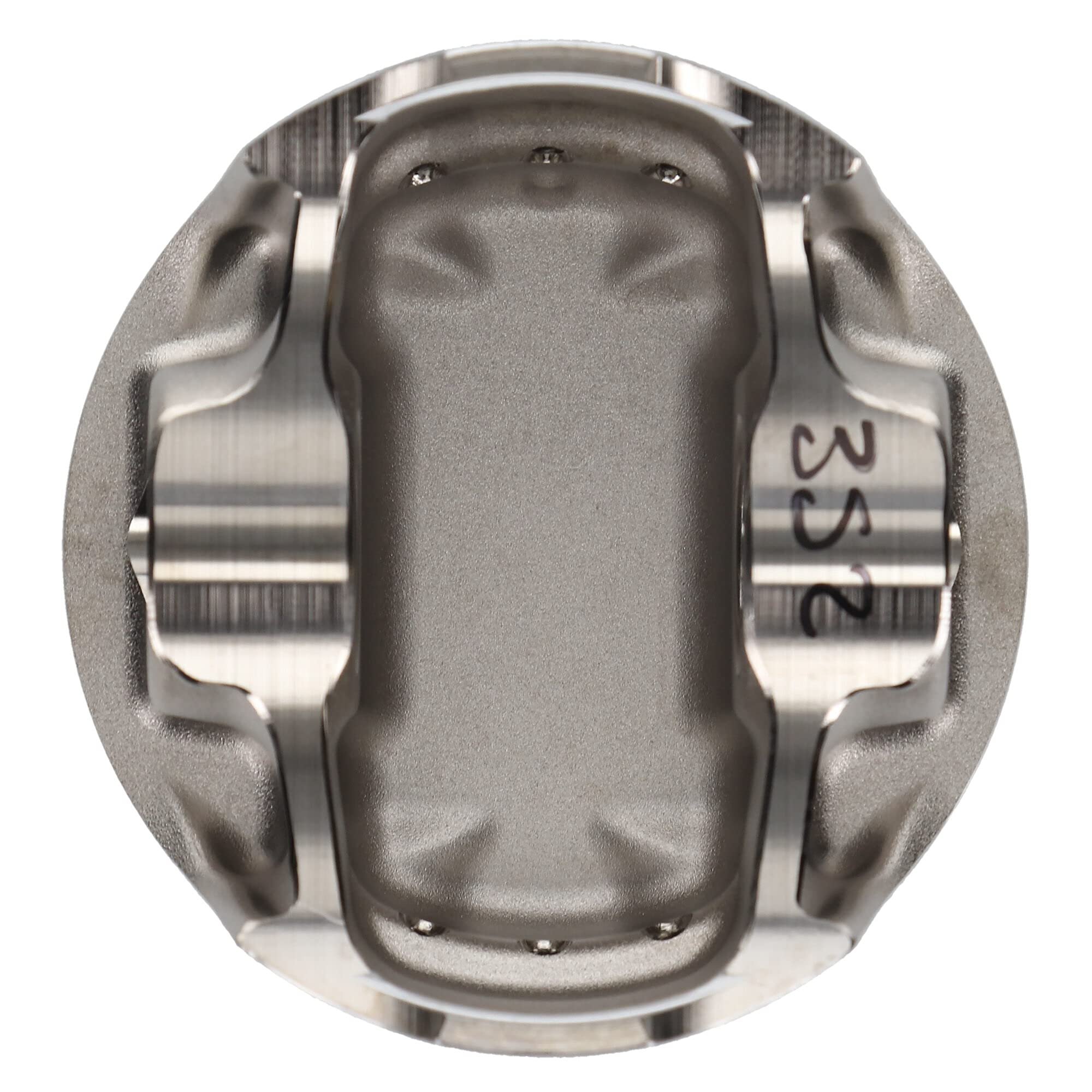

Wiseco 6626M87 Pro Tru Sport Compact Forged Piston 87mm Bore 4G63

(Mitsubishi Lancer 1996-2006, Eclipse 1993-2005, Outlander 2003, Mighty Max 1993-96, Galant 1994-2005, Montero Sport 1997-99 + 3 more models)

Manufacturer

Part Number

6626M87
Black Friday Price

$264.99

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco 6626M87 is a Pro Tru Sport Compact Series forged replacement piston designed for the Mitsubishi 4G63 engine, featuring an 87.00 mm bore, 1.378 in. compression height, and a 0.8661 in. pin diameter. This individual piston is engineered for performance engine builders seeking a proven forged upgrade over OEM cast pistons.

Key Features:

  • Forged and machined in the USA by skilled craftsmen in Ohio using state-of-the-art forging presses and CNC equipment
  • Dedicated forgings specific to the final piston shape for superior strength and reduced weight compared to industry standards
  • Plasma moly ring package included — 1/16, 1/16, 3/16 pre-gapped rings provide excellent combustion seal, friction reduction, and long service life
  • Heavy-duty tool steel wrist pin included — 0.225 in. wall thickness for demanding high-performance applications
  • Replacement/individual piston — sold as a single unit for targeted engine repairs or custom builds
  • Recommended ring set: 8700XX
  • Rings and pin included

Part of Wiseco's Sport Compact Pro Tru line, the 6626M87 delivers exceptional value in a forged piston built to withstand the rigors of forced induction and high-revving sport compact engines. Engine builders can select from a variety of piston volumes to dial in the exact compression ratio needed for their specific application.

Products specifications

Fits

Mitsubishi Lancer 1996-2006, Eclipse 1993-2005, Outlander 2003, Mighty Max 1993-96, Galant 1994-2005, Montero Sport 1997-99; Buick Electra 1973-76; Eagle Talon 1993-98; Plymouth Laser 1993-94

Bore

87mm

Comp Height

35

Comp Ratio

9.0:1

Dome Volume

-14

Gram Weight

TBA

Rod

150

Stroke

88

Piston Quantity

1

Wrist Pin Style

Floating

Make

Mitsubishi

Piston Material

2618

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

87.00

Compression Height

1.378

Industry

Automotive

Product Market

Sport Compact

Engine Type

ICE

Engine

4G63

Oil Ring Thickness

3

Product Series

Professional

Product Type

Engine Piston

Wrist Pin Outer Diameter

0.8661

Forging Type

FLAT

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Piston Volume

-14.00

Second Compression Ring Thickness

1.2

Top Compression Ring Thickness

1

EBAY Category ID

33623

Engine - Web

4G63

Make - Web

Mitsubishi

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Wrist Pin Material

9310

Title

Wiseco - Mitsubishi, 4G63, 87.00 mm Bore, Piston

Title - Web

Professional Mitsubishi 4G63 Piston - 87.00 mm Bore - 1.378 .in CH, -14.00 CC
