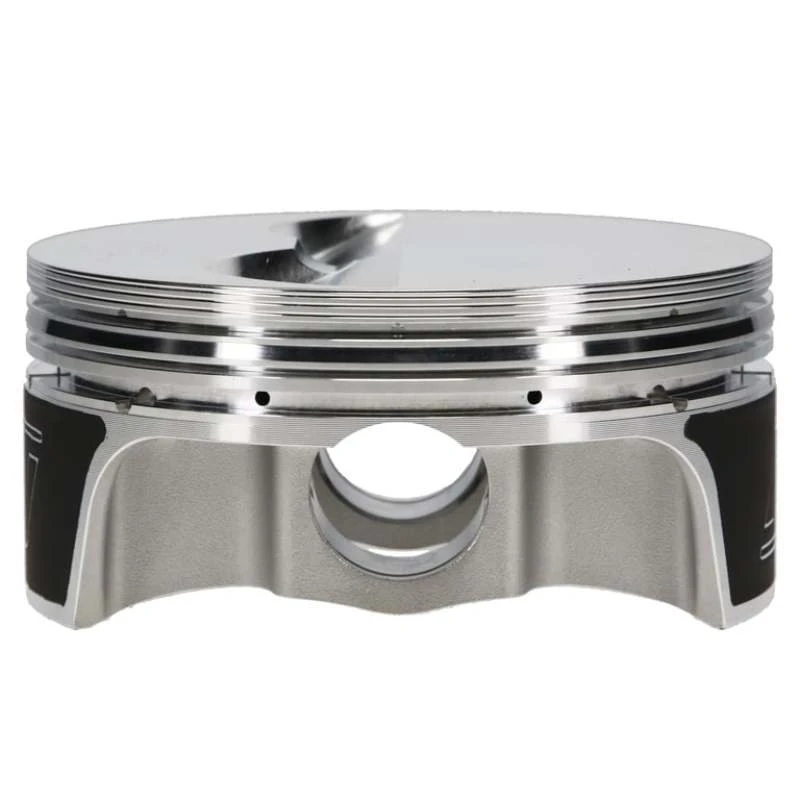

Wiseco 60001RX2 Professional Series Max 23 SBC Forged Piston 2618 Alloy Individual Right

(GMC G2500 1987-95, K1500 1988-99, C1500 1988-99, K2500 1988-2000, Jimmy 1987-91, C3500 1988-2000, K2500 Suburban 1992-99, K3500 1988-2000 + 89 more models)

Manufacturer

Part Number

60001RX2
Black Friday Price

$173.99

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco 60001RX2 is a Professional Series Max 23 forged replacement piston engineered for serious small block Chevy race builds. Forged from high-grade 2618 aluminum alloy, this strutted, high-strength piston is built to handle the extreme cylinder pressures and temperatures of heavy to severe-duty race applications. Designed for engines with a 9.750-inch deck height, this is an individual right-side replacement piston — ideal for refreshing a single cylinder or completing a custom build.

Key Specifications:

  • Series: Professional Series — Max 23
  • Material: 2618 Alloy Forged
  • Bore: 4.030 in.
  • Compression Height: 1.125 in.
  • Rod Length: 6.125 in. / 6.000 in.
  • Stroke: 3.480 in. / 3.750 in.
  • Dome Volume: -5.7cc (Flat Top / Slight Dish)
  • Deck Height: 9.750 in.
  • Piston Position: Individual / Replacement — Right
  • Includes Wrist Pin: S643
  • Rings Included
  • Recommended Ring Set: 4022GFX

Professional Series Features:

  • Strutted skirt forging — delivers maximum strength while keeping reciprocating weight low
  • ArmorGlide skirt coating — reduces operating friction, minimizes cylinder wall wear, and allows tighter bore clearance for improved ring seal and quieter operation
  • Precision-machined valve pockets — engineered to maximize airflow around the valve, and to accommodate oversized valves and high-lift camshafts
  • Optimized crown geometry — promotes efficient intake charge scavenging and cross-flow during valve overlap for maximum power potential
  • Dome designed for optimal quench — resists detonation and pre-ignition during the compression/combustion cycle for longer engine life
  • Precision ring grooves — calculated groove root diameters and axial widths deliver excellent surface finish, maximum ring seal, and minimized blow-by and oil consumption
  • ISO-certified forging facility — complex forged shapes with feature-aligned grain flow technology for unmatched structural integrity

The Professional Series is Wiseco's top-tier shelf piston line, designed for heavy to severe-duty race builds capable of supporting 1,500+ horsepower. Engineered and forged in the USA, these pistons are the choice of professional engine builders competing at the highest levels of motorsport.

Products specifications

Fits

GMC G2500 1987-95, K1500 1988-99, C1500 1988-99, K2500 1988-2000, Jimmy 1987-91, C3500 1988-2000, K2500 Suburban 1992-99, K3500 1988-2000, C2500 1988-2000, K1500 Suburban 1992-99, C1500 Suburban 1992-99, P3500 1987-99, G3500 1987-96 + 84 more models

Comp Height

1.125

Comp Ratio @ 58CC

10.8 11.5:1

Comp Ratio @ 62CC

10.3 11.0:1

Comp Ratio @ 67CC

9.8 10.4:1

Comp Ratio @ 76CC

8.9 9.5:1

Dome Volume

-5.7

Gram Weight

380

Rod

6.125 / 6.000

Stroke

3.480 / 3.750

Piston Quantity

1

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.020

Industry

Automotive

Product Market

Domestic

Engine

Small Block

Engine Type

ICE

Oil Ring Thickness

3.0

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Second Compression Ring Thickness

0.047

Top Compression Ring Thickness

0.047

EBAY Category ID

33623

Engine - Web

Small Block Gen I

Make - Web

Chevrolet

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Title

Wiseco - Chevrolet, Small Block, 4.020 in. Bore, Piston

Compression Height

1.1255

Piston Volume

-5.70

Title - Web

Professional Chevy Small Block Piston - 4.020 in. Bore - 1.1255 .in CH, -5.70 CC
