Fuelab 20106 Velocity Series 200 Diesel Lift Pump Performance Install Kit

The Fuelab 20106 Velocity Series 200 Performance Install Kit provides everything needed for a complete, professional-grade installation of the Fuelab 30303 Velocity Series 200 diesel lift pump. Designed specifically for Dodge Cummins diesel applications, this comprehensive kit includes all fuel-rated hose, push-lok fittings, adapters, clamps, a draw tube, extended wiring harness, and an installation manual — eliminating guesswork and the need to source components separately.

The kit features Fuelab's FL500 Superflex fuel-rated line for the supply side and FL375 Superflex line for the return, paired with a full complement of steel ORB push-lok adapters to ensure leak-free, performance-grade connections. An extended pump harness (EPH17-3) with convoluted plastic wire wrap provides a clean, durable wiring solution, while the included inlet straining filter and draw tube kit complete the plumbing setup.

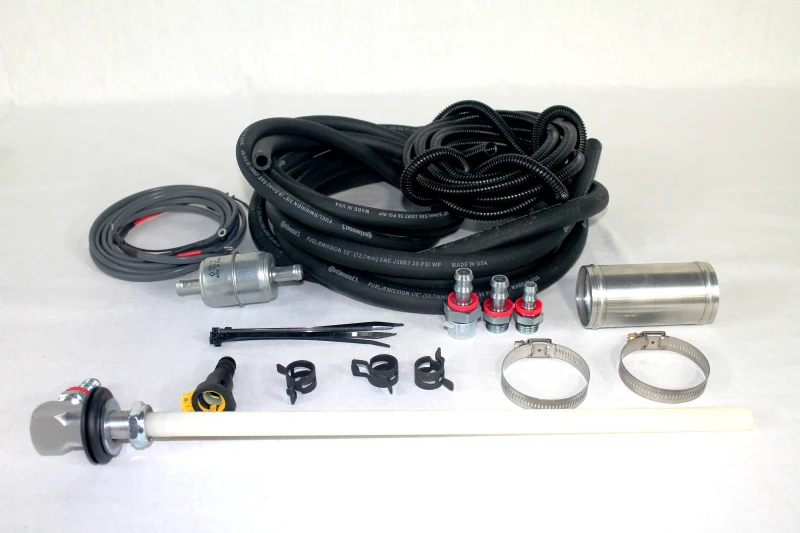

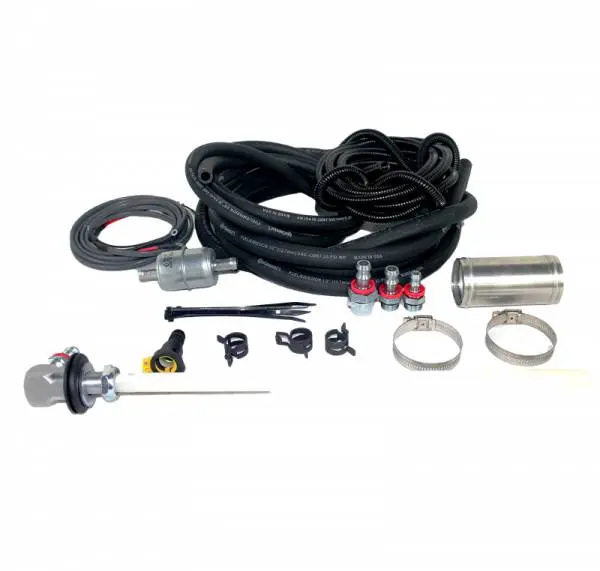

Kit Includes:

• FL500 Superflex Fuel Line, 1/2" — 15 ft
• FL375 Superflex Fuel Line, 3/8" — 7 ft
• PORB108 — 10 ORB x 1/2" Push-Lok Adapter, Steel
• PORB88 — 08 ORB x 1/2" Push-Lok Adapter, Steel
• PORB86 — 08 ORB x 3/8" Push-Lok Adapter, Steel
• M1208 — 12mm x 08 MJIC Adapter with Seal
• POE8 — Push-Lok Elbow, 1/2"
• QC375 — 3/8" Quick Connect for Return Line
• WCL500 — Clamp for Inlet Straining Filter (x2)
• WCL375 — Clamp for Return Connection
• CBT6 — Nylon Cable Ties, 5" (x6)
• 551770 — Inlet Straining Filter
• EPH17-3 — Extended Pump Harness
• DTK2 — Draw Tube Kit, 1/2" Push-Lok
• CWRAP — Convoluted Plastic Wire Harness Wrap, 11 ft
• Installation Manual

This kit is also designed to support replacement of OEM lift pump systems originally installed on the vehicle. A complete install manual is included; refer to the instructions packaged with the Fuelab Velocity Series 200 Fuel System (Model 30303) to complete the full installation. Note: This product is not CARB compliant and is not for sale in California.
