ACL Bearings 5M1237H-.025 Race Series Tri-Metal Main Bearings

Manufacturer

Part Number

5M1237H-.025
Sale Price

$106.08

In Stock (6)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

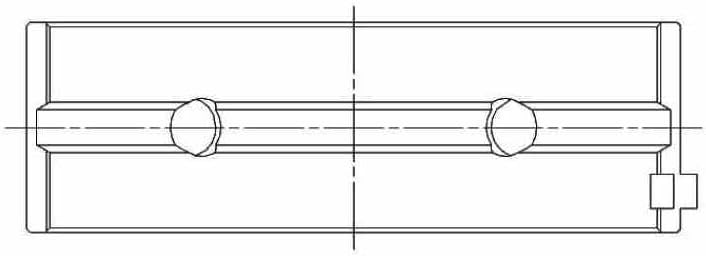

Product Details

ACL Race Series Main Bearings deliver professional-grade performance engineered for high-RPM racing applications. This tri-metal bearing set includes both upper and lower halves, combining advanced metallurgy with precision manufacturing to withstand the extreme demands of performance engines.

Race-Proven Engineering Features:

  • High-strength overlay plate with optimized thickness for superior fatigue resistance under extreme loads
  • Hardened steel backing provides enhanced support for the bearing lining and ensures secure retention in the housing
  • Increased crush design improves bearing retention and stability during high-RPM operation
  • Flash plating elimination on bearing backs maximizes heat transfer and improves grip between bearing and housing
  • Increased eccentricity compensates for bore distortion at high RPM and promotes optimal hydrodynamic oil film formation
  • 3/4 groove design optimizes load-carrying surface area while maintaining proper oil flow to connecting rod bearings
  • Tight wall tolerances ensure consistent bearing clearances for reliable performance
  • Enlarged ID chamfers accommodate large fillet radii found on performance crankshafts

ACL's tri-metal construction combines the unique properties of multiple materials to deliver the durability, load capacity, and wear resistance that racing engines demand. These bearings are precision-manufactured to help you achieve consistent clearances and reliable performance in high-performance 4, 6, and 8-cylinder applications.

Products specifications

Max Overall Length

0.709" (18.00mm)

Max Std Shaft Size

2.0467 " (51.985mm)

Max Std Tunnel Size

2.2054" (56.018mm)

Max Wall at Crown

0.0786" (1.996mm)

Min Std Shaft Size

2.0462 " (51.973mm)

Min Std Tunnel Size

2.2047 " (56.000mm)

Oil Clearance

Standard

Size

.025
