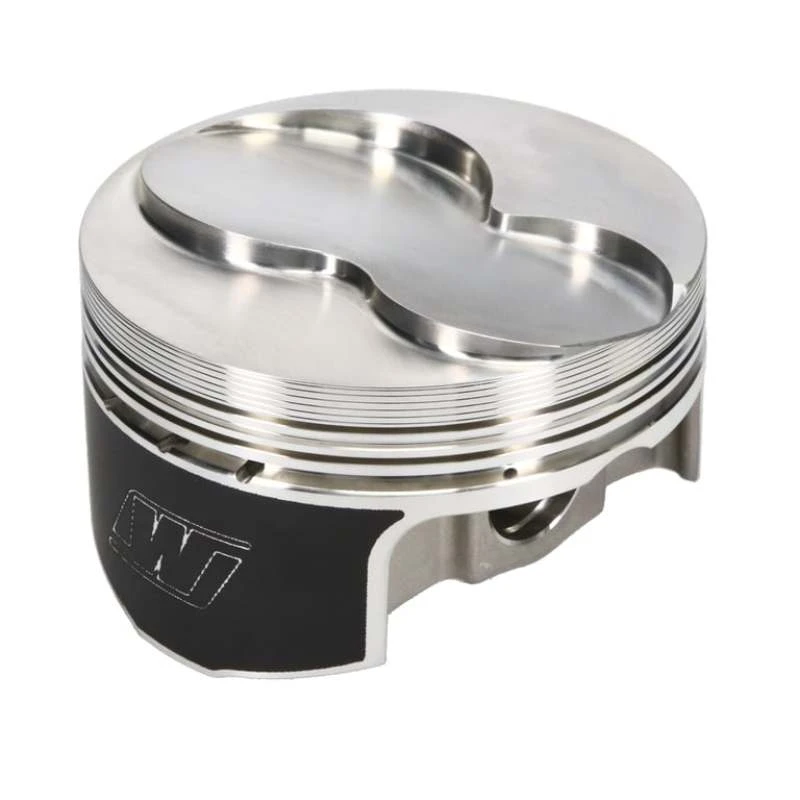

Wiseco 60005RX185 Professional Series Chevy LS Forged Piston -1cc 4.185 in. Bore 1.300 in. Compression Height

(1998-2002, 2010-2014 Chevrolet Camaro; 1997-2013 Chevrolet Corvette; 2006-2008 Chevrolet Trailblazer; 2005-2006 Chevrolet SSR + 5 more models)

Manufacturer

Part Number

60005RX185
Black Friday Price

$168.99

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco 60005RX185 is a Professional Series forged racing piston designed for Chevrolet LS series engines with a 4.185-inch bore. Engineered for heavy to severe-duty performance applications, this shelf-stock piston features a -1cc dish volume, a 1.300-inch compression height, and a 0.927-inch pin diameter — built to handle the rigors of high-horsepower race and street/strip builds.

Key Features:

  • Forged 2618 Aluminum Construction: Engineered, forged, and machined in the USA for superior tensile strength and durability in power adder and racing applications
  • ArmorGlide® Skirt Coating: Proprietary skirt coating delivers seizure resistance, friction reduction, and quieter piston operation while allowing tighter bore fitment than uncoated pistons
  • Optimized Valve Pocket Design: Allows maximum flow around the valve and accommodates oversized valves and high-lift camshafts
  • Complex Skirt Profile: Precision-machined skirt geometry reduces power-robbing friction while maintaining bore stability for optimal ring seal
  • -1cc Dish Volume: Designed for precise compression ratio tuning in Chevy LS platform builds
  • 0.927 in. Pin Diameter: Compatible with standard Wiseco LS wrist pin hardware
  • Shelf Stock Availability: Ready-to-ship single piston for replacement or custom engine builds

Wiseco's Professional Series pistons are the result of racing experience across Formula 1, IRL, NHRA Pro Stock, and other elite motorsports venues. The 60005RX185 delivers the custom-level performance and durability serious engine builders demand, sold as a single piston for precise quantity ordering.

Products specifications

Fits

1998-2002, 2010-2014 Chevrolet Camaro; 1997-2013 Chevrolet Corvette; 2006-2008 Chevrolet Trailblazer; 2005-2006 Chevrolet SSR; 2004-2006 Pontiac GTO; 1998-2002 Pontiac Firebird; 2009 Pontiac G8; 2004-2007, 2009-2012 Cadillac CTS; 1994 Alfa Romeo 164

Bore

4.185

Comp Ratio @ 65CC

11.78:1

Comp Ratio @ 67CC

11.2:1

Comp Ratio @ 68CC

12.3:1

Comp Ratio @ 70CC

14:1

Comp Ratio @ 72cc

11.8:1

Dome Volume

-4

Gram Weight

TBA

Rod

6.098 / 6.125

Stroke

3.622

Piston Quantity

1

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Engine

LS

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.185

Industry

Automotive

Product Market

Domestic

Engine Type

ICE

Oil Ring Thickness

3.0

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Second Compression Ring Thickness

0.047

Top Compression Ring Thickness

0.047

EBAY Category ID

33623

Engine - Web

LS

Make - Web

Chevrolet

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Title

Wiseco - Chevrolet, LS, 4.185 in. Bore, Piston

Compression Height

1.2995

Piston Volume

-1.00

Title - Web

Professional Chevy LS Piston - 4.185 in. Bore - 1.2995 .in CH, -1.00 CC
