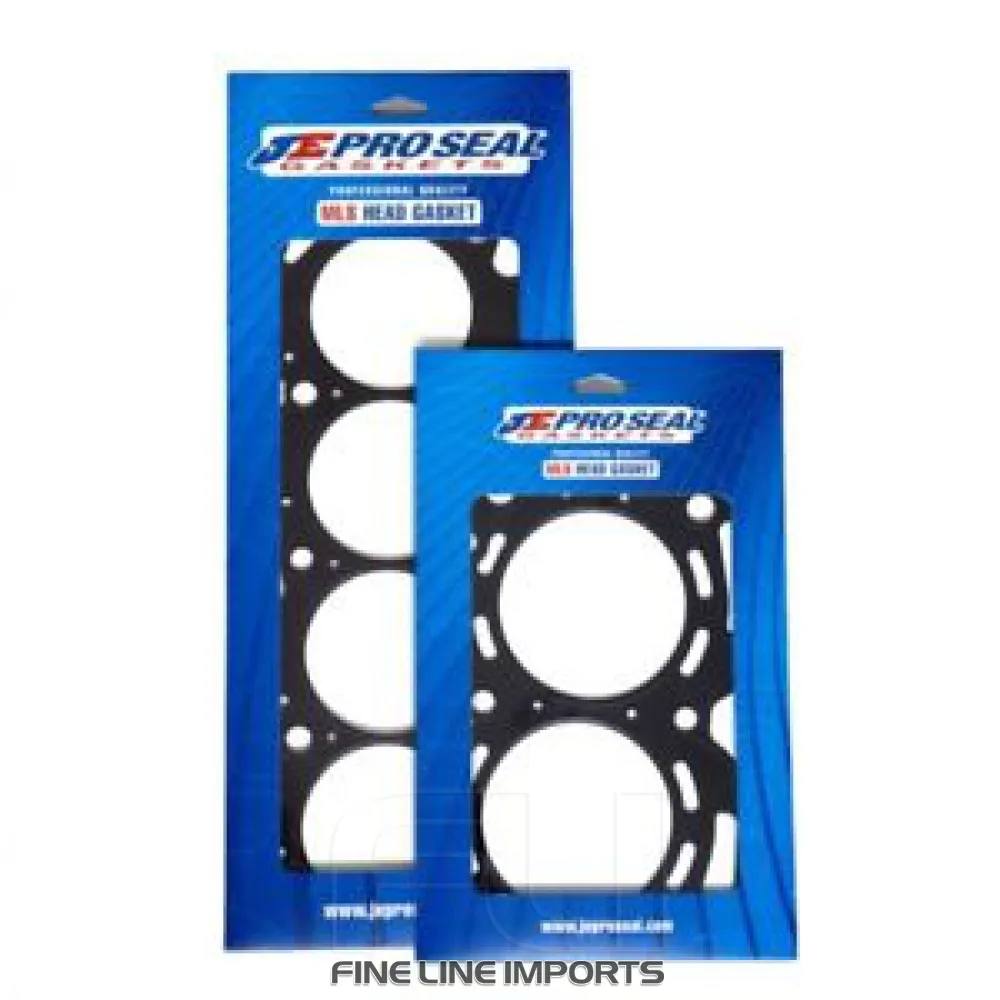

JE Pistons FD1004-039 Pro Seal MLS Head Gasket Ford 2.3L SOHC 3.830in Bore

Manufacturer

Part Number

FD1004-039
Black Friday Price

$190.43

Estimated ship date Wednesday, November 18

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The JE Pistons FD1004-039 Pro Seal MLS Head Gasket is a premium multi-layer steel (MLS) head gasket engineered for the Ford 2.3L SOHC engine. Built with the same race-proven sealing technology trusted by NASCAR, NHRA, and World of Outlaws competitors, this gasket delivers exceptional reliability for high-performance street and track applications alike.

Key Features:

  • Multi-Layer Steel (MLS) Construction — Multiple layers of AISI 304 stainless steel are individually cut and formed using state-of-the-art inline laser cutting, ensuring precise tolerances and consistent quality across every gasket.
  • Proprietary Coating Technology — A full 100% encapsulation coating on all exposed metal surfaces eliminates the need for additional deck surfacing and protects against corrosion, coolant, and combustion gases.
  • Optimized Embossing Formation — Advanced multi-stage embossing technology optimizes the radius at critical bend areas, reducing stress points and improving conformability for superior wet-out (contact area) and a more reliable seal.
  • Stress Stabilization & Tempering — A proprietary heat-treating and tempering process reduces forming-induced stress, increases flexibility and deformation retention, and significantly extends long-term durability.
  • CAD-Engineered Fire Ring — Computer-aided design ensures precise fire ring placement unique to the 3.830-inch bore size, maximizing combustion sealing performance.
  • Gasket Type: MLS (Multi-Layer Steel)
  • Bore Size: 3.830 in. (97.28 mm)
  • Compressed Thickness: 0.039 in. (1.00 mm)
  • Engine Application: Ford 2.3L SOHC (Pinto/Lima)

The JE Pro Seal FD1004-039 is sold individually and is an ideal upgrade for engine builders seeking a durable, race-quality head gasket solution for the Ford 2.3L SOHC platform.

Products specifications

Make

Ford

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Thickness

1.00

Engine

PINTO

Industry

Automotive

Out of Stock Message

Call for Availability

Product Market

Domestic

Engine Type

ICE

Material

Multi Layer Stainless Steel

Category Hierarchy

Cylinder Head Gasket

Gasket Series

MLS

Title

Cylinder Head Gasket, Ford, Pinto

Cylinder Bore Diameter

97.28

Bore Diameter Range Min Max

96.77 - 96.78
