Part number: 592565C-8
Competitor Pricing
Product Details

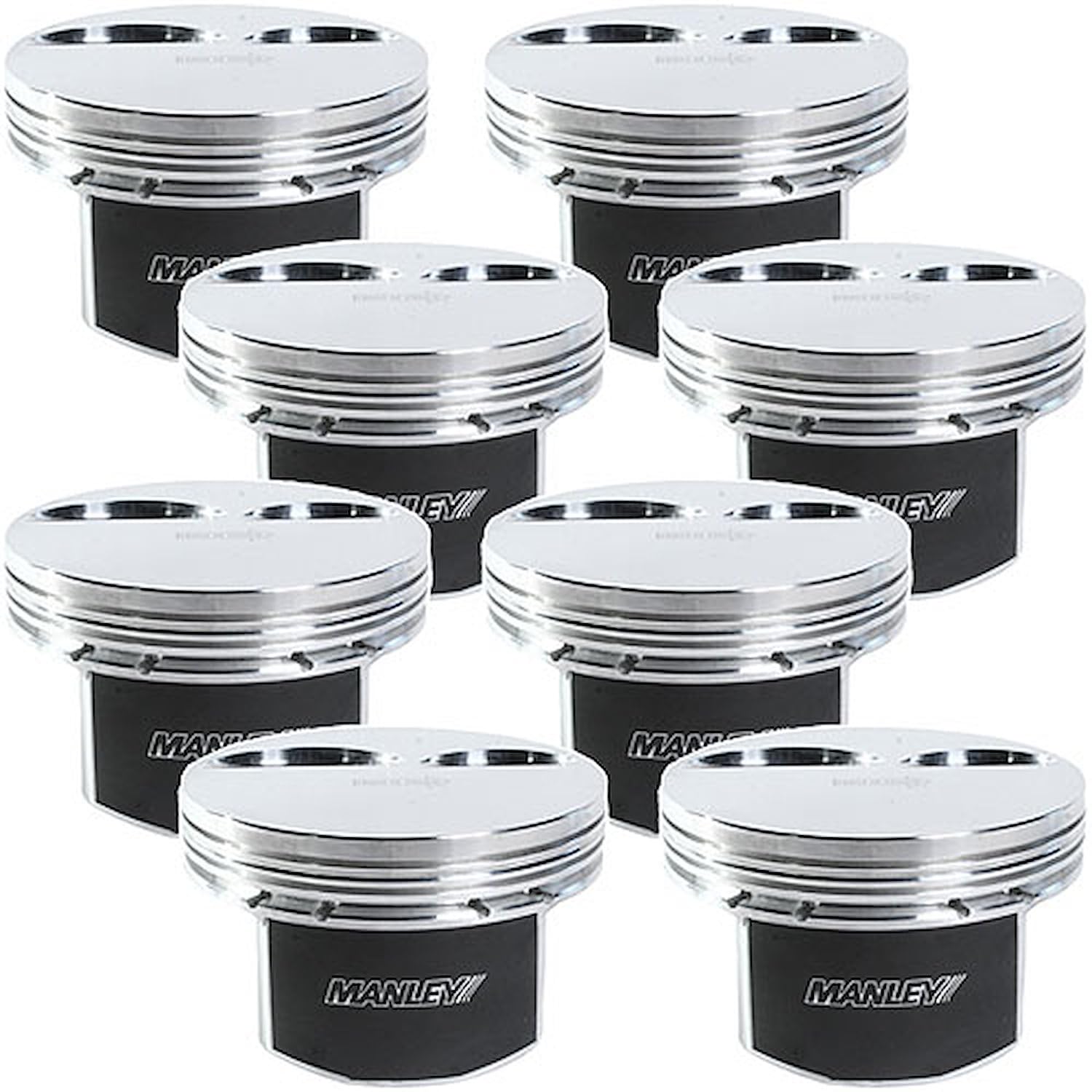

Manley 592565C-8 Platinum Series Pistons
Products specifications
Bore (in) 4.065 in.
Bore (mm) 103.251mm
Calculator Compression Calculator
Compression Distance (in) 1.304 in.
Notes Coated piston skirt.
Pin Diameter (in) 0.927 in.
Piston Head Volume (cc) +4.00cc
Piston Material Forged aluminum
Piston Ring Thickness 1.50mm x 1.50mm x 3.00mm
Piston Style Flat top, with two valve reliefs
Quantity Sold as a set of 8.
Tool Stroker Combinations
Wrist Pin Style Press-fit or floating

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique one fixturing manufacturing method that assures maximum horsepower. We utilize a proven offset wrist pin design, a 1.5, 1.5, 3mm Total Seal ring package and moly coated skirts for ultimate performance. Roundwire locks, tool steel wrist pins and pressure balance grooves are included with every set at no additional charge.

Forging

  • 2618 alloy for maximum high temperature strength and fatigue resistance.
  • 4032 High Silicon alloy for budget conscience street applications. (49 series Ford Modular only)

Attributes

  • Contour forgings provide the optimum balance between strength and weight with no grain-interrupting internal milling.
  • Proprietary multi-step top ring groove machining process assures optimum control of the grooves size, geometry, flatness, and finish.
  • All final turning is performed in one fixturing resulting in complete squareness of rings to the cylinder wall.
  • Federal Form-Scan gauging validates ideal skirt indexing to pinhole and skirt-to-skirt polarity.
  • Value added features such as a pressure balance groove included in all series.
  • Precise pinhole machining results in an exact compression distance as well as precise lock ring groove spacing, size, and concentricity.
  • Moly coated skirts come standard on all Ford Modular pistons and are optional on the Chevy LS and Chrysler HEMI pistons.
  • Offset wrist pin design ensures more quiet start-ups and better performance.

Note: Compression ratios are calculated at 0.00 deck clearance, a 9.240 deck height, and a .042 thick compressed head gasket.

Reviews
Add your review
D
Excellent price and fast shipping. Product showed up as described and timely.
G
I need 14 of this item, you had 4
M
Thanks Autoplicity you had the best prices I could find, fast shipping, and everything I ordered was exactly what I was looking for! Great Customer Service!
K
Great price. Very happy with order. Will buy from them again.
Show All Reviews
Fitment
Cadillac CTS
2007 Cadillac CTS ALL / V
2006 Cadillac CTS ALL / V
2005 Cadillac CTS ALL / V
2004 Cadillac CTS ALL / V
Cadillac Escalade
2008 Cadillac Escalade ALL / Base
2007 Cadillac Escalade ALL / Base
Cadillac Escalade ESV
2008 Cadillac Escalade ESV ALL / Base
2007 Cadillac Escalade ESV ALL / Base
Cadillac Escalade EXT
2008 Cadillac Escalade EXT ALL
2007 Cadillac Escalade EXT ALL
Chevrolet Camaro
2002 Chevrolet Camaro ALL / SS / Z28
2001 Chevrolet Camaro ALL / SS / Z28
2000 Chevrolet Camaro ALL / SS / Z28
1999 Chevrolet Camaro ALL / SS / Z28
1998 Chevrolet Camaro ALL / SS / Z28
Chevrolet Corvette
2008 Chevrolet Corvette Base
2007 Chevrolet Corvette ALL / Base
2006 Chevrolet Corvette ALL / Base
2005 Chevrolet Corvette ALL / Base
2004 Chevrolet Corvette ALL / Base / Z06
2003 Chevrolet Corvette ALL / Base / Z06
2002 Chevrolet Corvette ALL / Base / Z06
2001 Chevrolet Corvette ALL / Base / Z06
2000 Chevrolet Corvette ALL / Base
1999 Chevrolet Corvette ALL / Base
1998 Chevrolet Corvette ALL / Base
1997 Chevrolet Corvette ALL / Base
Chevrolet SSR
2006 Chevrolet SSR ALL / Base
2005 Chevrolet SSR ALL / Base
Show All Vehicle Fitments
