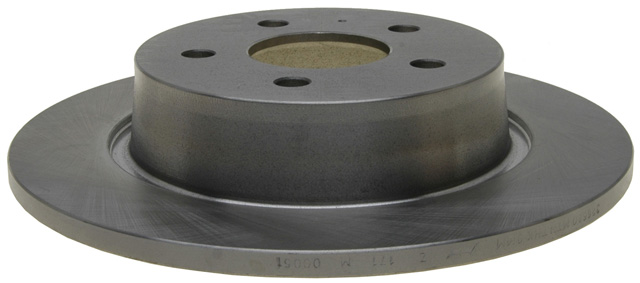

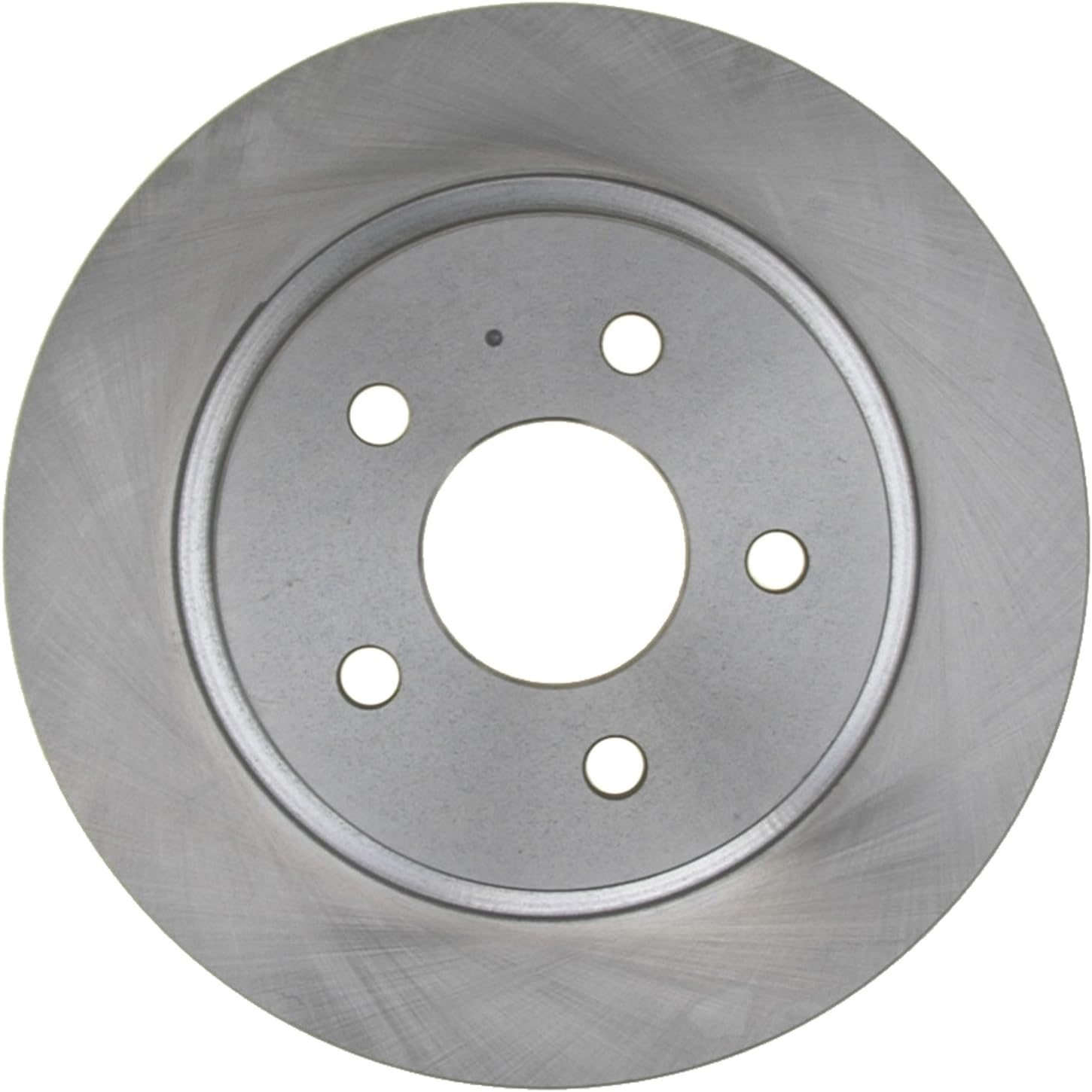

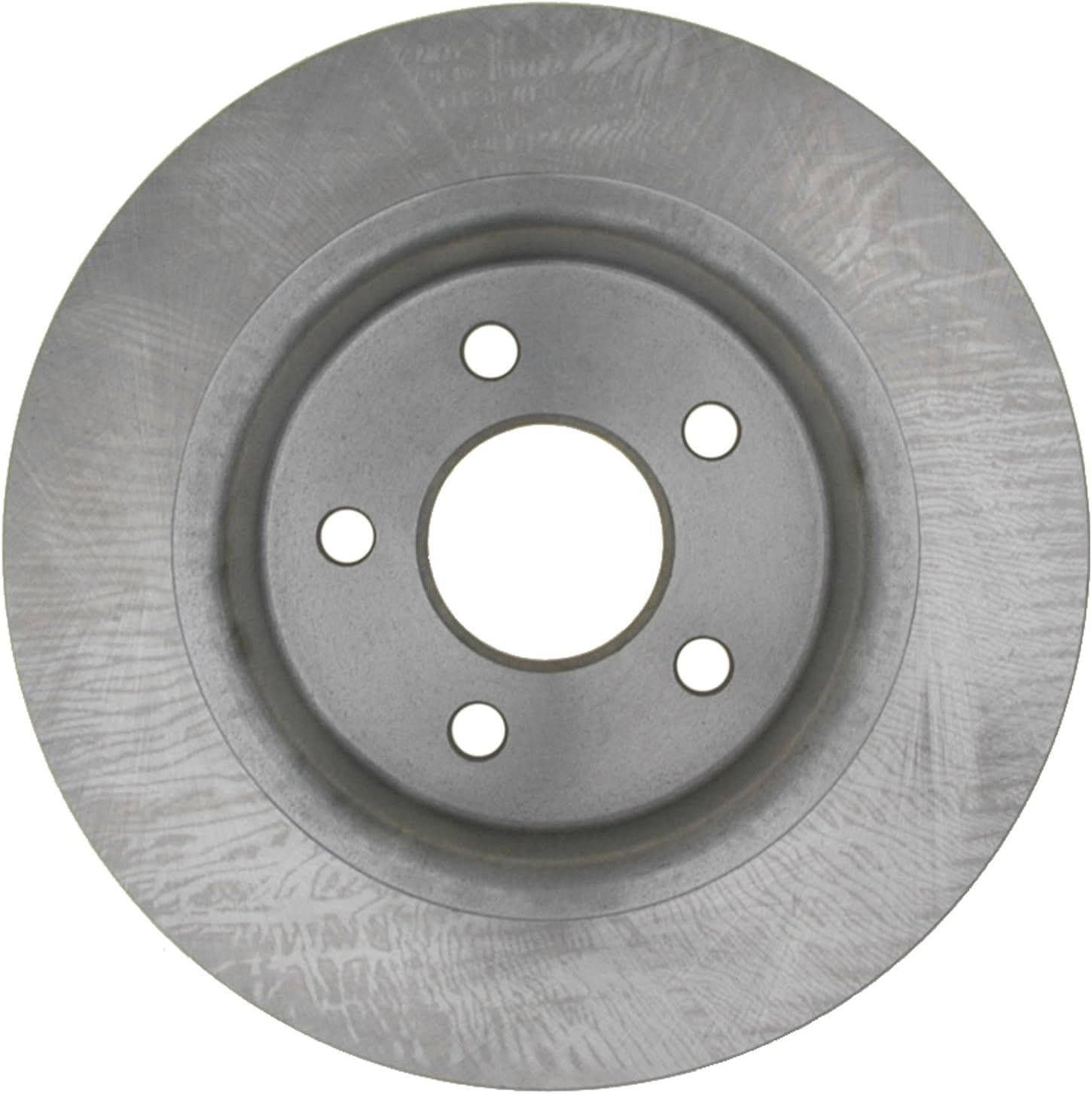

Raybestos 680999R Professional Grade Disc Brake Rotor

The Raybestos 680999R Professional Grade Disc Brake Rotor is engineered to deliver reliable braking performance for everyday driving conditions. Part of the R-Line series, this rear disc brake rotor is designed as an OE replacement that matches original equipment specifications for form, fit, and function.

Key Features:

• Manufactured with G3000-qualified material for long-lasting durability and structural integrity
• Meets SAE standards for tensile strength, ensuring maximum service life
• Precision-balanced with lateral runout of 0.004 inches or less for vibration-free operation
• Thickness variation of less than 0.0005 inches minimizes pedal pulsation and brake noise
• Non-directional ground finish provides installation-ready surface right out of the box
• One-piece iron construction with natural finish
• 5-bolt mounting pattern with 108mm bolt circle diameter
• Nominal thickness of 0.43 inches (10.92mm)

The Raybestos R-Line series provides 99.8 percent coverage for import and domestic cars, light trucks, and SUVs, making it one of the most comprehensive brake rotor lines available. This rotor is designed to extend pad life while delivering quiet, smooth stopping power. Sold individually.

Specifications:

• Center hole diameter: 2.504 inches (63.6mm)
• Inside diameter: 7.539 inches (191.5mm)
• Mounting bolt hole diameter: 0.540 inches (13.7mm)
• Mounting bolt hole quantity: 5
• Discard thickness: 0.354 inches (9.0mm)

Cross-Reference Numbers: Ford 1683383, 1683384, AV6Z2C026A, CV6Z2C026B, CV6Z2C026C, DV612A315BA, DV6Z2C026A; Centric Parts 120.61101; Bosch 20011533; Wagner BD180571; Bendix PRT6200
