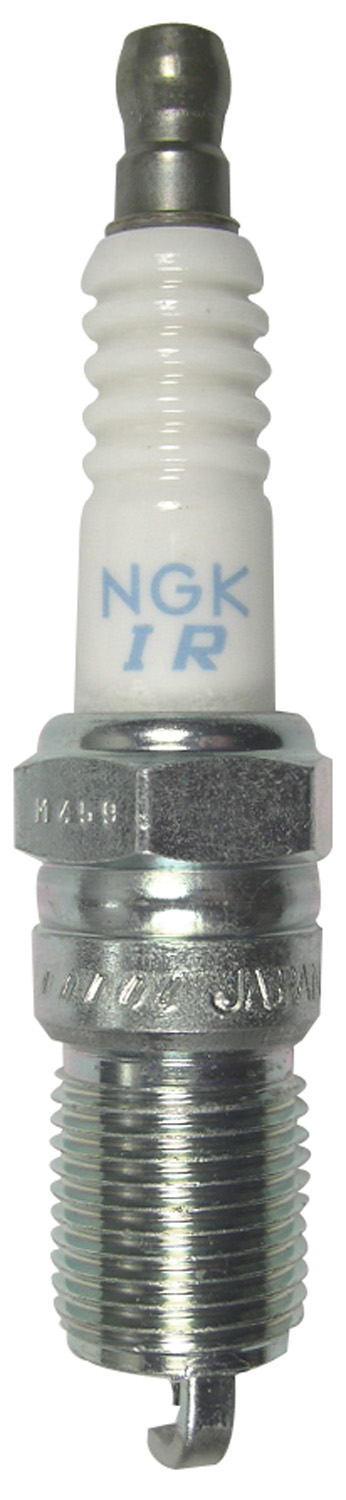

NGK 97287 Laser Iridium Spark Plug ITR5H13 Heat Range 5, 14mm

(Chevrolet Silverado 1500 1999-2003, Camaro 1993-97, Corvette 1992-96, Tahoe 1996-2000, S10 1996-2003, Impala 1994-96, Malibu 1997-99 + 195 more models)

Manufacturer

Part Number

97287
Black Friday Price

$10.94

$12.39 Save 12%

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The NGK 97287 Laser Iridium Spark Plug (NGK stock number ITR5H13) is a fine-wire iridium spark plug made for OE applications. It gives a stable spark and a long service life. NGK, The Ignition Specialist™, designs it to meet original equipment standards for durability and performance.

Key Features:

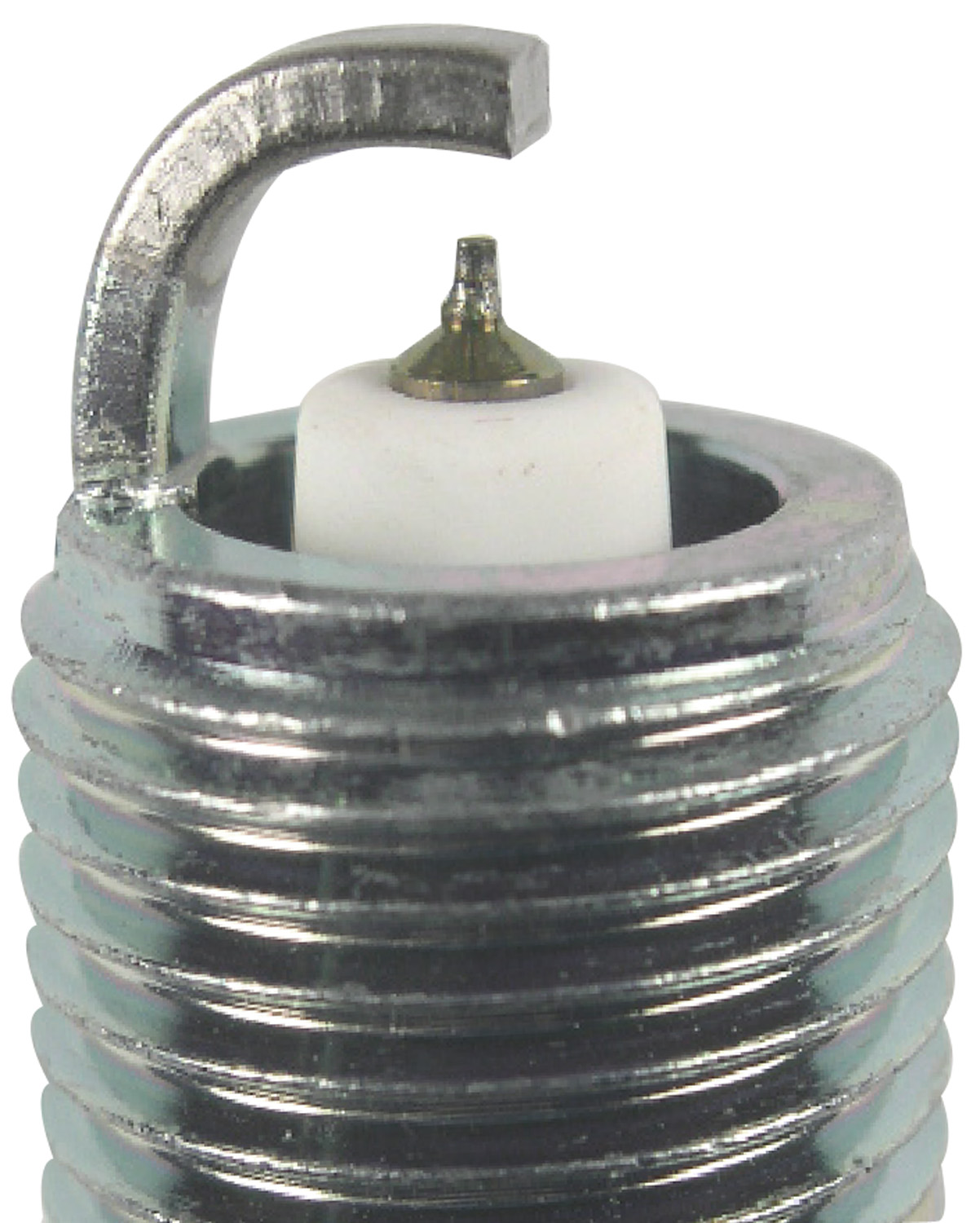

  • Laser-welded fine-wire iridium alloy center electrode (0.6mm). Iridium has a very high melting point and is about six times harder than platinum.
  • Platinum ground electrode for even wear in distributorless ignition systems
  • 98% pure copper core for heat dissipation, conductivity and a wide heat range
  • Pure alumina ceramic insulator for strength and good heat transfer
  • Trivalent metal plating resists corrosion and seizing, so the plug installs and removes easily
  • Triple seals help prevent leakage
  • Built-in 5k ohm resistor to help reduce electrical interference

Specifications:

  • Thread diameter: 14mm, thread pitch 1.25mm
  • Reach: 17.5mm (0.689 in)
  • Hex size: 5/8 in (16mm)
  • Seat type: Tapered
  • Heat range: 5
  • Gap: 0.050 in (1.3mm)
  • Terminal: Non-removable nut
  • Torque: 10.8-18 lb-ft in cast iron heads, 7.2-14.5 lb-ft in aluminum heads

This plug suits vehicles that came with OE fine-wire iridium alloy plugs. It helps with fuel efficiency and emissions, and it keeps ignition performance consistent over a long service interval.

Products specifications

Fits

Chevrolet Silverado 1500 1999-2003, Camaro 1993-97, Corvette 1992-96, Tahoe 1996-2000, S10 1996-2003, Impala 1994-96, Malibu 1997-99, C1500 1996-99, Blazer 1996-2003, K1500 1996-99, Caprice 1994-96, Monte Carlo 1995, K2500 1996-2000 + 189 more models

Stock Number

97287

Part Number

ITR5H13

Seat Type

Tapered

Electrical Terminal Type

Non-Removable Nut

Ground Electrode Core Material

Nickel

Manufacturer Heat Range

5

Ground Electrode Quantity

1

Center Electrode Tip Material

Iridium

Insulator Height

53.00

Hex Size

5/8

Ground Configuration

Standard

Pre-Gap Size

.052

Center Electrode Core Material

Copper

Reach

.708

Ground Electrode Tip Design

Standard

Thread Diameter

14.00

Resistance

5000
