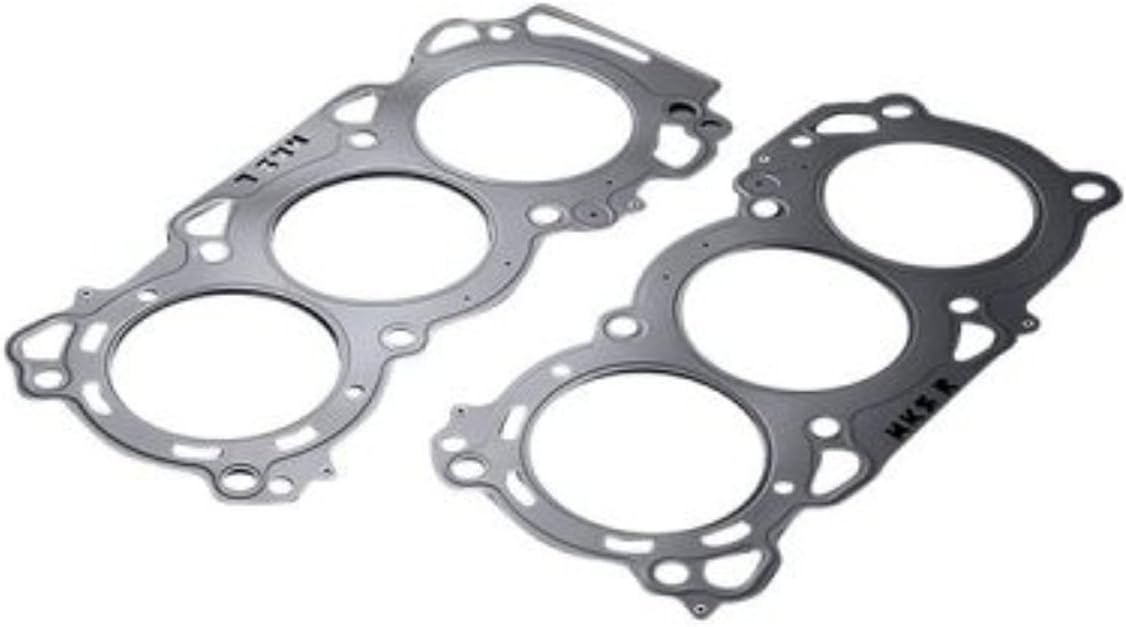

HKS 23001-AN002 Metal Head Gasket Multi-Layer Steel

(Nissan Altima 2002-15, Pathfinder 2001-14, Maxima 2002-14, 350Z 2003-06, Murano 2003-14, Quest 2004-14; Infiniti G35 2003-07, FX35 2003-08 + 5 more models)

Manufacturer

Part Number

23001-AN002
Black Friday Price

$378.00

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

HKS metal head gaskets are engineered to withstand extreme heat generated by high-horsepower and high-boost applications. Constructed with multiple layers of steel and coated with a specialized fluorine rubber compound, these gaskets deliver exceptional sealing performance under demanding conditions.

Key Features:

  • Multi-layer steel construction for superior strength and durability
  • Fluorine rubber coating provides optimal sealing properties
  • Designed to accommodate standard and select oversized cylinder bores
  • Multiple thickness options available for most applications to adjust dynamic compression ratios
  • Engineered specifically for turbocharged and high-performance engine builds

Gasket Design Types:

Stopper-Type: Features maximum plate layers with molded stopper rings around each combustion chamber opening for enhanced sealing under extreme cylinder pressures.

Bead-Type: Utilizes raised bead structures encircling each combustion chamber to create a precise, consistent seal.

Grommet-Type: Incorporates metal grommets around combustion chambers to ensure excellent sealing between cylinder head and engine block surfaces.

Important Note: Compression ratios listed are for comparison purposes only. Actual compression ratio achieved will vary depending on your specific application and engine configuration. HKS gaskets are designed for performance applications with properly machined surfaces and are not intended to correct sealing issues caused by head or block surface irregularities.

Products specifications

Fits

Nissan Altima 2002-15, Pathfinder 2001-14, Maxima 2002-14, 350Z 2003-06, Murano 2003-14, Quest 2004-14; Infiniti G35 2003-07, FX35 2003-08, M35 2004-08, QX60 2014-15, I35 2002-04, QX4 2001-03, JX35 2013

Bore

97mm

Comp Ratio

10.3:1

Gasket Type

Stopper

Thickness

0.7mm
