GReddy 12020479 Spec-LS Type 24E Intercooler Kit

(1989-1994 Nissan 240SX)

Manufacturer

Part Number

12020479
Sale Price

$531.48

In Stock (6)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The GReddy 12020479 Spec-LS Intercooler Kit represents the latest evolution in GReddy's cost-effective intercooler lineup, replacing the discontinued Spec-M with improved performance and lighter weight. This complete Type 24E front-mount air-to-air intercooler kit is engineered to safely increase horsepower in turbocharged engines by significantly reducing inlet air temperatures, allowing denser air charge to enter the engine for more power at the same boost level or even greater gains at higher boost.

Core Technology:

  • Advanced tube and fin core design (H284mm x L600mm x W66mm / 11.2" x 23.6" x 2.6")
  • Lightweight construction reduces front-end weight compared to bar-and-plate designs
  • Bullet-shaped tube and fin pattern minimizes turbulence for improved airflow
  • TIG-welded core ends with heavy-duty cast aluminum GReddy endtanks
  • Performance rated for up to 500 horsepower
  • Balanced cooling efficiency between free-flowing Spec-V and extreme cooling Spec-R cores

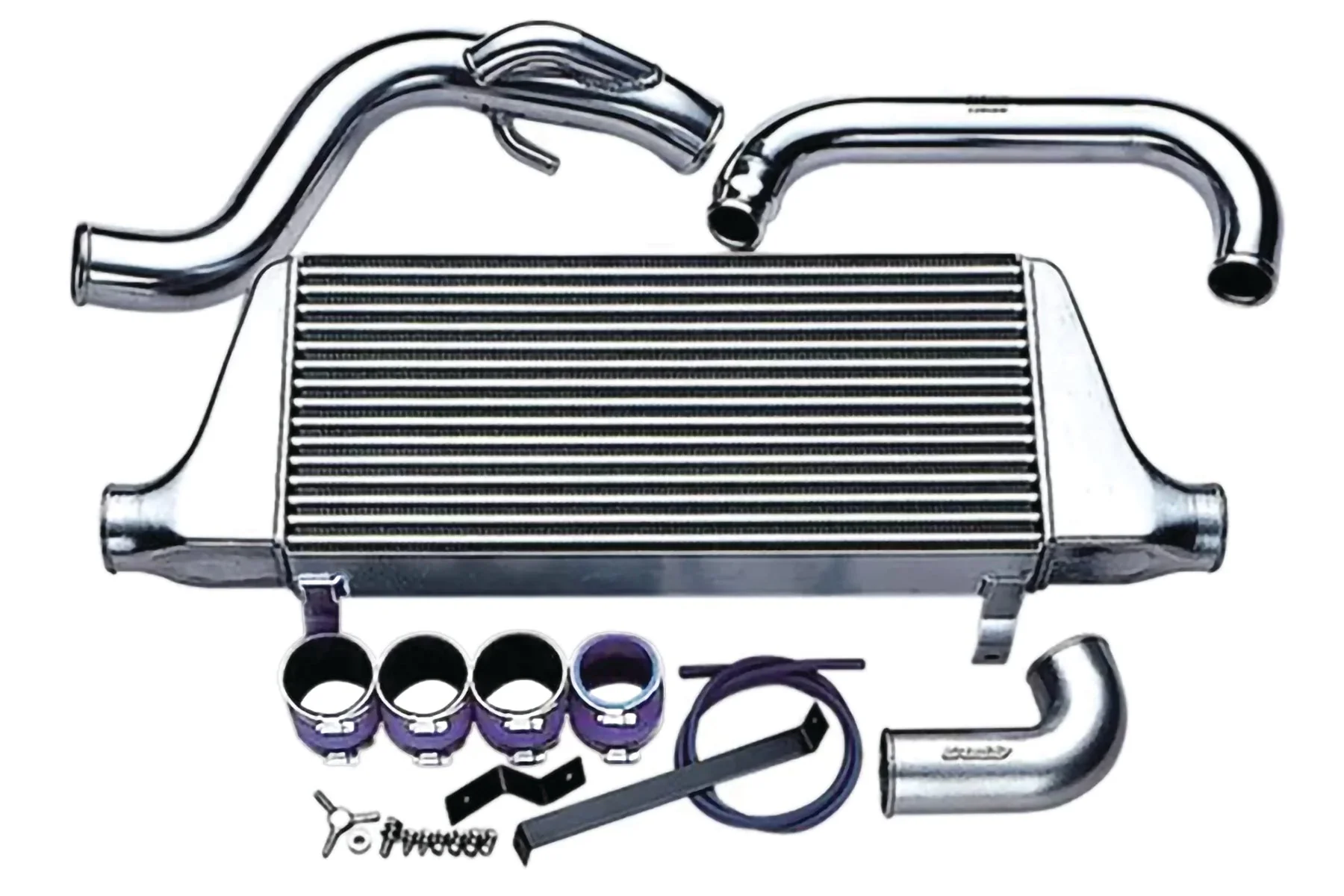

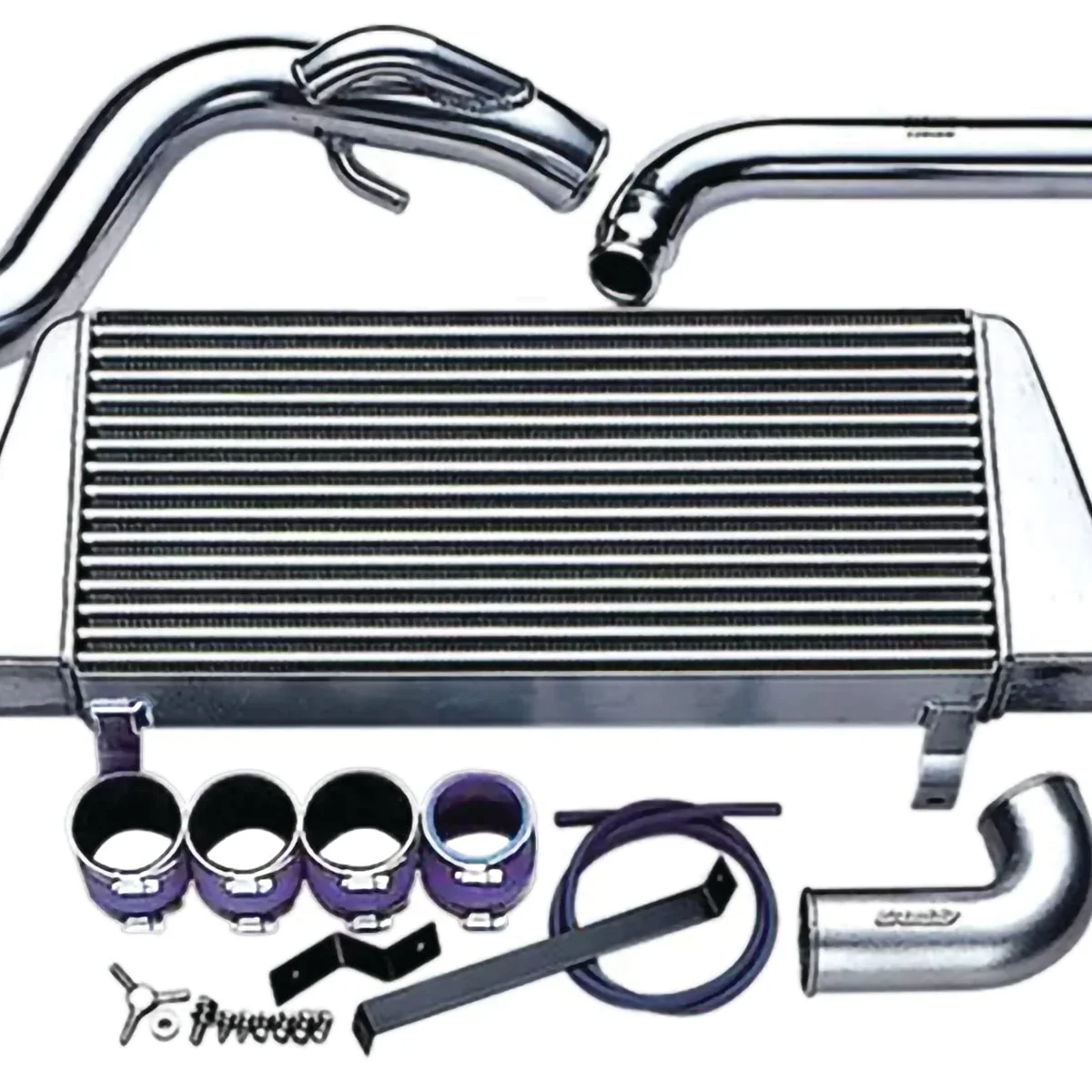

Complete Kit Includes:

  • LS-Type 24E intercooler core
  • Mandrel-bent aluminum piping (3 pipes: 2 cold side, 1 hot side)
  • High-quality 2-ply silicone couplers
  • Stainless steel worm clamps
  • All necessary mounting hardware and brackets

Installation Notes:

  • Front-mount configuration installs in front of radiator
  • May require battery relocation or smaller battery (34B19L size recommended)
  • Minor cutting and drilling required for installation
  • Bumper reinforcement and cover modification may be needed
  • Hot pipe sold separately for some applications

This intercooler kit effectively addresses the limitations of factory intercoolers, which are often mounted in awkward locations and prone to heat saturation at stock or elevated boost levels. The efficient tube and fin design allows better ambient airflow for optimal heat dissipation while maintaining excellent flow characteristics to your engine's cooling system.

Important: This product is designed for competition and off-road use only. Check local, state, and federal regulations before installation.

Products specifications

Fits

1989-1994 Nissan 240SX

Core

Type 24E

Dimensions

276x600x76mm
