Exedy HCK1005 OEM Replacement Clutch Kit

The Exedy HCK1005 is a complete OEM replacement clutch kit designed to restore factory-fresh performance to your manual transmission vehicle. As a Tier 1 supplier to major automotive manufacturers including Ford, GM, and 11 Japanese car manufacturers, Exedy manufactures clutches to exacting OEM specifications on the same production lines that supply new vehicles from the factory.

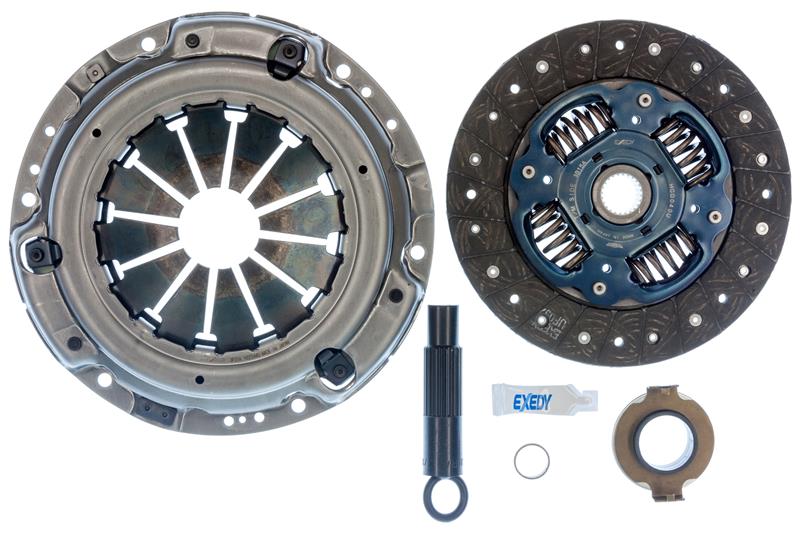

Complete Kit Includes:

• Clutch pressure plate with heat-treated diaphragm spring
• Clutch disc with WAD (Wide Angle Damper) design
• Throw-out bearing (release bearing)
• Pilot bearing
• Alignment tool

Key Specifications:

• Disc outer diameter: 225mm (8-7/8 inches)
• Input shaft spline: 24 teeth x 1-1/16 inch diameter
• Clamp load: 2023 lbs

Advanced Engineering Features:

• Wide Angle Damper design enables slightly higher torque capacity than stock with smooth engagement
• Heat-treated diaphragm spring for extended clutch life and reduced wear at release bearing contact surface
• Precisely tuned pre-damping springs eliminate gear rattle at idle
• Stock pedal feel and engagement characteristics for comfortable daily driving
• Robotic testing ensures optimal clamp load and clutch lift separation

Each Exedy OEM replacement clutch kit is manufactured to meet or exceed the original equipment specifications set by vehicle manufacturers. The kit duplicates the performance of your original clutch from pedal feel to long-term durability. Note that this kit does not include a flywheel—flywheel resurfacing or replacement is recommended during clutch installation.

Warranty: 12 months or 20,000 miles, whichever occurs first
