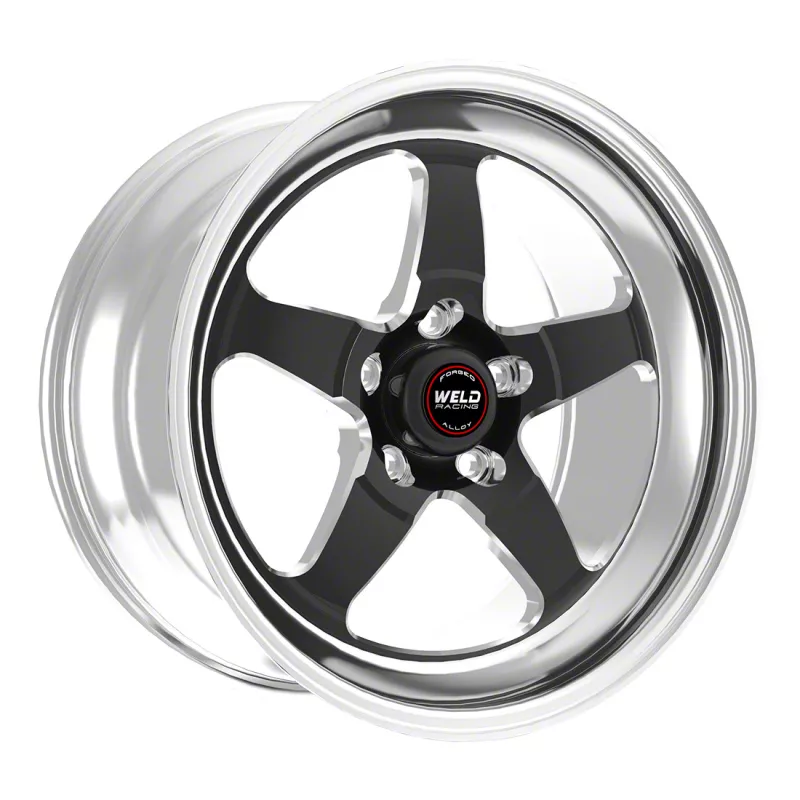

Weld Racing 71MB7080B63A RT-S S71 17x8 Black Anodized Wheel 5x4.75 6.3in BS Medium Pad

The Weld Racing RT-S S71 is a street and strip forged aluminum wheel that brings proven racing technology to high-performance street, drag, road course, and autocross applications. Part number 71MB7080B63A is a 17x8.0-inch wheel with a 5x4.75" bolt pattern, 6.3" backspace (46mm offset), and a medium pad center profile — designed to clear high-performance factory brake systems found on performance cars from the late 1980s onward, as well as many popular aftermarket brake systems.

Key Features:

• 3-Piece Welded Construction: Modular design uses a unique welded assembly process for superior strength-to-weight ratio and application flexibility
• Forged Billet Center: Black anodized forged billet aluminum center for a classic WELD Racing 5-spoke star appearance
• Cold Forged Rim Shells: Cold forged aluminum rim shells deliver maximum strength and durability
• Medium Pad Profile: Clears high-performance factory brake systems from the late 1980s onward and many aftermarket brake packages
• 3 Mounting Pad Heights Available: Low, medium, and high pad options clear specific drum brakes, multi-piston opposed calipers, and modern fixed caliper systems
• Non-Beadlock: Standard street/strip configuration; beadlock option available on select sizes
• Meets SAE J2530 Standards: Tested with Finite Element Analysis (F.E.A.) and in-house destructive testing to ensure safety and reliability
• Made in the USA: Manufactured in Kansas City, MO
• Includes: Center cap and valve stem

Specifications:

• Diameter: 17 in.
• Width: 8.0 in.
• Bolt Pattern: 5x4.75 in. (5x120.65mm)
• Backspace: 6.3 in.
• Offset: 46mm
• Pad Height: Medium
• Finish: Black Anodized Center
• Material: Forged Aluminum
• Lug Nut Requirement: Conical lug nuts required (17" diameter)

This wheel is compatible with a wide range of American muscle and performance platforms, making it an ideal choice for street/strip builds that demand lightweight performance without sacrificing brake clearance or structural integrity.
