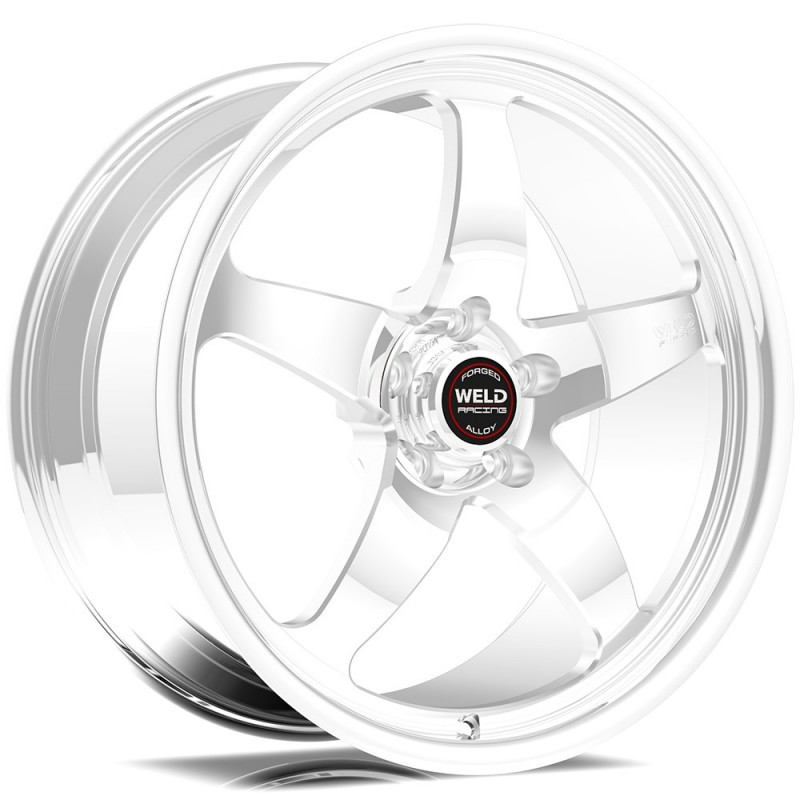

Weld Racing 71HP7050B22A RT-S S71 Polished Forged Aluminum Wheel 17x5 5x4.75 High Pad

The Weld Racing RT-S S71 is a high-performance forged aluminum wheel built for serious street and strip duty. Measuring 17" x 5" with a 5x4.75" bolt pattern and 2.2" backspace (-21mm offset), this polished wheel is engineered for performance applications demanding both lightweight construction and exceptional strength.

Construction & Materials:

• 3-piece welded modular construction for superior strength-to-weight ratio and application flexibility
• Forged billet aluminum center with cold forged rim shells for maximum durability
• Manufactured from primary forging-grade aluminum alloys for optimal strength
• Tested with F.E.A. (Finite Element Analysis) and in-house destructive testing for verified safety

High Pad Design:

• High pad mounting configuration designed to clear modern supercar fixed opposed-piston calipers
• Compatible with factory-installed Brembo systems and high-performance aftermarket brakes from Baer, Brembo, Wilwood, and similar systems
• Three mounting pad heights available across the S71 line to suit drum brakes, standard disc, and high-performance multi-piston calipers

Specifications:

• Diameter: 17 in.
• Width: 5 in.
• Bolt Pattern: 5 x 4.75 in. (120.65 mm)
• Backspace: 2.2 in.
• Offset: -21 mm
• Center Bore: 3.18 in. (80.77 mm)
• Finish: Polished
• Wheel Construction: 3-piece
• Load Rating: 1,580 lbs.
• Lug Nut Seat Style: Conical seat, 60-degree (conical lug nuts required for 17" diameter)
• Hub Centric: No
• Valve Stem: Included (chrome rubber)
• Center Cap: Included
• Made in Kansas City, MO, USA

The classic WELD Racing 5-spoke star design delivers iconic styling across street, drag, road course, and autocross applications. Sold individually.
