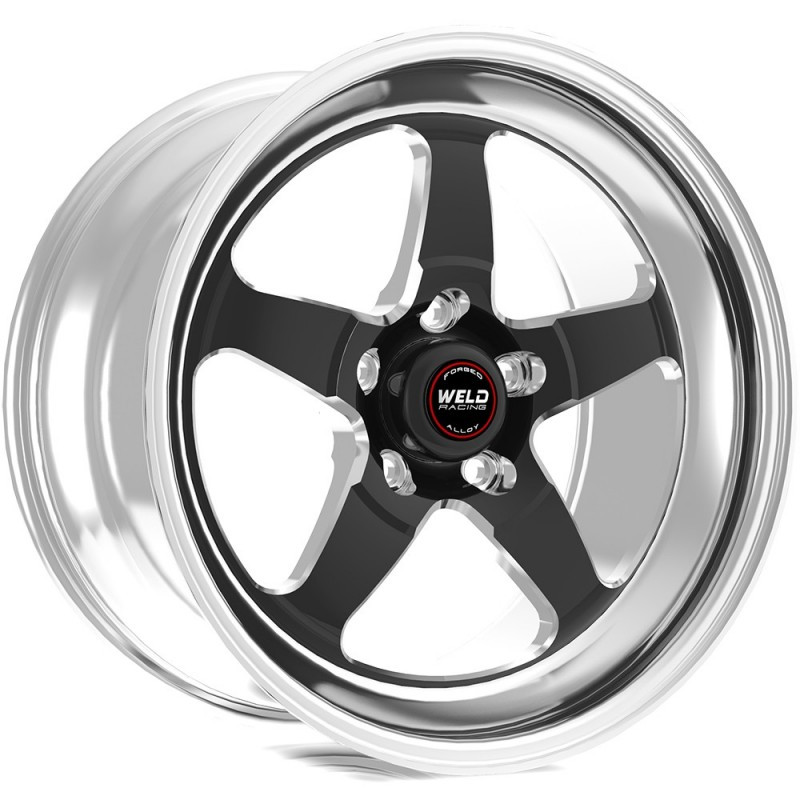

Weld Racing 71HB7105N77A RT-S S71 17x10.5 Forged Aluminum Wheel Black Anodized High Pad 5x120mm

The Weld Racing RT-S S71 is a high-performance 3-piece forged aluminum wheel built for serious street and track applications. Measuring 17x10.5 inches with a 5x120mm bolt pattern and 7.7-inch backspace (50mm offset), this wheel delivers the iconic WELD Racing 5-spoke star design combined with race-proven engineering. It is made in Kansas City, MO, USA.

The S71 features a forged billet center and cold forged rim shells joined through a unique 3-piece welded assembly process, delivering an exceptional strength-to-weight ratio. The High Pad center is specifically engineered to clear large fixed-caliper brake systems, including modern factory-installed Brembo setups and high-performance aftermarket brake packages from Baer, Wilwood, and similar manufacturers.

Key Features:

• Size: 17 x 10.5 inches
• Bolt Pattern: 5 x 120mm
• Backspace: 7.7 inches | Offset: +50mm
• Construction: 3-piece welded forged aluminum — forged billet center with cold forged rim shells
• Finish: Black anodized center
• Pad Height: High Pad — designed for modern super cars with large opposed-piston calipers
• Beadlock: Non-beadlock configuration
• Meets or surpasses SAE J2530 Aftermarket Wheel (Street) Standards
• Tested using F.E.A. (Finite Element Analysis) and in-house destructive testing
• Lug Nuts: Conical lug nuts required (sold separately)
• Includes: Matching push-through center cap and valve stem
• Made in Kansas City, MO, USA

The Weld Racing RT-S S71 is the ideal choice for enthusiasts seeking minimal weight with maximum structural integrity — whether building a dedicated drag car, road course machine, or high-performance street build. Available wheel widths span 4.5 to 18 inches across the S71 lineup for application flexibility.
