Weld Racing 71HB7090A62A RT-S S71 Forged Aluminum Wheel 17x9 Black Anodized 5x4.5 6.2BS High Pad

The Weld Racing RT-S S71 is a high-performance forged aluminum wheel that bridges the gap between championship-caliber racing technology and street use. Built as a three-piece modular assembly using a unique welded construction process, this 17x9 wheel delivers an exceptional strength-to-weight ratio without sacrificing durability or style.

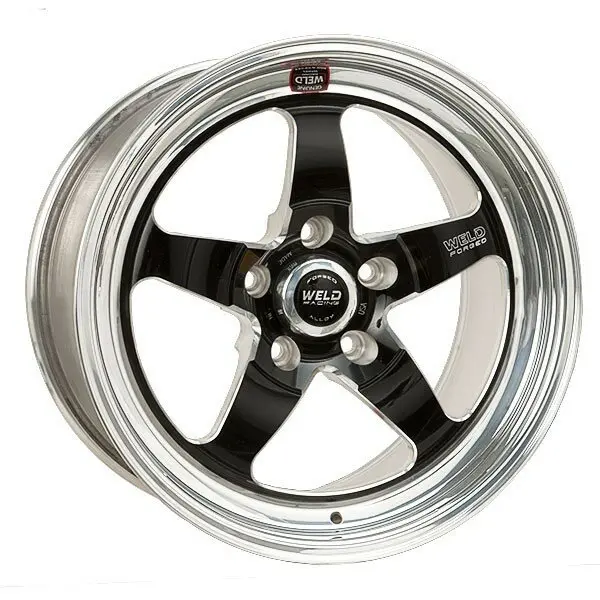

The S71 features Weld Racing's iconic 5-spoke star design with a black anodized center and polished lip, combining aggressive aesthetics with race-proven engineering. The center is machined from forged billet aluminum, while the rim shells are cold forged — both using primary forging-grade aluminum alloys for maximum strength.

Key Specifications:

• Diameter: 17 inches
• Width: 9.0 inches
• Bolt Pattern: 5x4.5 (5x114.3mm)
• Backspace: 6.2 inches
• Offset: +30mm
• Pad Height: High Pad
• Finish: Black Anodized Center / Polished Shell
• Load Rating: 1,580 lbs per wheel
• Lug Nut Requirement: Conical lug nuts required
• Hub Bore ID: 3.18 inches

Key Features:

• Three-piece welded modular construction for superior application flexibility
• Forged billet aluminum center and cold forged rim shells
• High pad mounting height designed to clear large fixed opposed-piston calipers, including Brembo, Baer, Wilwood, and similar road racing-capable aftermarket systems
• Tested to SAE J2530 Aftermarket Wheel (Street) Standards
• Surpasses SFI 15.1 Drag Race Drive Wheel Specifications (15-inch diameter models)
• Designed and engineered in the United States

The High Pad configuration is specifically engineered to clear modern high-performance brake packages featuring large, fixed opposed-piston calipers — making this wheel an ideal choice for performance builds running factory or aftermarket big brake upgrades. Sold individually.
