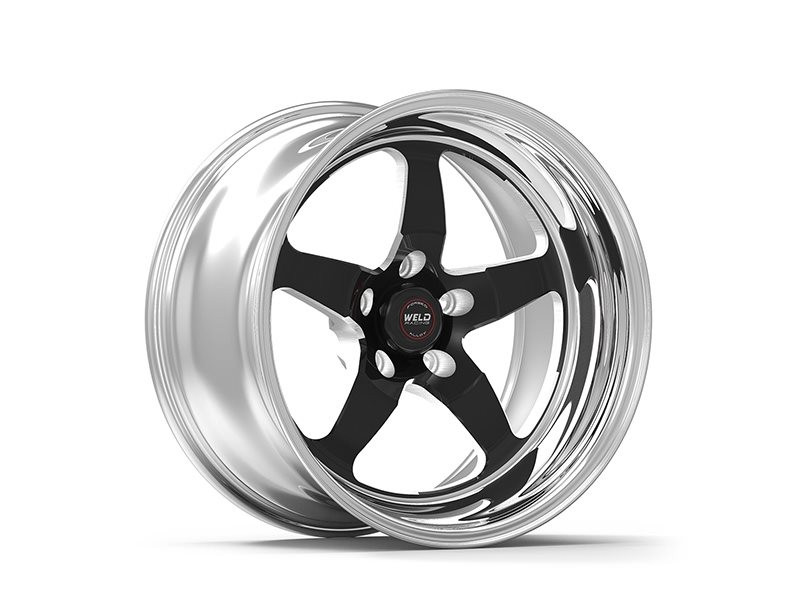

Weld Racing 71HB7070N42A RT-S S71 17x7 Black Anodized Forged Aluminum Wheel 5x120 High Pad

The Weld Racing RT-S S71 is a 17-inch x 7-inch forged aluminum wheel featuring a black anodized center and 3-piece welded construction. Built for street and strip performance, this wheel combines race-proven engineering with everyday drivability in a classic 5-spoke star design.

Construction & Engineering:

• 3-piece welded construction using a forged billet center and cold-forged rim shells for a superior strength-to-weight ratio
• Manufactured from primary forging-grade aluminum alloys for maximum strength and durability
• Tested using F.E.A. (Finite Element Analysis) and in-house destructive testing to ensure safety
• Surpasses SAE J2530 Aftermarket Wheel Street Standards
• Made in Kansas City, USA

Specifications:

• Diameter: 17 in.
• Width: 7.0 in.
• Bolt Pattern: 5x120mm
• Backspacing: 4.2 in.
• Offset: +5mm
• Pad Height: High Pad
• Wheel Material: Forged Aluminum
• Finish: Black Anodized Center
• Lug Nut Seat Style: Conical seat – 60 degree (aftermarket conical lug nuts required; OEM lug nuts will not fit)
• Load Rating: 1,580 lbs.
• TPMS Sensor Compatible: Yes (valve stem mount)
• Beadlock: Non-Beadlock
• Center Cap: Included
• Valve Stem: Included

High Pad Design:

The high pad mounting configuration is engineered to clear modern fixed opposed-piston brake calipers, including factory-installed Brembo systems and road-racing capable aftermarket systems from Baer, Brembo, Wilwood, and others. Note: pad dampers must be removed from calipers where applicable.

Sold individually. Aftermarket conical lug nuts are required — OEM lug nuts will not fit this wheel.
