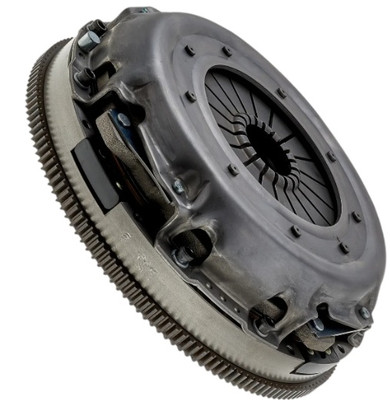

South Bend Clutch SDD3250-G Street Dual Disc Clutch Kit

(2011-2018 Ram 2500; 2011-2018 Ram 3500; 2005-2010 Dodge Ram 2500; 2005-2010 Dodge Ram 3500; 1990-1993 Dodge W250; 1989-1993 Dodge D250 + 2 more models)

Manufacturer

Part Number

SDD3250-G
Black Friday Price

$1,392.65

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The South Bend Clutch SDD3250-G Organic Street Dual Disc is a high-performance clutch system engineered for heavy-duty diesel applications. This dual disc design combines half organic and half ceramic friction materials to deliver exceptional holding power while maintaining smooth street drivability.

Performance Specifications:

  • Power capacity: 650 horsepower and 1,300 lb-ft of torque
  • Towing capacity: Rated for 30,000+ lbs
  • Dual disc configuration with 13-inch (330mm) diameter discs
  • Button-style disc design with sprung hub for reduced drivetrain shock
  • Diaphragm-style pressure plate for consistent clamping force

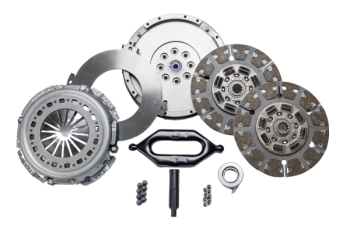

Complete Kit Includes:

  • Dual disc clutch assembly with ductile iron flywheel
  • Pressure plate assembly
  • Throwout bearing (standard style)
  • Pilot bushing (steel construction)
  • Alignment tool for proper installation
  • 10-spline input with 1.375-inch shaft diameter

Technical Specifications:

  • Made in the USA
  • Non-SFI approved street application
  • Requires hydraulics (not included in this kit)
  • Not recommended for competition use such as sled pulling
  • 1-year manufacturer warranty

This clutch provides the perfect balance between street performance and heavy towing capability, making it ideal for modified diesel trucks that see both daily driving and demanding work applications. The multi-friction design offers superior heat resistance and longer service life compared to stock clutches.

Products specifications

Fits

2011-2018 Ram 2500; 2011-2018 Ram 3500; 2005-2010 Dodge Ram 2500; 2005-2010 Dodge Ram 3500; 1990-1993 Dodge W250; 1989-1993 Dodge D250; 1992-1993 Dodge W350; 1989-1993 Dodge D350

Disc Diameter (in)

13.000 in.

Disc Diameter (mm)

330mm

Disc Style

Full face, sprung hub

Notes

Models equipped with G56 transmission. Applications that have had the hydraulic throw-out-bearing updated. Recommended for use with 550-750 horsepower, 1,400 lbs. of torque.

Quantity

Sold as a kit.

Flywheel Bolt Quantity

8

Pilot Bushing Included

Yes

Flywheel Included

Yes

Throwout Bearing Included

Yes

Input Shaft Diameter

1.375

Alignment Tool Included

Yes

Disc Diameter

330

Ring Gear Tooth Quantity

152

Pressure Plate Style

Diaphragm

Disc Style

Button

Clutch Disc Quantity

Dual

Hub Style

Sprung

Input Spline Quantity

10

Throwout Bearing Style

Standard

Disc Material

Organic/Ceramic

Flywheel Material

Ductile

Pilot Bushing Material

Steel

Clutch Usage

Performance

Prop 65

No
