South Bend Clutch DDDCMAX-Y Competition Triple Disc Clutch Kit Sintered Iron 950HP 1500 ft-lbs

The South Bend Clutch DDDCMAX-Y is a heavy-duty Competition Triple Disc Clutch Kit engineered for high-output diesel trucks running a ZF S6-650 6-speed manual transmission. Rated to handle up to 950 HP and 1,500 lb-ft of torque, this Stage 4 kit is purpose-built for extreme performance applications including drag racing, sled pulling, and high-horsepower street builds where stock or standard aftermarket clutches fall short.

The triple-disc architecture dramatically increases friction surface area, allowing the system to manage heat more effectively and maintain clamping force under the sustained high-energy engagements that competition use demands. Modified to handle higher plate loads, these Competition Triple-D kits wear better, maintain compression longer, and resist warping significantly better than standard alternatives. GM applications utilize feramic buttons for superior holding power — feramic material delivers exceptional thermal resilience while remaining slippable, making it ideal for sled pulling and racing scenarios.

Key Features:

• Disc Quantity: Triple disc configuration
• Disc Diameter: 12 inches (305 mm)
• Disc Material: Sintered Iron, Full Face style
• Input Shaft Diameter: 1.375 inches
• Input Spline Quantity: 10-spline
• Hub Style: Rigid
• Pressure Plate Style: Diaphragm
• Flywheel Bolt Quantity: 8-bolt pattern
• Flywheel Material: Billet (flywheel not included)
• Ring Gear Tooth Quantity: 116
• Country of Origin: USA

What's Included:

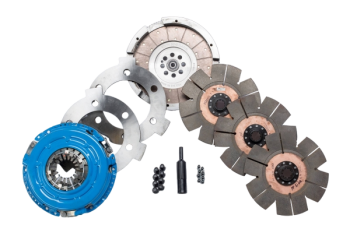

• Triple disc clutch assembly
• Alignment tool
• Pilot bushing (Steel)
• Throwout bearing

Not Included: Flywheel, mounting hardware, and concentric slave cylinder. The concentric slave cylinder should be replaced prior to installation and is available separately.

South Bend Clutch has been an industry leader in performance clutch systems since 1967, and the DDDCMAX-Y reflects that heritage — manufactured in the USA and built to deliver consistent, reliable engagement under the most demanding conditions.
