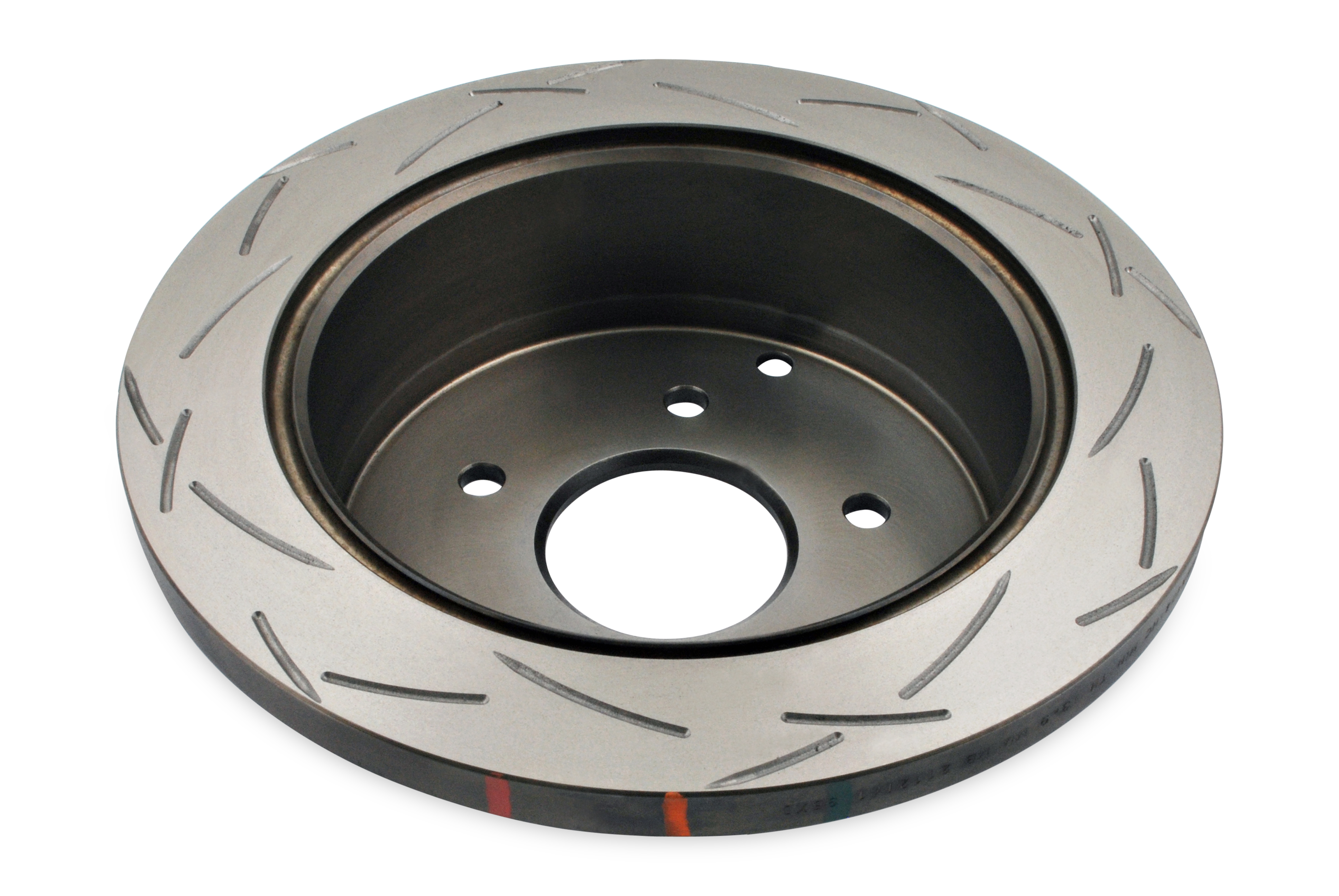

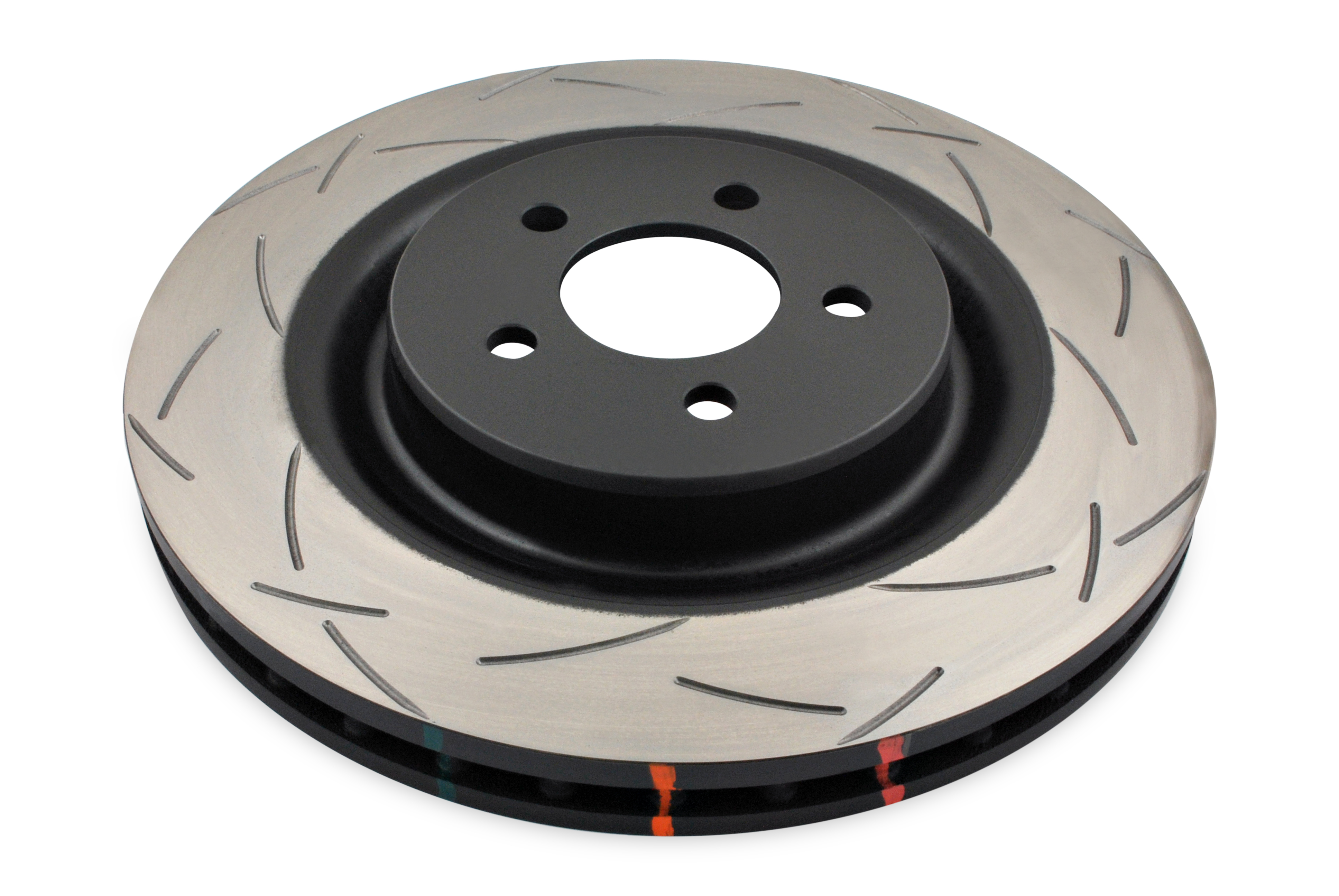

The DBA 4000 Series T3 Slotted Brake Rotor is a direct replacement single-piece performance disc designed for drivers seeking upgraded braking performance above and beyond standard OE levels. Cast from XG-150 high carbon alloyed iron and undergoing Thermal Stability Profiling (TSP), DBA's metallurgy is able to handle the increased stress and heat generated under intense braking applications, time and time again.
Advanced T3 Slotting Technology:
Built on the same design as the T2 slots, the T3 adds several more gas scavenging slots to the rotor face, going from 32 slots in the T2 to 48 slots in the T3. The tri-symmetrical curved slots dampen vibration harmonics and increase the amount of exit points for brake pad friction gases to escape through. The T3 slot design features additional, precise, CNC machined tri symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel.
Key Features:

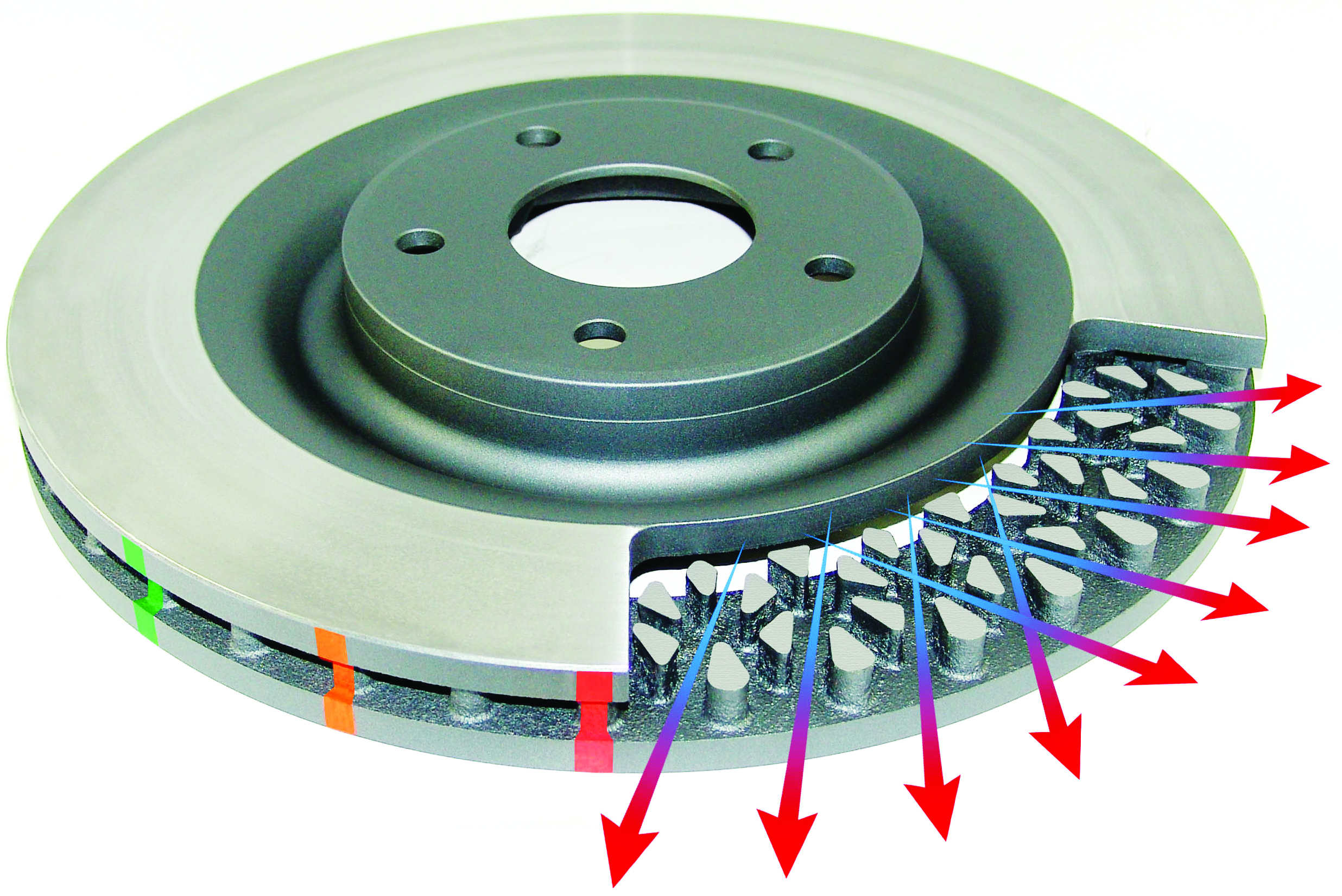

- Patented Kangaroo Paw ventilation implements a series of 144 diamond and teardrop patterned pillars, achieving up to a 30% increase in surface area and 20% improvement in cooling efficiency compared to traditional straight vane design
- Thermal Stability Profiling (TSP) process subjects XG-150 grey iron to prolonged heat cycles under strictly controlled conditions to relieve internal stresses, ensuring maximum thermal stability and reduced metal fatigue

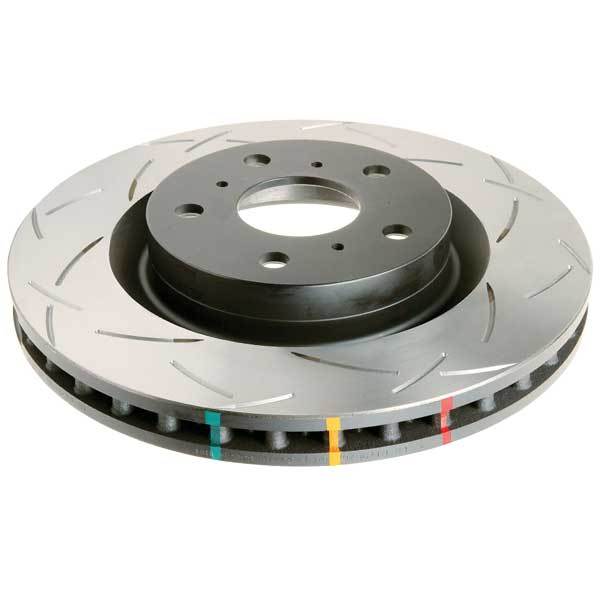

- Thermo-Graphic Heat Paint (TGHP) markings with Green, Orange and Red stripes that change color once the rotor reaches predetermined critical temperature thresholds
- CBN (Cubic Boron Nitride) machine turned finish, minimising disc thickness variation and the potential for pad knock and resulting premature wear
- Painted non friction areas to prevent rust and enhance appearance
- Symmetrical slotting for universal left/right use
DBA recommends the 4000 Series for high stress applications including performance vehicles, SUV and 4X4, towing applications, light commercial vehicles, armoured vehicles and light track day duties. DBA 4000 T3 Rotors are one of the highest quality rotors on the market today, rated for severe motorsports use, these rotors will take a thrashing without missing a beat.
Specifications:
- Diameter: 276mm (10.87 inches)
- Height: 45mm
- Thickness: 24mm
- Minimum Thickness: 22.4mm
- Inner Diameter: 69mm
- Number of Holes: 5
- Ventilation: Vented
Price is per single rotor. Black high temperature coating applied to non-friction surfaces.
