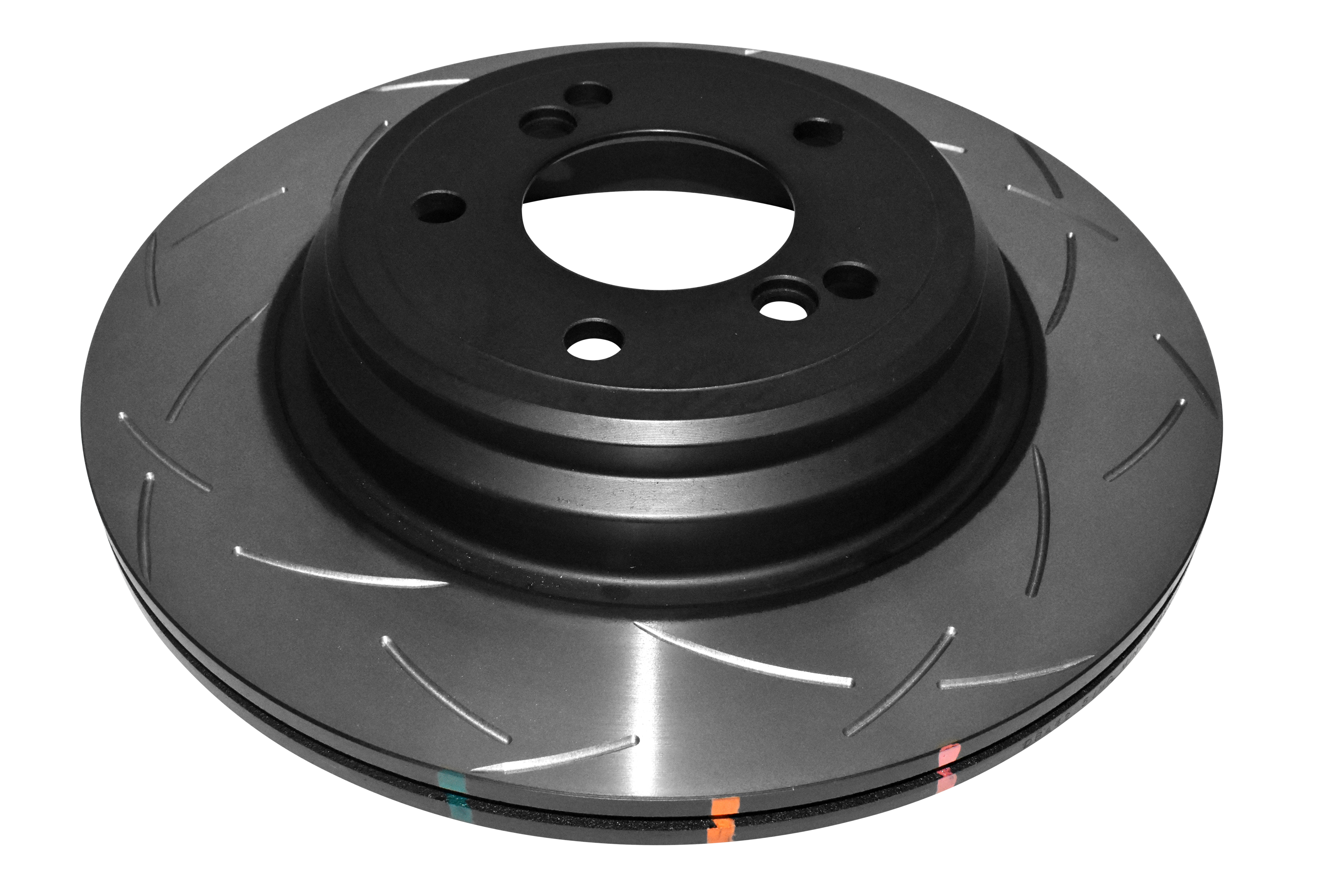

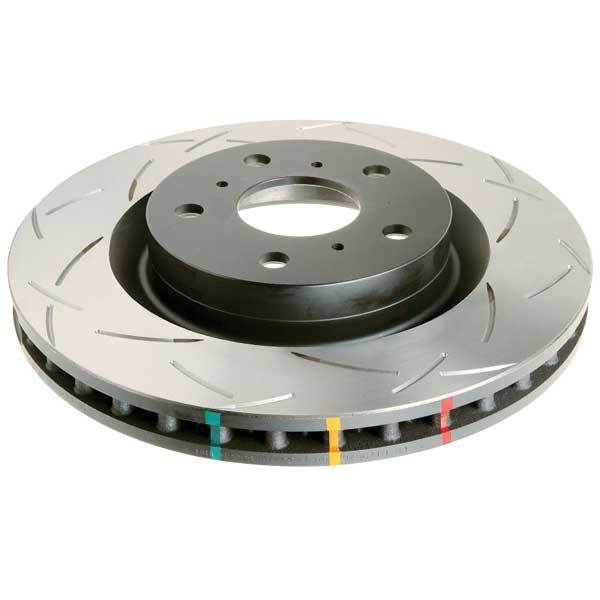

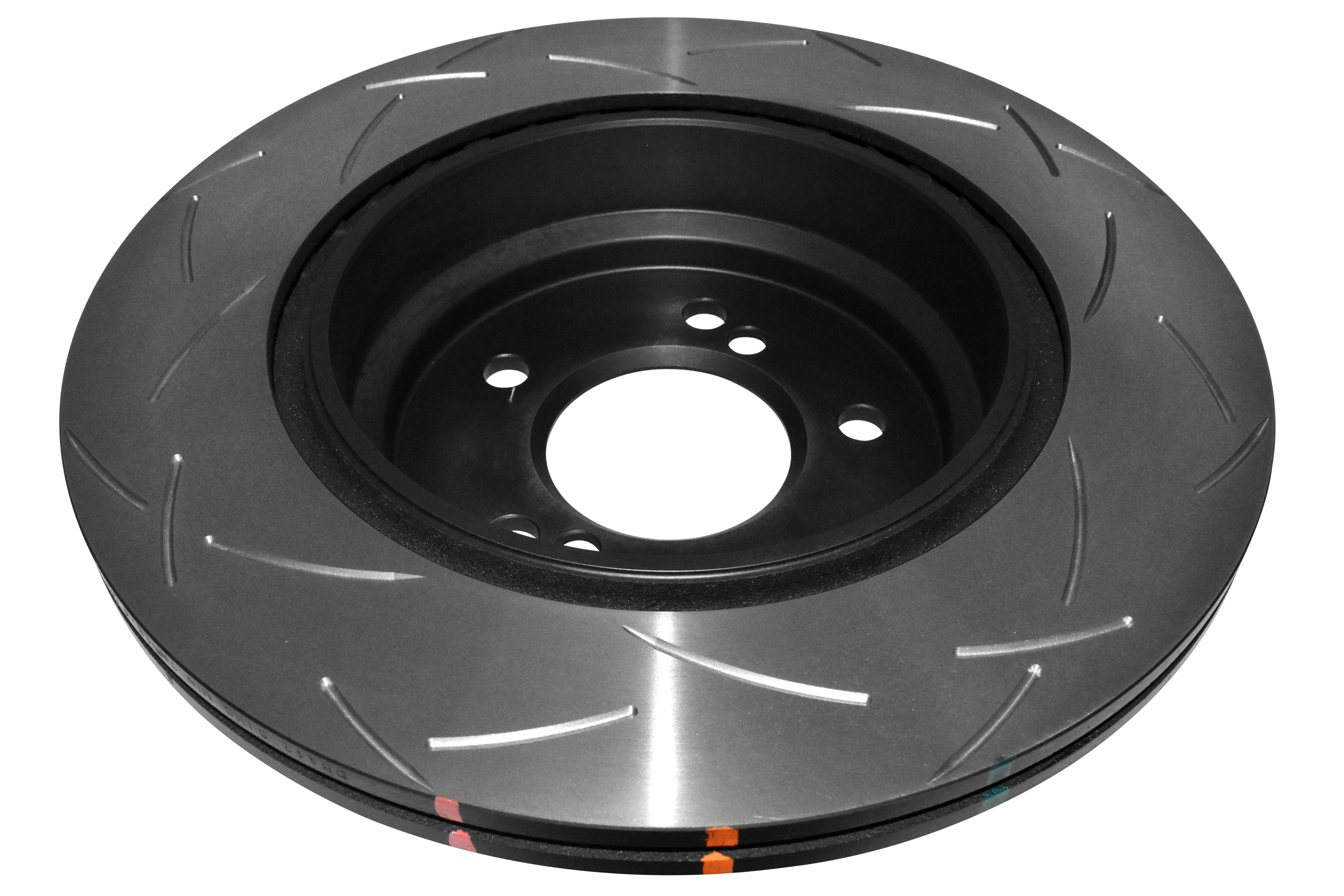

The DBA DBA42851S is a 4000 Series T3 slotted, vented, single-piece performance brake rotor from Disc Brakes Australia (DBA). Designed as a direct-fit replacement, this rotor delivers upgraded braking performance above and beyond standard OEM levels, making it an ideal choice for performance street driving, track days, 4x4, SUV, light utility, rally, and motorsport applications.
At the heart of this rotor is DBA's patented T3 Tri-Symmetrical slot design, built upon the proven T2 slot foundation with the addition of precise, CNC-machined tri-symmetrical slots. This universal bi-directional design eliminates the need for separate left and right rotor configurations while increasing the number of exit points for brake pad friction dust and gases — resulting in a quieter, more responsive, and smoother brake pedal feel.
Key Features:
- XG-150 High Carbon Alloyed Iron construction for superior strength and heat resistance
- Thermal Stability Profiling (TSP) — DBA's proprietary process that subjects the iron to controlled heat cycles, relieving internal stresses and maximizing thermal stability and fatigue resistance
- Patented Kangaroo Paw ventilation — 144 diamond and teardrop patterned pillars deliver up to 30% more surface area and 20% improved cooling efficiency over traditional straight-vane designs
- T3 Tri-Symmetrical slotting continuously de-glazes brake pads, increases pad bite, reduces fade, and extends pad and rotor life
- Thermo-Graphic Paint (THGP) markings change color at specific temperature thresholds for easy heat monitoring and rotor fatigue assessment
- CBN (Cubic Boron Nitride) machine-turned finish minimizes disc thickness variation and reduces the potential for pad knock and premature wear
- Non-friction surfaces feature a black high-temperature coating to prevent rust and enhance appearance
- Direct bolt-on replacement — no mechanical modifications required
- Sold individually
The DBA42851S measures 327mm in diameter with a 20mm rotor thickness and features a vented construction for maximized heat dissipation. Manufactured to QS-9000 quality standards, this rotor pairs optimally with DBA's Thermal Stability Profiling brake pads for a complete performance braking system upgrade.
