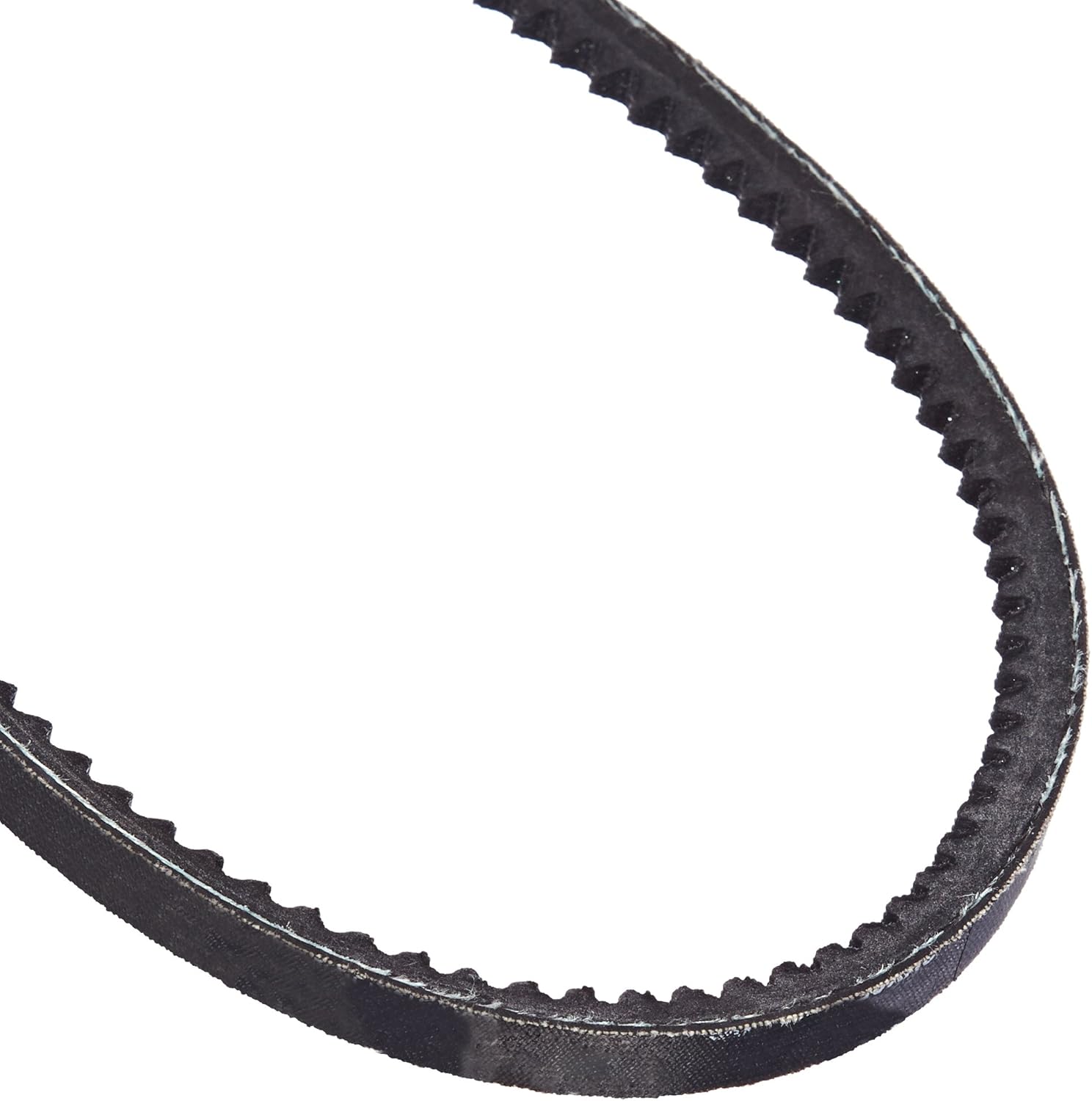

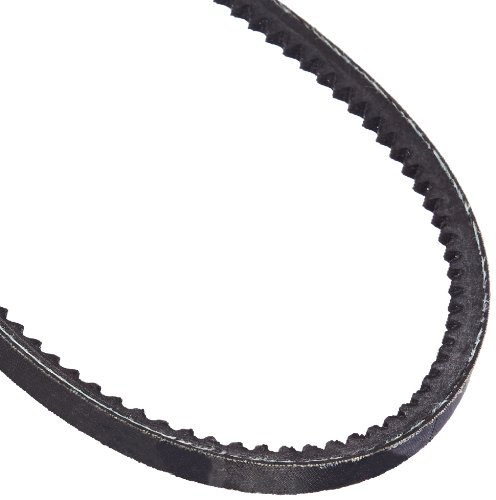

Gates 3VX850 Super HC Molded Notch V-Belt 3/8" x 85"

Manufacturer

Part Number

3VX850
Sale Price

$26.33

4 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Gates 3VX850 Super HC Molded Notch V-Belt is a high-performance narrow section belt engineered for industrial applications requiring maximum horsepower in space-constrained drives. This belt features EPDM construction for resistance to weathering, oils, water, and solvents, making it ideal for demanding power transmission applications.

Key Features:

  • 3VX section belt with 3/8" top width, 21/64" height, and 85" outside circumference
  • Molded notches in the underside provide flexibility for smaller diameter sheaves while maintaining strength and traction
  • Proprietary ethylene construction transmits up to three times the horsepower versus comparably sized belts

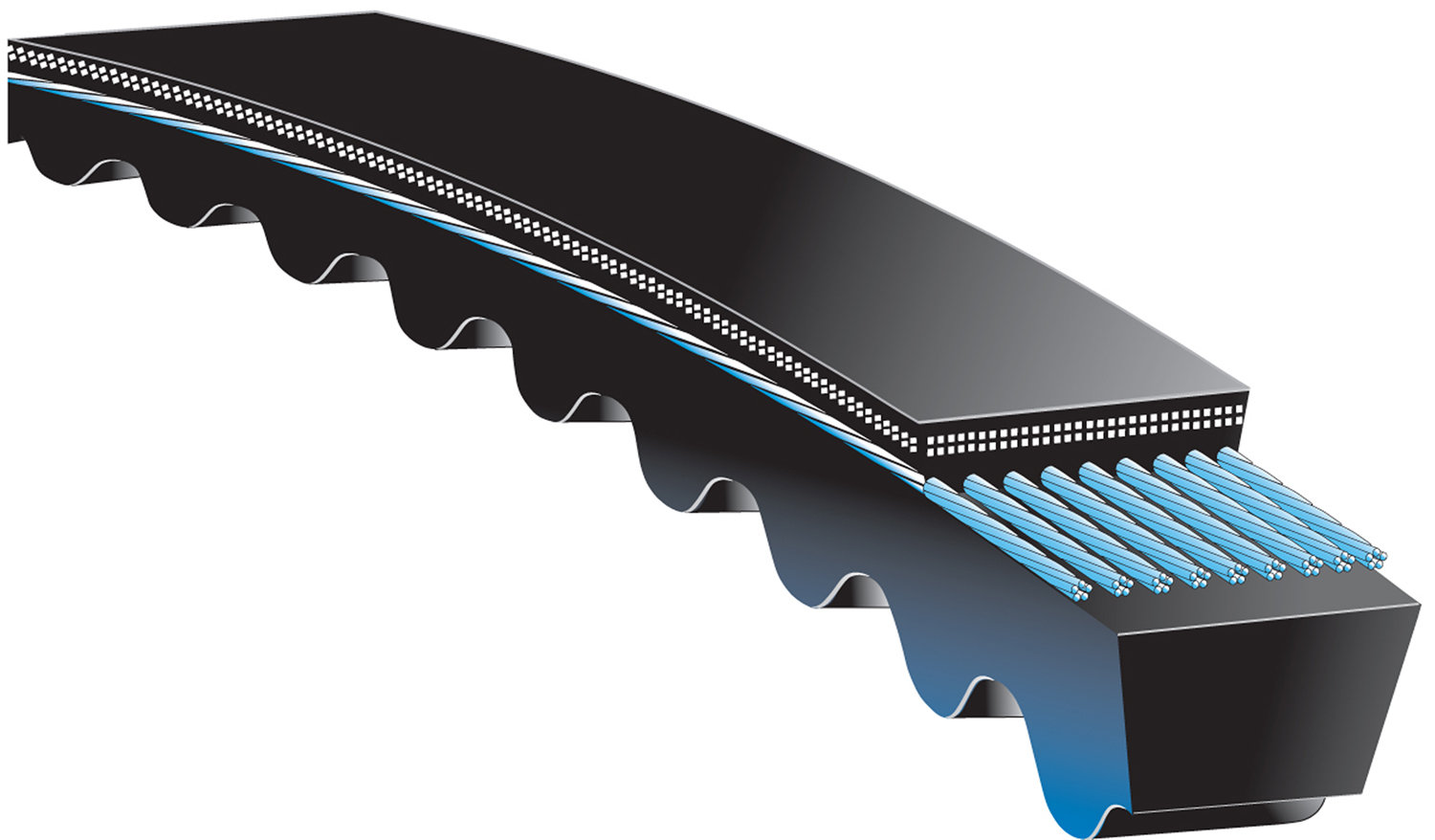

  • Flex-bonded tensile cords vulcanized as one solid unit for resistance to fatigue and shock loads
  • Precision-ground straight sidewalls ensure uniform wedging action and proper fit in pulley grooves
  • Operating temperature range of -65°F to +250°F

Standards and Compliance:

  • Meets ARPM/RMA IP-3-2 oil and heat resistance standards and IP-3-3 static conductivity requirements
  • Part of Gates V80 matching system for precise belt matching beyond RMA and ISO standards
  • REACH and RoHS 2 compliant

Super HC Molded Notch belts deliver significant benefits over classical section V-belts where high speeds, high speed ratios, or small pulley diameters are required. The cogged design and advanced materials provide smoother, quieter operation with reduced slippage and extended belt life, making this belt an excellent choice for industrial machinery, HVAC systems, and agricultural equipment.

Products specifications

Outside Circumference (in)

85

Outside Circumference (mm)

2159

Section

3VX

Top Width (in)

.375

Top Width (mm)

10

Top Width (frac. in.)

3/8

Outside Circumference (frac. in.)

85
