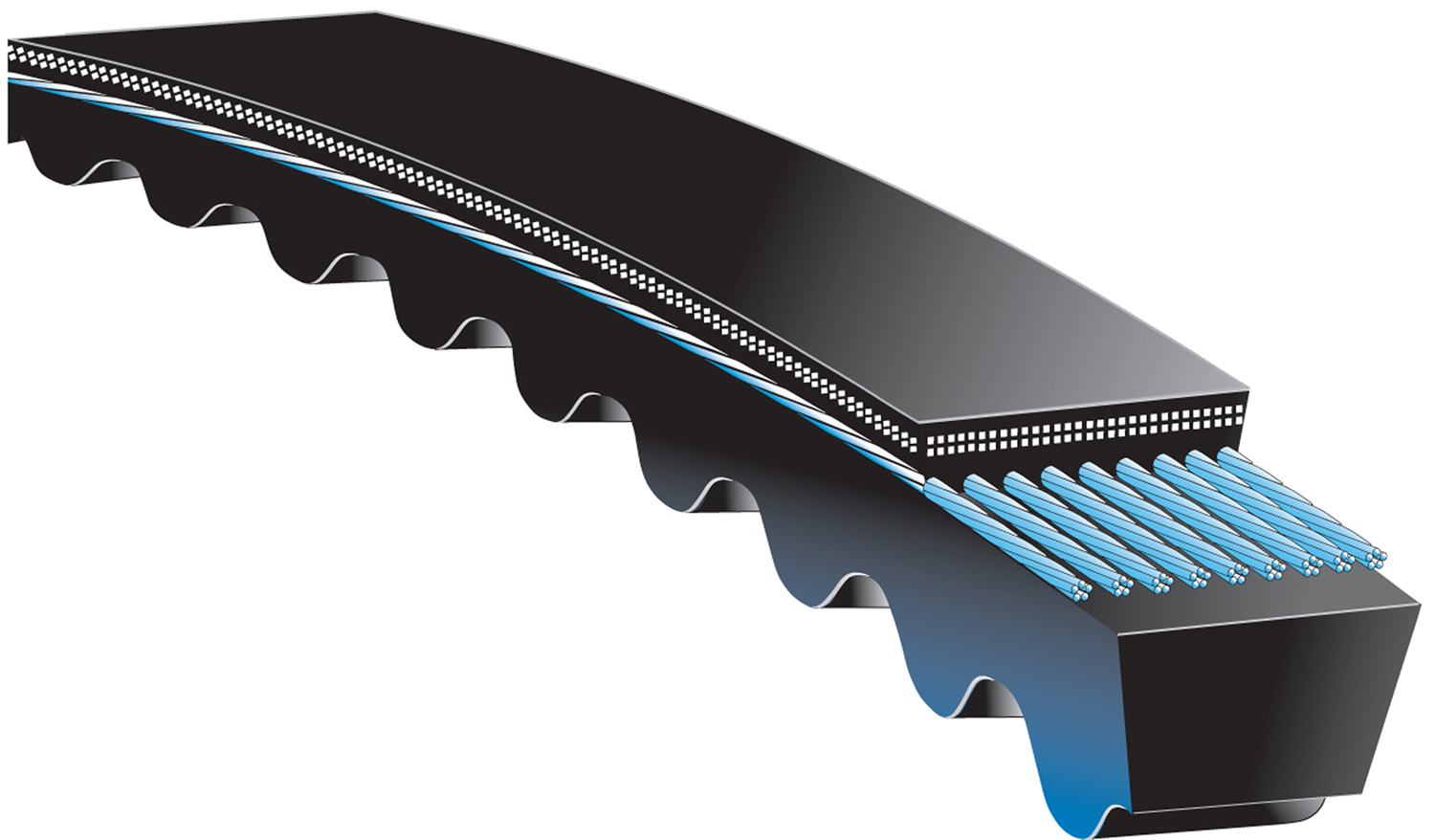

Gates 5VX840 Super HC Molded Notch V-Belt 5/8" x 84"

Manufacturer

Part Number

5VX840
Sale Price

$83.22

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Gates 5VX840 Super HC Molded Notch V-Belt is a high-performance narrow section belt engineered for industrial applications requiring maximum power transmission in compact spaces. This 5VX section belt measures 5/8 inch wide by 84 inches in outside length, featuring precision-molded notches that enhance flexibility for optimal performance on smaller diameter sheaves.

Key Features:

  • Patented ethylene elastomeric (EPDM) compound construction provides exceptional temperature resistance from -70°F to +250°F (-57°C to +121°C)
  • Proprietary Flex-Weave cover protects the belt core from oil, contaminants, and heat for extended service life
  • Flex-bonded tensile cords strongly adhere to the belt body for equal load distribution and resistance to fatigue and shock loads
  • Precision-ground straight sidewalls ensure uniform wedging action and proper fit in pulley grooves for even wear
  • Molded notches reduce thermal and bending stresses while promoting smoother, quieter operation with less slippage
  • More compact design compared to classical section V-belts, ideal for high horsepower, space-constrained applications
  • Meets ARPM/RMA IP-3-2 oil and heat resistance standards and IP-3-3 static conductivity requirements
  • REACH and RoHS 2 compliant for environmental safety

The Gates Super HC Molded Notch belt delivers up to 300% capacity increase over classical belts while reducing overall drive costs through decreased pulley, bearing, guard, and mount requirements. Engineered for demanding industrial environments including construction, mining, agriculture, HVAC, and general processing facilities.

Products specifications

Outside Circumference (in)

84

Outside Circumference (mm)

2134

Section

5VX

Top Width (in)

.62

Top Width (mm)

16

Outside Circumference (frac. in.)

84

Top Width (frac. in.)

5/8
