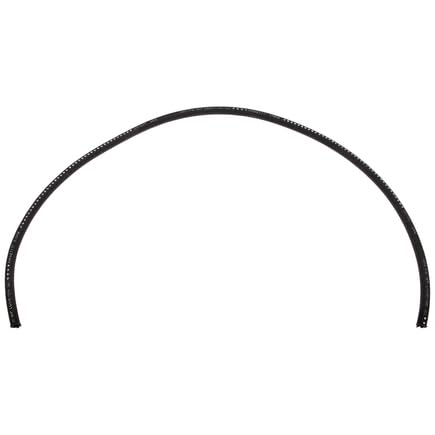

Gates 86691 LOC Series Lock-On Hydraulic Hose 1/4 Inch ID 50 Foot

Manufacturer

Part Number

86691
Sale Price

$222.90

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Gates 86691 is a LOC Series Lock-On hydraulic hose designed for low-pressure applications requiring petroleum-based hydraulic oils, water, glycol antifreeze solutions, engine lubricating oils, and air. This 1/4 inch inside diameter hose features a single fiber braid reinforcement and comes in a convenient 50-foot length.

Construction Features:

  • Tube: Black, oil-resistant synthetic rubber (Nitrile - Type C) highly resistant to degradation
  • Reinforcement: One fiber braid for flexibility and strength
  • Cover: Black, oil and mildew-resistant textile braided cover imprinted with synthetic rubber
  • Outside Diameter: 0.52 inches

Performance Specifications:

  • Working Pressure: 300 PSI
  • Minimum Burst Pressure: 1200 PSI
  • Temperature Range: -40°F to +250°F (-40°C to +121°C)
  • Air Use: Up to +160°F (+71°C) only
  • Bend Radius: 3 inches

Standards Compliance:

  • Meets SAE 30R2 performance requirements
  • Meets SAE 30R6 performance requirements
  • Meets SAE 30R7 performance requirements for fuel and B20 bio-diesel fuel transfer applications up to 125°F

This hose is compatible with Field Attachable LOC Couplings (G36 Series) and can be used with clamp over G37 single bead and G38 barbed fittings with clamp. Not recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels unless approved by Gates product application specialists.

Products specifications

Type

Hydraulic Hose

Hose Pressure Description

Low Pressure

Tube Description

Black, Oil-Resistant, Synthetic Rubber

Product Type

LOC 1-Fiber Braid Lock-On Hose

Industrial Description

4LOCX50FT
