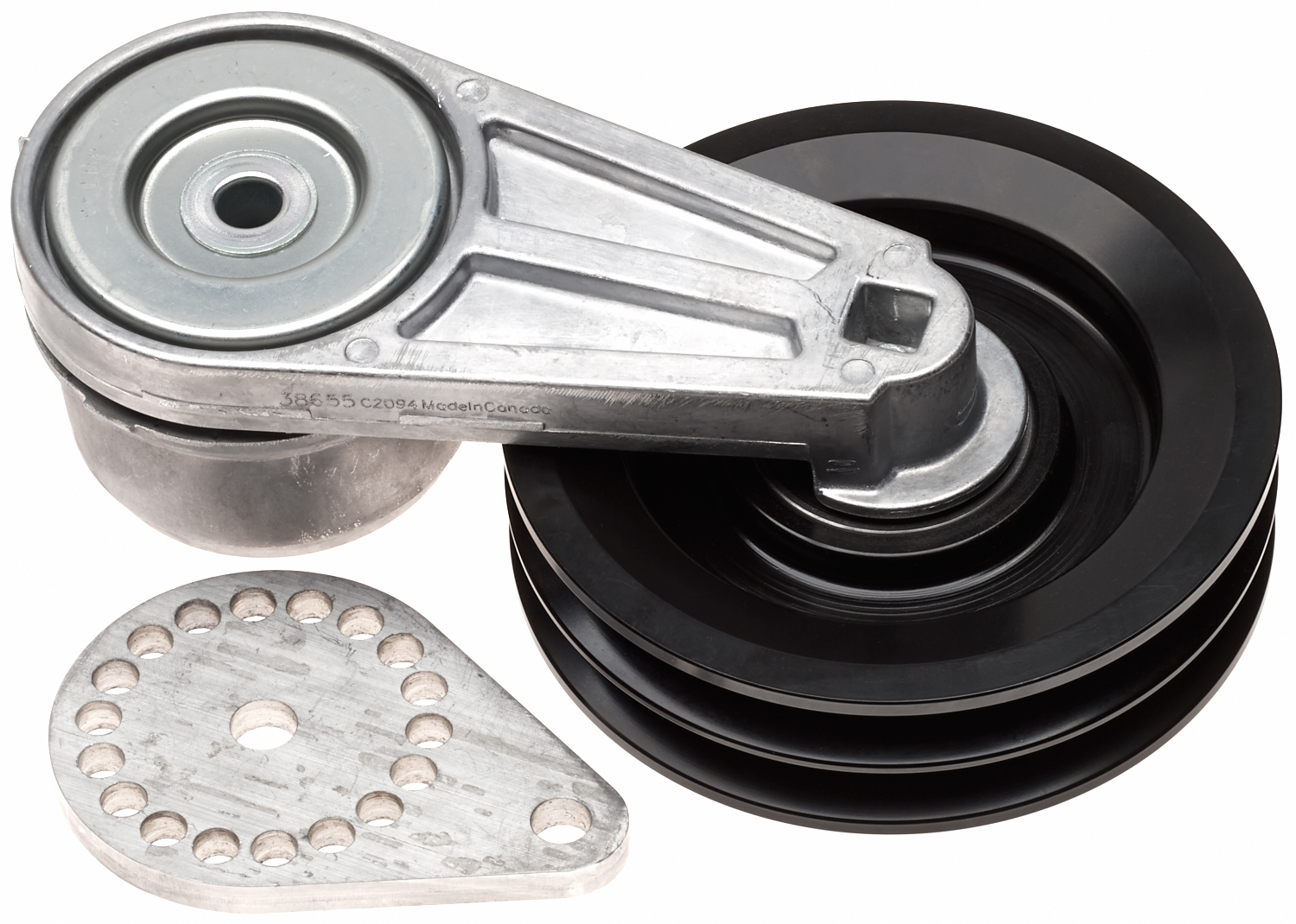

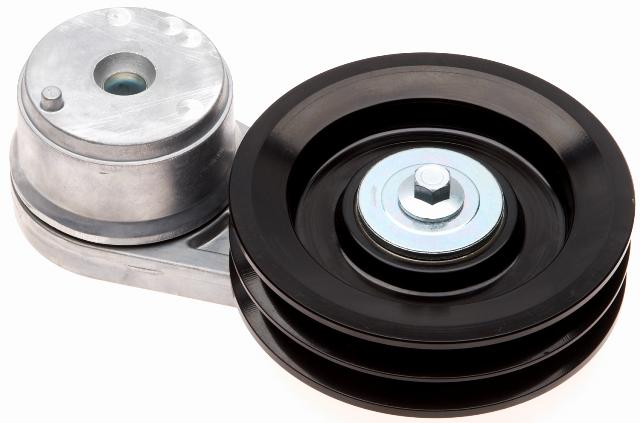

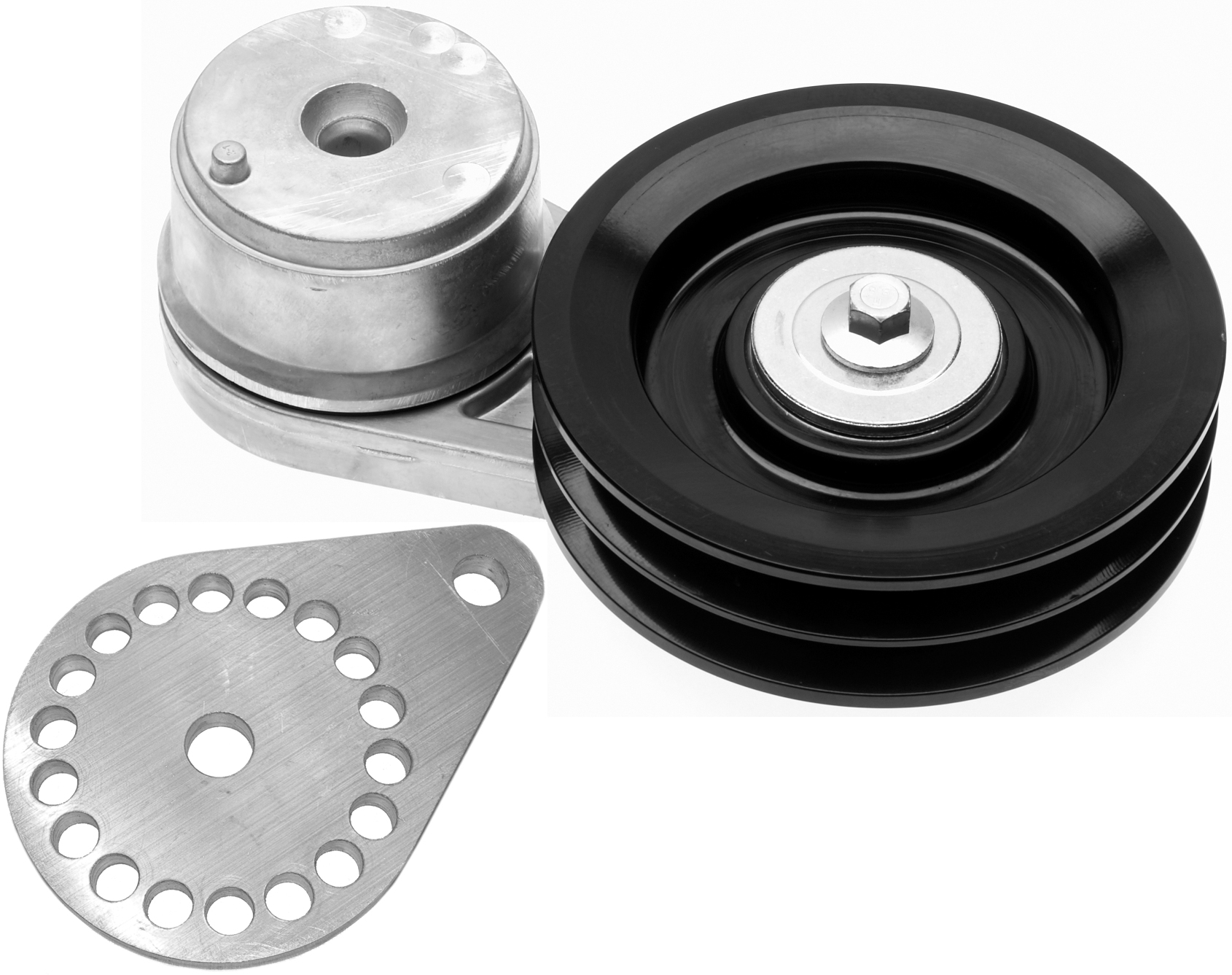

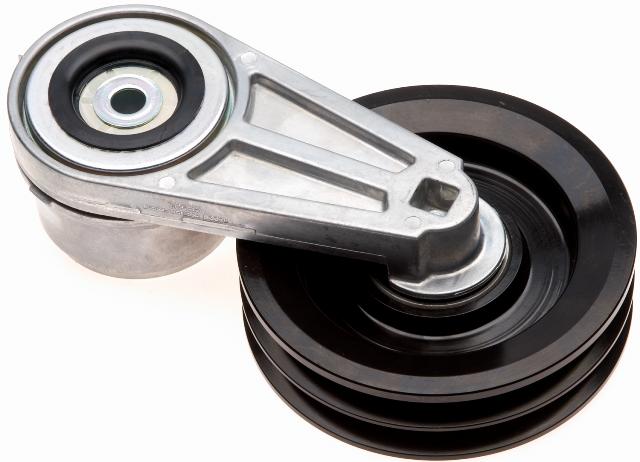

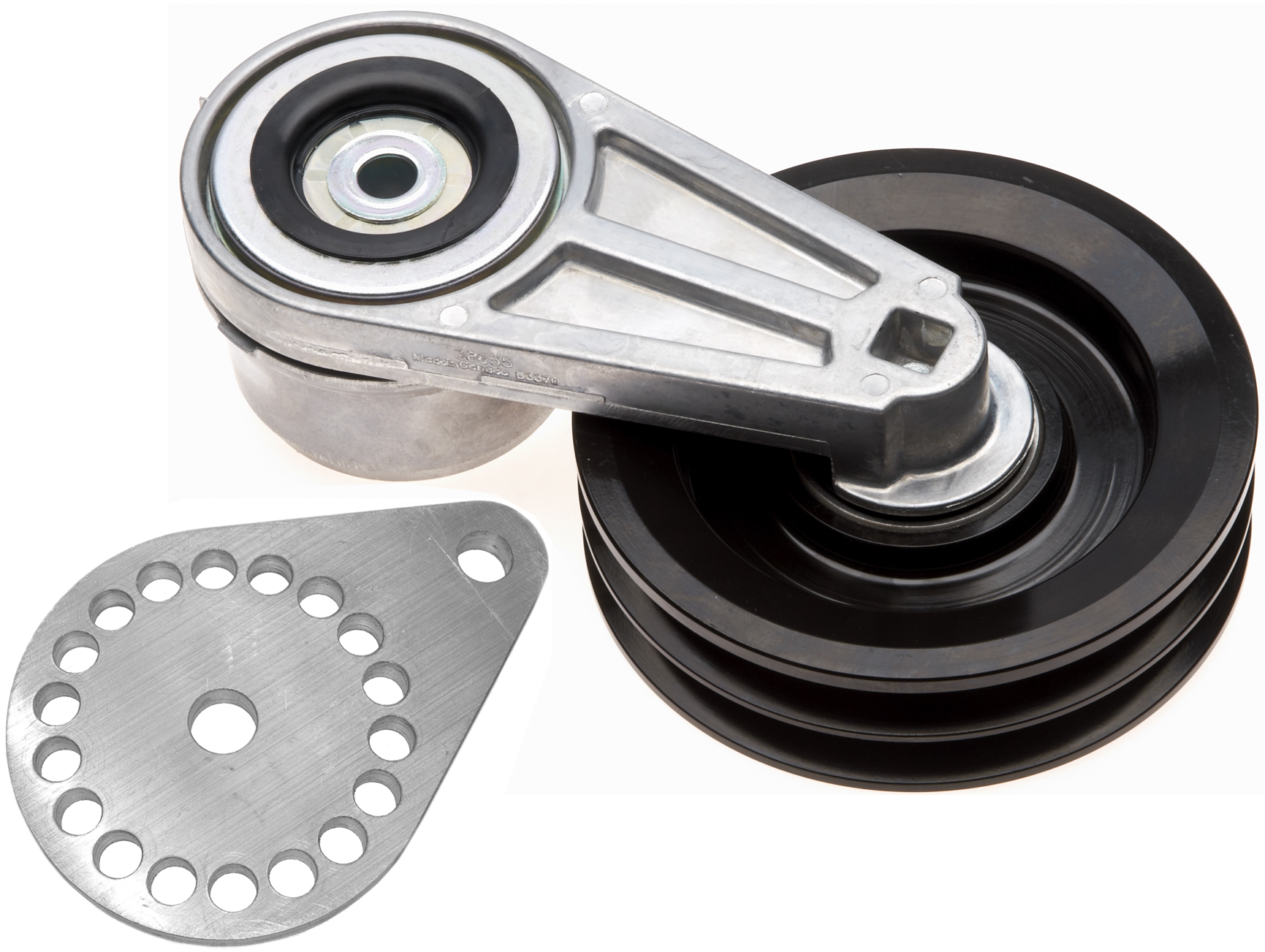

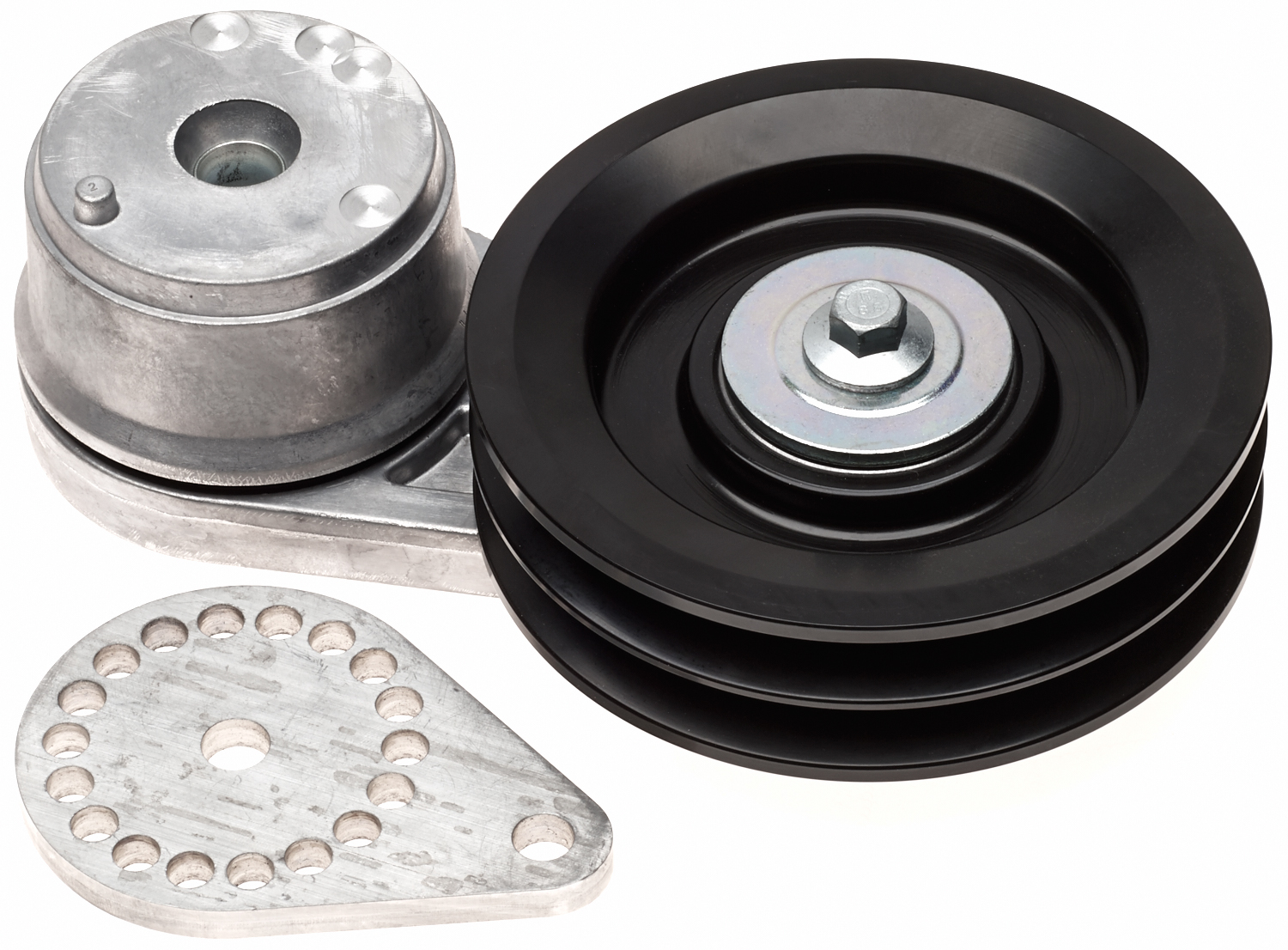

Gates 38655 Green Stripe DriveAlign Heavy Duty Belt Tensioner

Manufacturer

Part Number

38655
Black Friday Price

$401.18

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Gates 38655 Green Stripe DriveAlign Heavy Duty Belt Tensioner is engineered for commercial and heavy-duty accessory drive systems, delivering performance that meets or exceeds original equipment manufacturer (OEM) requirements. Part of the Gates Green Stripe® DriveAlign® product line, this tensioner is built to withstand the demands of high-load, high-cycle drive systems.

Gates Green Stripe® DriveAlign® tensioners are tested to last significantly longer than competitive aftermarket alternatives, making them a trusted choice for fleet and commercial applications. The patented design ensures precise belt alignment and consistent tension throughout the service life of the belt and drive system.

Key Features:

  • Patented DriveAlign Design – Provides superior belt alignment and consistent tension for improved drive efficiency and component life
  • Patented Damping Mechanism – Reduces vibration for maximum stability, extending the service life of the belt, tensioner, and accessory drive components
  • Twin-Row Bearing Design – Carries greater loads and outlasts single-bearing configurations
  • Chrome-Silicon Torsion Spring – Delivers superior flex-fatigue resistance compared to flat-wire spring designs
  • OEM-Matched Construction – Manufactured using the same technology as OEM parts to ensure a factory-quality fit and function
  • Torsional Round Spring – Provides consistent tension while resisting contamination ingestion
  • Assembly Bolt Included – Everything needed for installation is provided in the box

The Gates 38655 is the ideal replacement belt tensioner for heavy-duty applications where durability and precision are critical. Trust Gates engineering to keep your accessory drive system running smoothly mile after mile.

Products specifications

Contents

Tensioner Assy.

Outside Diameter (mm)

146

WIDTH (MM)

40.88

Number of Grooves

2

Bearing Bore Inside Diameter 1 (mm)

30

Contact Surface

V-Grooved

Instruction Sheet Number

98-1742

Number of Pulleys

1

Pulley 1 Flanged

No

Pulley 1 Groove Quantity

2

Outside Diameter 1 (in)

5.75

Outside Diameter 1 (mm)

146

Width 1 (in)

1.61

Width 1 (mm)

40.88
