Gates 5VX510 Super HC Molded Notch V-Belt 5VX Section 5/8" x 51"

Manufacturer

Part Number

5VX510
Sale Price

$31.66

1 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

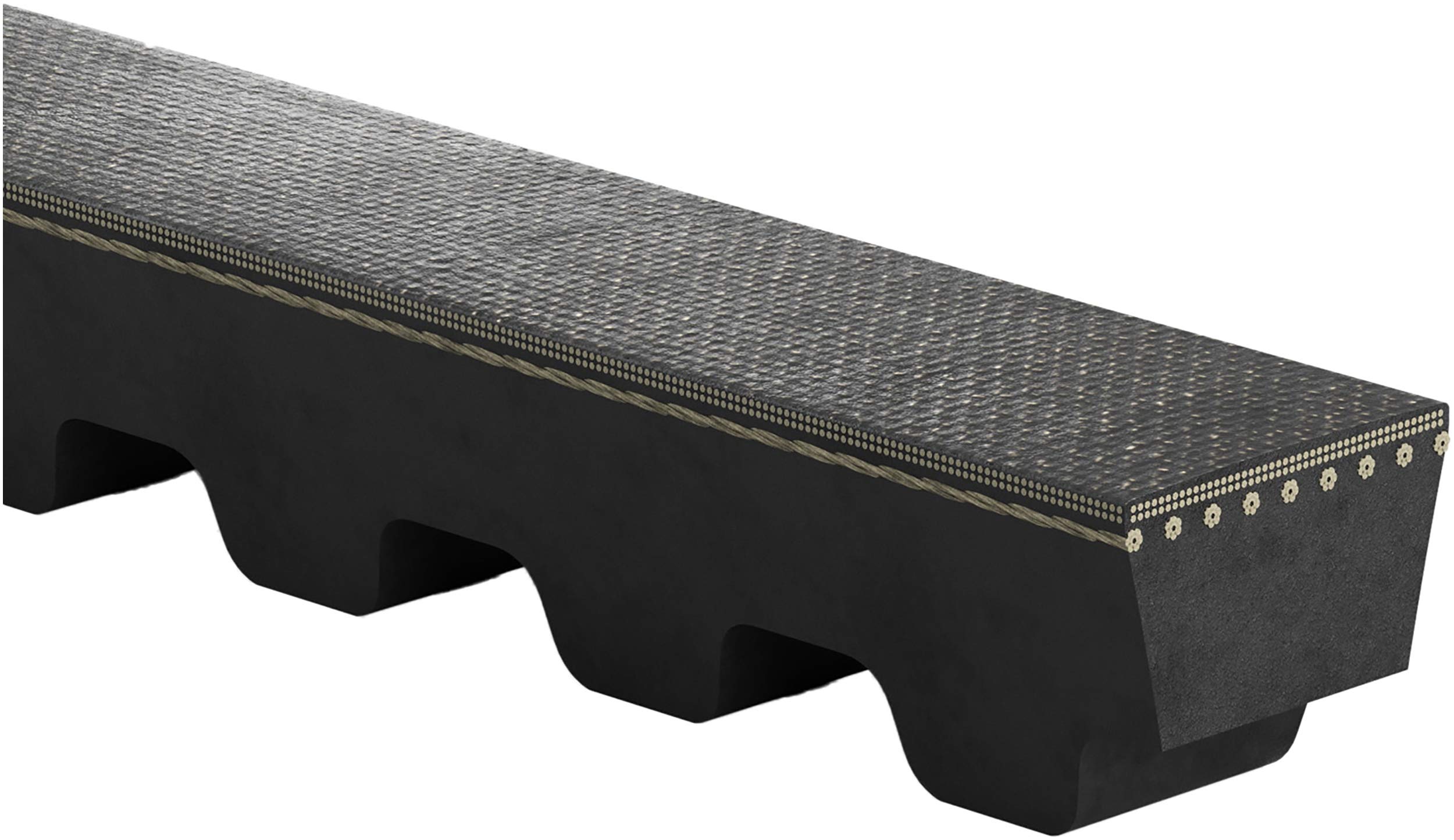

The Gates 5VX510 Super HC Molded Notch V-Belt is a high-performance, narrow-section power transmission belt engineered for demanding industrial and heavy-duty drive applications. With a 5VX cross-section, 5/8" (0.625") top width, and 51" outside circumference, this belt is purpose-built for drives where space, weight, and horsepower capacity are critical factors.

Key Features:

  • High Horsepower Capacity: Narrow 5VX section transmits up to three times the horsepower of comparably sized classical cross-section belts (A, B, C, D) within the same drive space
  • Molded Notch Design: Notches molded into the underside reduce and evenly distribute thermal and bending stresses, enabling use with smaller diameter sheaves without sacrificing strength or traction
  • EPDM Construction: Made from ethylene propylene diene monomer (EPDM) rubber for excellent resistance to weathering, oils, water, and solvents
  • Flex-Bonded Tensile Cords: Cords are vulcanized as a single solid unit, providing equal load distribution and resistance to tensile forces, flexing fatigue, and shock loads
  • Flex-Weave Cover: Patented cover construction delivers extended protection to the belt core against oil, dirt, and heat for longer service life
  • Precision-Ground Sidewalls: Machined straight sidewalls ensure uniform wedging action and proper seating in pulley grooves, reducing slip and wear
  • V80 Matching System: Meets Gates UNISET tolerances — all belts of the same type and size are precisely matched beyond RMA and ISO standards, ensuring even load distribution in multi-belt drives
  • Wide Temperature Range: Rated for operating temperatures from -65°F to +250°F, protecting against cracking in extreme environments
  • Static Conductive: Meets ISO 1813 static conductivity requirements; suitable for use in ATEX-rated environments per Directive 2014/34/EU
  • Compliant: REACH and RoHS 2 compliant

Specifications:

  • Gates Part Number: 5VX510
  • Gates Code: 9414-0510
  • Section: 5VX (Narrow Wedge)
  • Top Width: 0.625" (5/8")
  • Nominal Thickness: 0.55" (35/64")
  • Outside Circumference: 51"
  • Weight: 0.52 lbs

The Gates 5VX510 is recommended for all industrial heavy-duty, narrow-section V-belt drives — especially applications involving high speeds, high-speed ratios, or small pulley diameters. Its compact design allows for reduced pulley, bearing, guard, and mount sizes, delivering both cost and space savings over classical V-belt configurations.

Products specifications

Outside Circumference (in)

51

Outside Circumference (mm)

1295

Section

5VX

Top Width (in)

.62

Top Width (mm)

16
