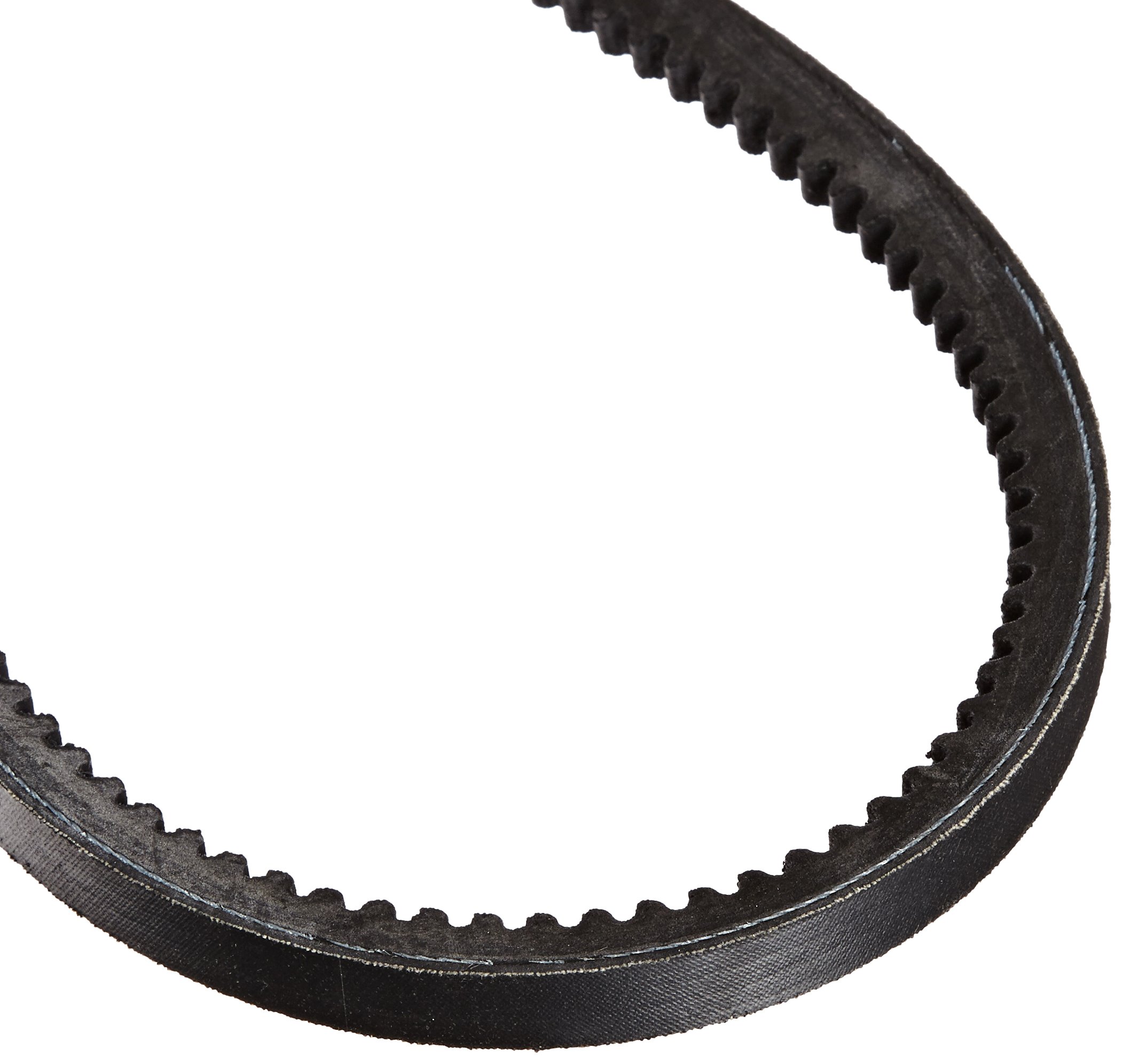

Gates 5VX950 Super HC Molded Notch V-Belt 5/8" x 95"

Manufacturer

Part Number

5VX950
Sale Price

$76.87

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Gates 5VX950 Super HC Molded Notch V-Belt is an industrial-grade power transmission belt engineered for high horsepower applications where space and weight are limited. This narrow section V-belt features a 5VX cross-section with 5/8" top width, 95" outside length, and cogged construction for superior flexibility and performance.

Key Features:

  • Transmits up to 3X the horsepower versus comparably sized classical V-belts

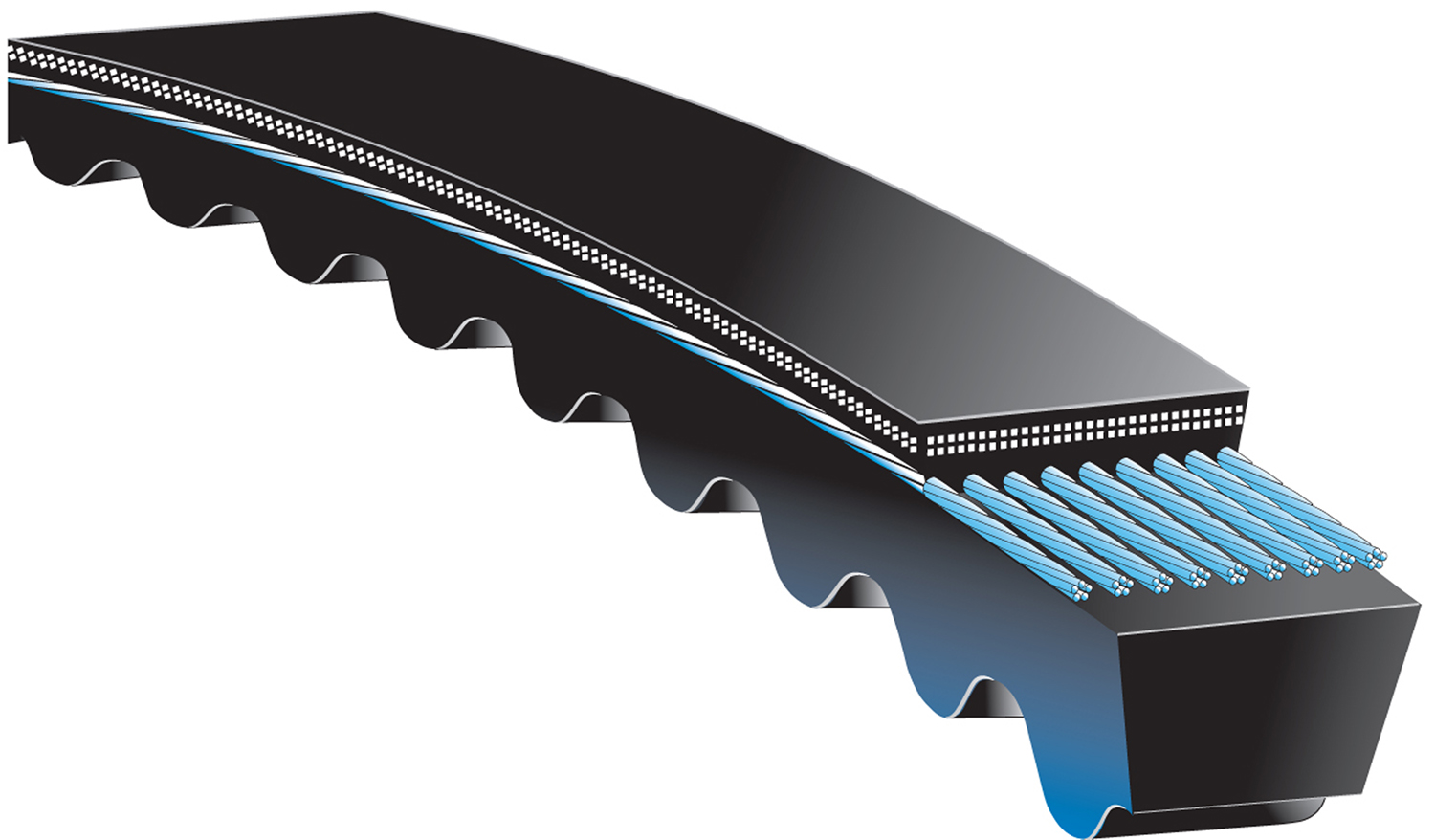

  • Patented ethylene elastomer (EPDM) construction with molded notches for increased flexibility and transmission efficiency
  • Operating temperature range of -60°F to 250°F for extreme environment reliability
  • Precision-ground straight sidewalls ensure proper fit in pulley grooves and extended belt life
  • Flex-bonded polyester tensile cords resist fatigue, flexing forces, and shock loads
  • Oil and heat resistant, meets ARPM/RMA IP-3-2 standards
  • Static conductive per ISO 1813, ATEX compliant
  • Meets Gates V80 system matching tolerances - can be installed without matching
  • REACH and RoHS 2 compliant

Applications:

Highly recommended for industrial heavy-duty applications requiring small pulley diameters, high speeds, or high-speed ratios. Ideal for manufacturing equipment, agricultural machinery, and industrial drives where compact design and reliable power transmission are essential. Offers significant cost and space savings by reducing the size of pulleys, bearings, guards, and mounts compared to traditional V-belts.

Specifications:

  • Section: 5VX
  • Top Width: 5/8" (0.625")
  • Nominal Outside Length: 95"
  • Effective Length: 94.847"
  • Height/Thickness: 0.55"
  • Material: Ethylene Elastomer (EPDM)
  • Construction: Cogged/Molded Notch
  • Color: Black

Products specifications

Outside Circumference (in)

95

Outside Circumference (mm)

2413

Section

5VX

Top Width (in)

.62

Top Width (mm)

16

Outside Circumference (frac. in.)

95

Top Width (frac. in.)

5/8
