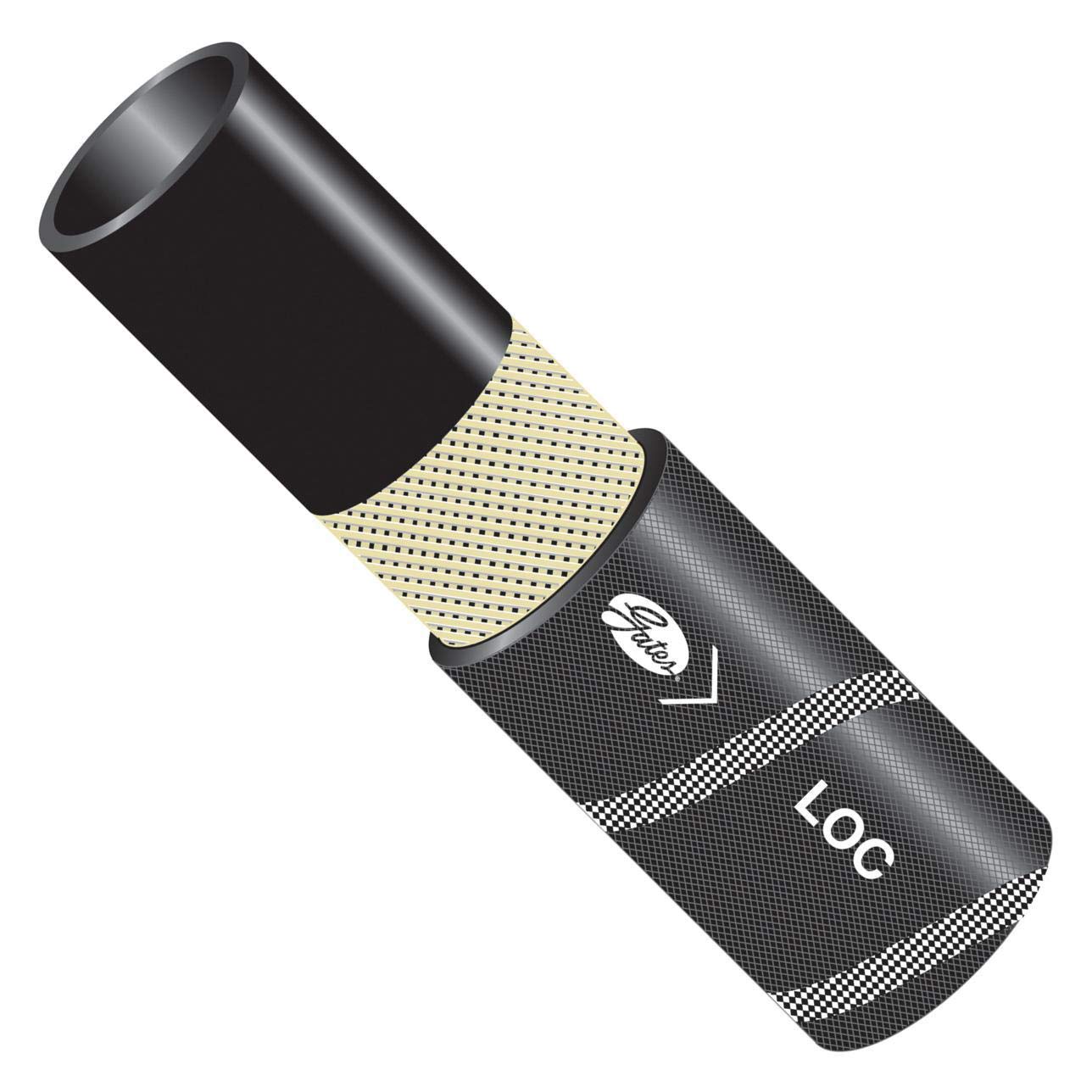

Gates 86692 LOC 3/8" x 50' Low Pressure Hydraulic Hose

The Gates 86692 is a 3/8-inch inner diameter, 50-foot low-pressure hydraulic hose featuring single fiber braid Lock-On construction. This versatile hose is engineered for reliable fluid transfer in a wide range of low-pressure hydraulic and pneumatic applications.

Key Features:

• 3/8" (dash -6) inner diameter x 50-foot length
• Single fiber braid reinforcement for flexibility and strength
• Black nitrile inner tube resistant to petroleum-based hydraulic oils
• Oil and mildew resistant textile braided cover impregnated with synthetic rubber
• Temperature range: -40°F to +250°F (-40°C to +121°C) for hydraulic oils
• Temperature range: -40°F to +160°F (-40°C to +71°C) for air applications
• Meets SAE 30R2, SAE 30R6, and SAE 30R7 performance requirements
• Compatible with Field Attachable LOC Couplings (G36 Series), G37 single bead, and G38 barbed fittings with clamp

Recommended Applications:

Ideal for petroleum-based hydraulic oils, glycol antifreeze compounds, water, engine lubricating oils, and air. This hose is suitable for agricultural equipment, mobile machinery, construction equipment, and general low-pressure hydraulic systems. Also approved for fuel and B20 biodiesel fuel transfer applications up to +125°F.

Important Notice: Lock-On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings. Always verify system compatibility and pressure requirements before installation.
