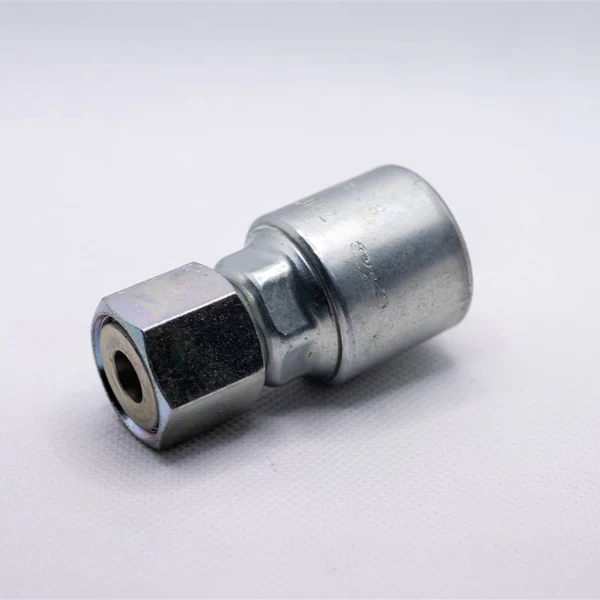

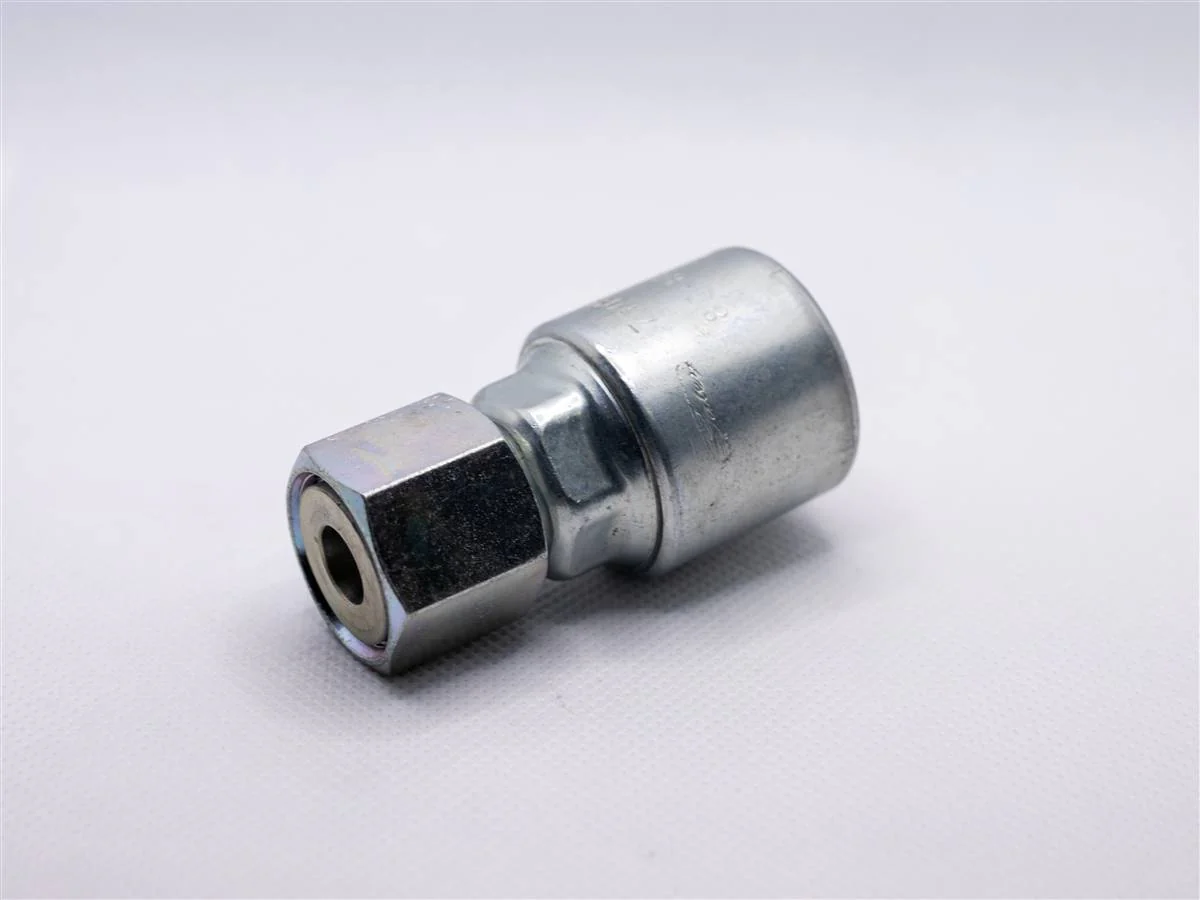

Gates G25230-1212 MegaCrimp Female Flat-Face O-Ring Swivel Hydraulic Coupling - 3/4 Inch

The Gates G25230-1212 is a MegaCrimp hydraulic coupling featuring a female flat-face O-ring swivel design for 3/4 inch hose applications. This high-performance coupling is engineered with Gates' patented "C" insert technology that delivers leak-proof, concentric crimping and accommodates hoses with different constructions and wall thicknesses.

Key Features:

• Patented "C" insert ensures weep-free concentric crimping to prevent leaks and protect the environment
• Surpassed one million impulse cycles during rigorous design testing
• SAE J1453 O-Ring Face Seal (ORFS) connection provides reliable sealing performance
• TuffCoat plating delivers superior corrosion resistance—5x more intense than industry standards
• Compatible with both one-wire and two-wire braid hydraulic hoses
• Fully integrated with Gates MegaSys hydraulic hose systems
• Large holding shoulder evenly distributes stress forces to prevent coupling failure
• Thread size: 1-3/16-12 for secure connection
• Overall length: 3.65 inches with 1.65 inch cutoff dimension

MegaCrimp couplings set the industry standard for hydraulic connections, offering exceptional durability in demanding applications exposed to sun, dirt, oil, and rain. The evenly distributed crimping forces eliminate the risk of leaks caused by improper installation, while the robust construction withstands the harsh conditions found in heavy equipment, construction machinery, agricultural equipment, and industrial hydraulic systems.
