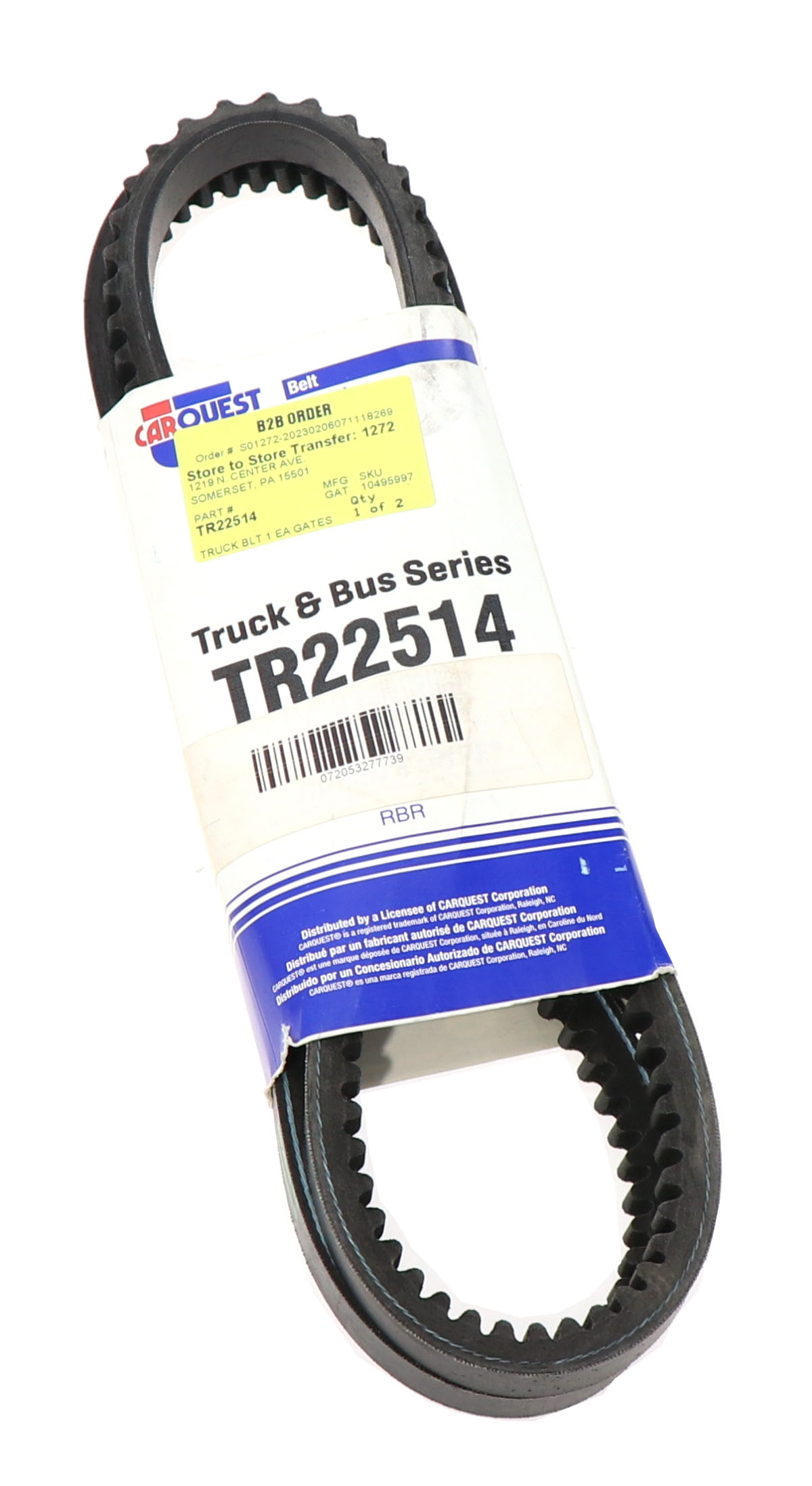

Gates TR22514 Green Stripe Heavy Duty Truck and Bus V-Belt 5/8" x 52"

Manufacturer

Part Number

TR22514
Sale Price

$22.34

In Stock (10)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

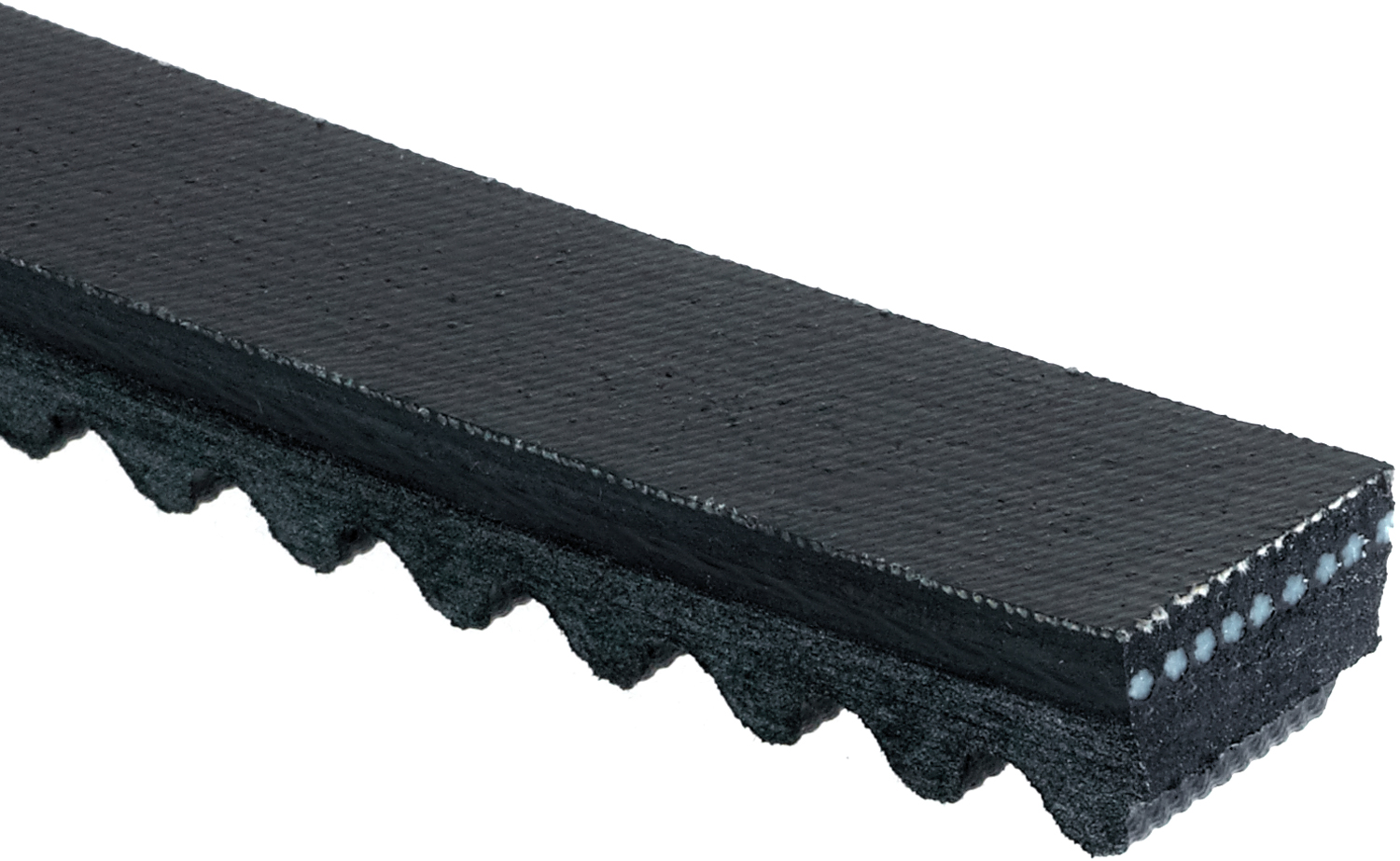

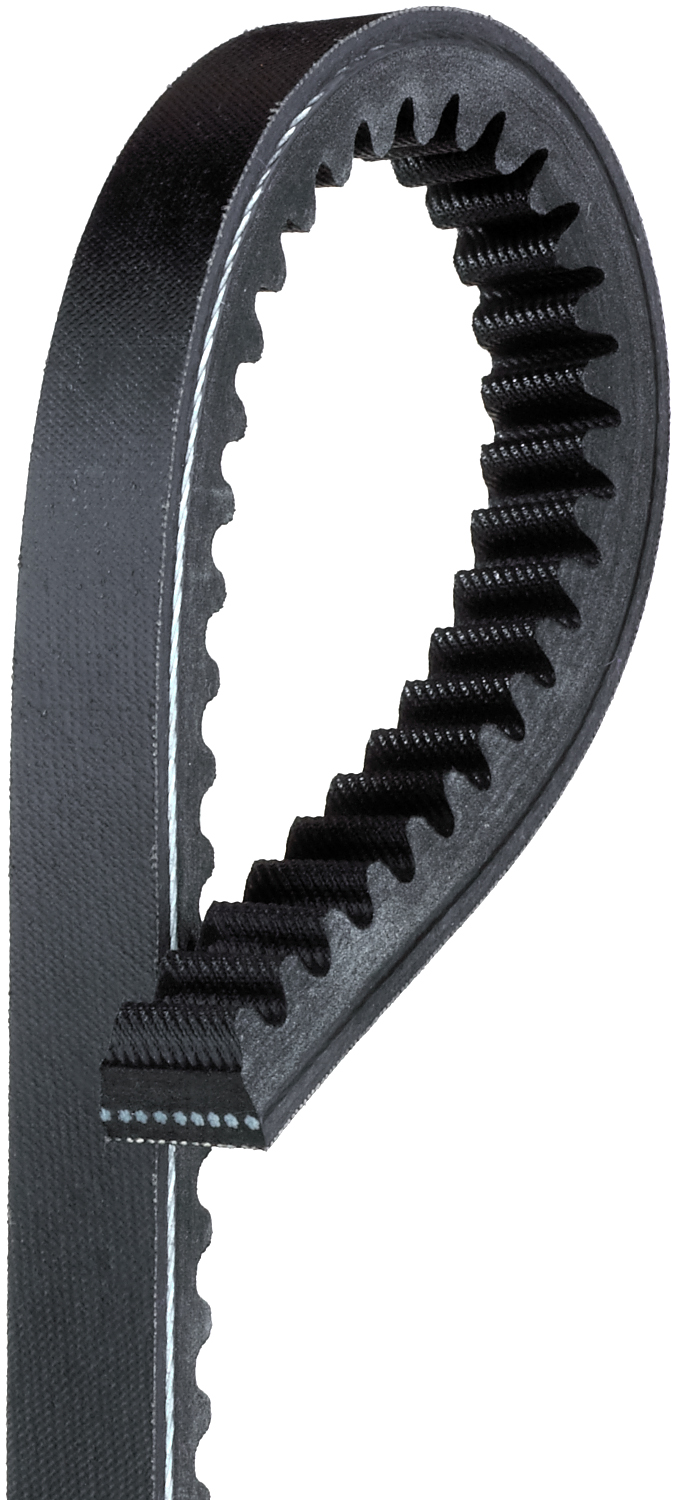

The Gates TR22514 Green Stripe Truck and Bus V-Belt is engineered specifically for heavy-duty truck, bus, and off-road equipment applications where reliability is critical. This professional-grade accessory drive belt features a 5/8-inch (15mm) top width and 52-inch outside circumference, making it ideal for demanding commercial vehicle environments.

Key Features:

  • Heavy-Duty EPDM Construction: Made from oil and heat-resistant EPDM rubber with polyester backing for maximum durability in extreme conditions
  • Notched Design: Molded notches reduce bending stress on small diameter pulleys while dissipating heat and preventing cracking
  • High-Strength Tensile Cords: Special tensile cords provide superior stretch resistance and maintain proper tension throughout the belt's service life
  • Shock Load Absorption: Designed to absorb normal shock loads without damage to the belt, protecting your drive system
  • SAE Certified: Meets SAE J636b and SAE J637 specifications for commercial vehicle applications
  • 40-Degree Angle: Precision-engineered v-angle ensures optimal grip and power transmission

This Green Stripe series belt is built to Gates' exacting standards for commercial fleet applications, offering reliable performance in fan, alternator, and accessory drive systems. The combination of heat resistance, durability, and shock absorption makes it an excellent choice for heavy-duty trucks and buses operating under challenging conditions.

Products specifications

Notched

Yes

Outside Circumference (in)

51.92

Outside Circumference (mm)

1319

Section

RA

Top Width (in)

.59

Top Width (mm)

15

Outside Circumference (frac. in.)

52

Top Width (frac. in.)

19/32
