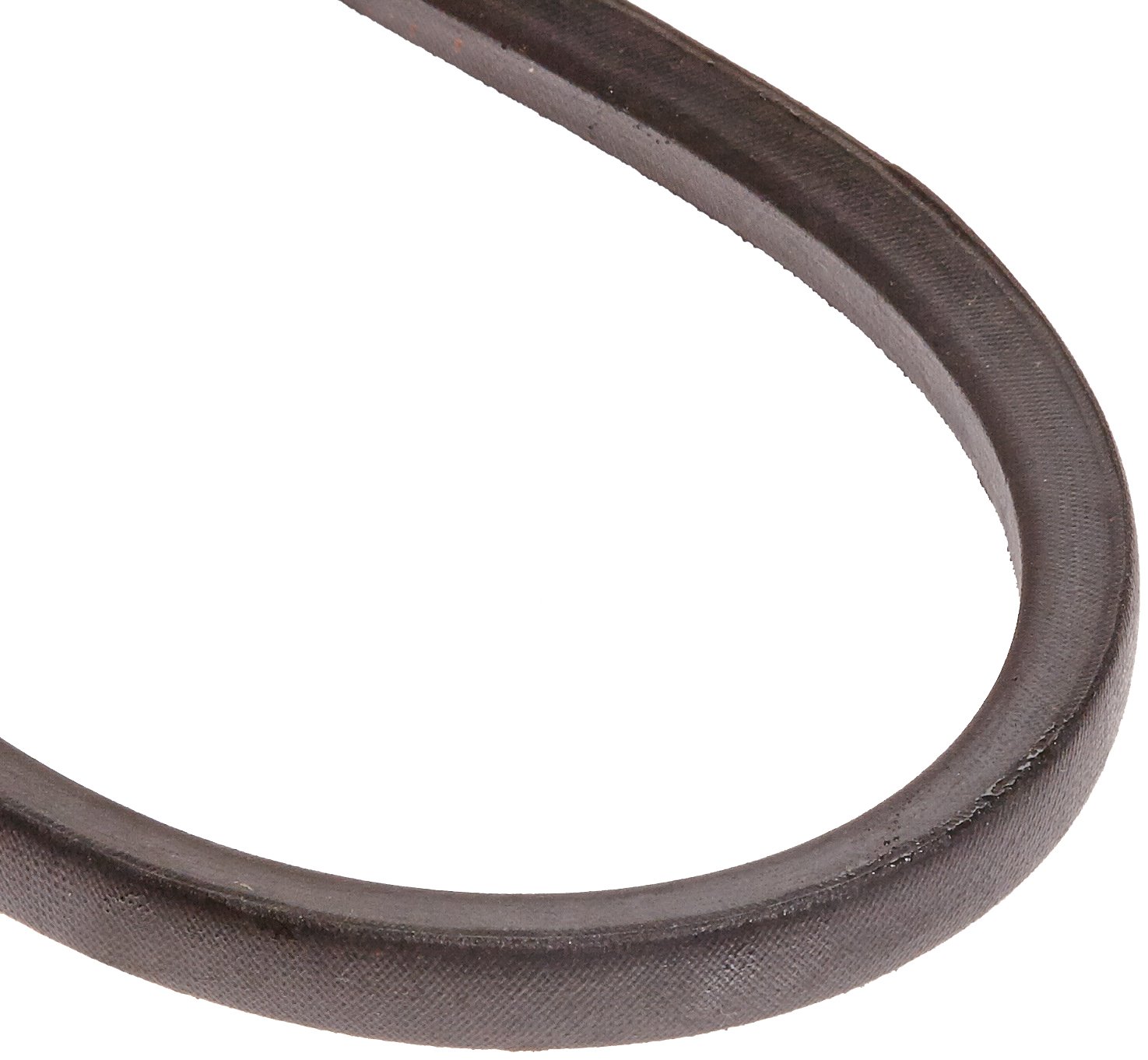

Gates A24 Hi-Power II Classical V-Belt Accessory Drive Belt

The Gates A24 Hi-Power II is a classical wrapped V-belt with an A-section profile, featuring a 1/2 inch top width, 5/16 inch thickness, and 26 inch outside circumference. This V-belt has a long-standing reputation for reliability in agricultural and industrial power transmission applications, including HVAC systems, conveyor systems, centrifugal pumps, air compressors, and crushers.

Key Features:

• Flex-Weave oil and heat resistant cover with patented fabric construction protects the belt core from oil, dirt, and heat
• Flex-bonded polyester cords strongly adhere to the belt body for equal load distribution and absorption of bending stress without cord deterioration
• Arched top provides superior strength to prevent dishing and distortion of the tensile section
• Concave sidewalls and rounded corners ensure uniform tensile loading and pulley contact for excellent service life
• EPDM material engineered to combat self-igniting, preventing fire from heat buildup even with severe slippage
• Machined belt edge for even sheave groove contact, resulting in smoother operation and reduced wear

Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. Operating temperature range: -30°C to +60°C (-22°F to +140°F). REACH and RoHS 2 compliant.
