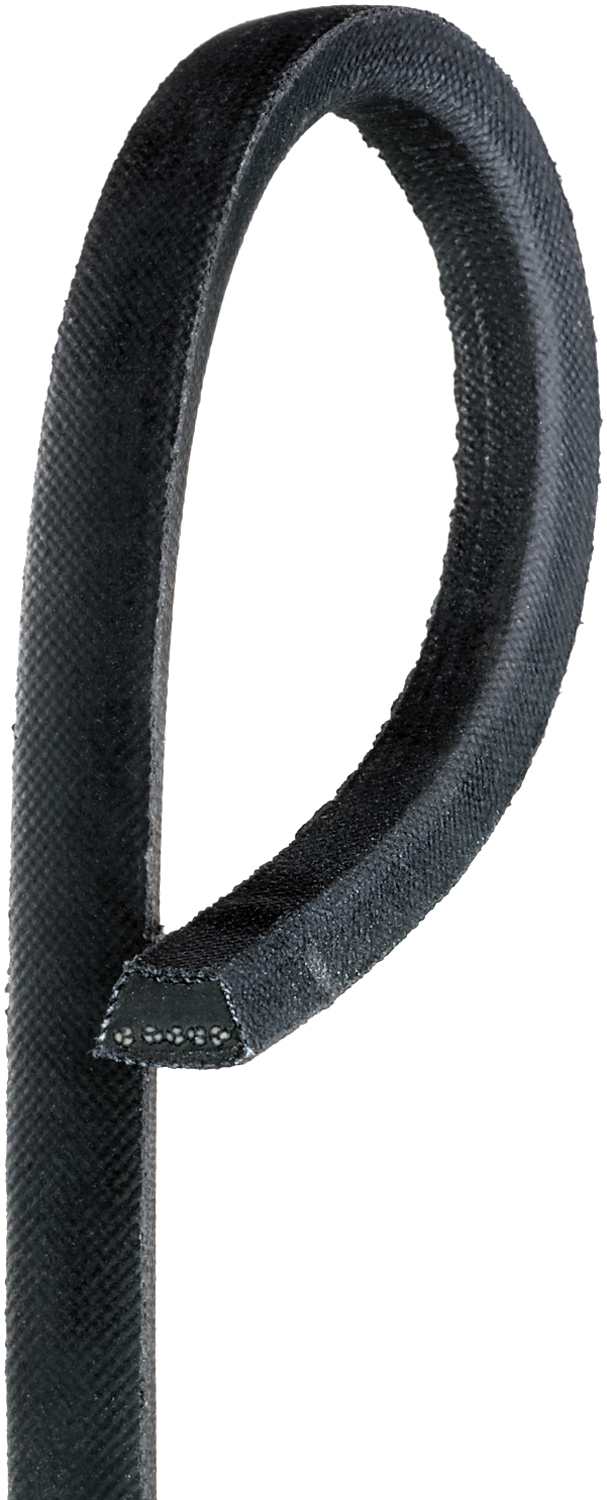

Gates 1360 Truflex FHP V-Belt 3L360 3/8 x 36 Inch

The Gates 1360 Truflex belt is a fractional horsepower (FHP) V-belt engineered with superior length stability for minimal take-up requirements, making it ideal for all industrial light-duty applications including FHP motors and applications using backside idlers. This belt features a 3L360 cross-section with a top width of 3/8 inch, height of 7/32 inch, and an effective length of 35.68 inches (36-inch outside circumference).

Key Features:

• Flex-bonded cords are strongly secured to the belt body for equal load distribution and absorption of bending stress without cord deterioration
• Gates Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life
• Flex-Weave cover construction delivers longer cover life with extended protection from oil, dirt, and heat
• Meets RMA oil and heat-resistant standards and static conductivity requirements
• Thin profile designed for small-diameter sheaves with lower cord positioning to improve performance on light-duty belt drives

Recommended for lower horsepower lawn and garden equipment, heating and home air conditioning drives, light-duty appliances, shop applications, and miscellaneous fractional horsepower applications.
