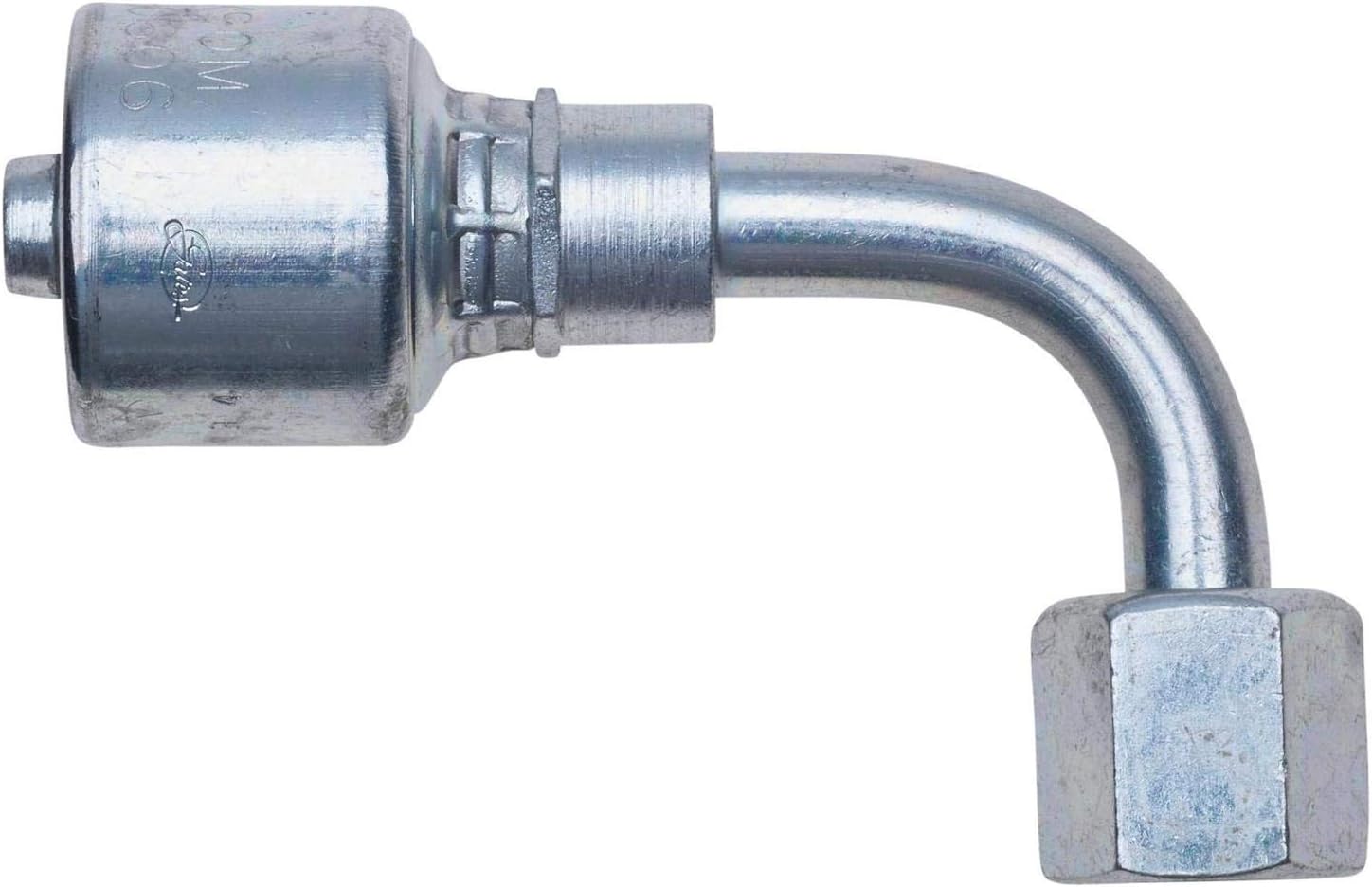

Gates G25180-0606 MegaCrimp Hydraulic Hose Coupling 90 Degree Elbow 3/8 Inch

The Gates G25180-0606 MegaCrimp hydraulic hose coupling is a premium 90-degree elbow fitting designed for reliable hydraulic hose connections. This coupling features a 9/16-18 female JIC 37° flare swivel connection on one end and a crimp connection on the other, making it ideal for tight-space installations where a right-angle configuration is required.

Key Features:

• Patented MegaCrimp technology with innovative "C" insert for leak-proof performance
• 90-degree bent tube design for routing in confined spaces
• 9/16-18 JIC 37° female flare swivel connection
• 3/8 inch nominal hose size compatibility
• Low carbon steel construction with zinc plating for corrosion resistance
• Surpassed one million impulse cycles during design testing
• Compatible with both one-wire and two-wire hydraulic hoses
• Overall length: 3.01 inches

The MegaCrimp "C" insert technology ensures even distribution of crimping forces to form a concentric seal, eliminating weeps and leaks while keeping equipment and the environment clean. This design accommodates different hose constructions and wall thicknesses, simplifying inventory requirements. Fully qualified as an EN-performance coupling, this fitting meets demanding hydraulic system standards. Alternate part number: 6G-6FJX90M.
