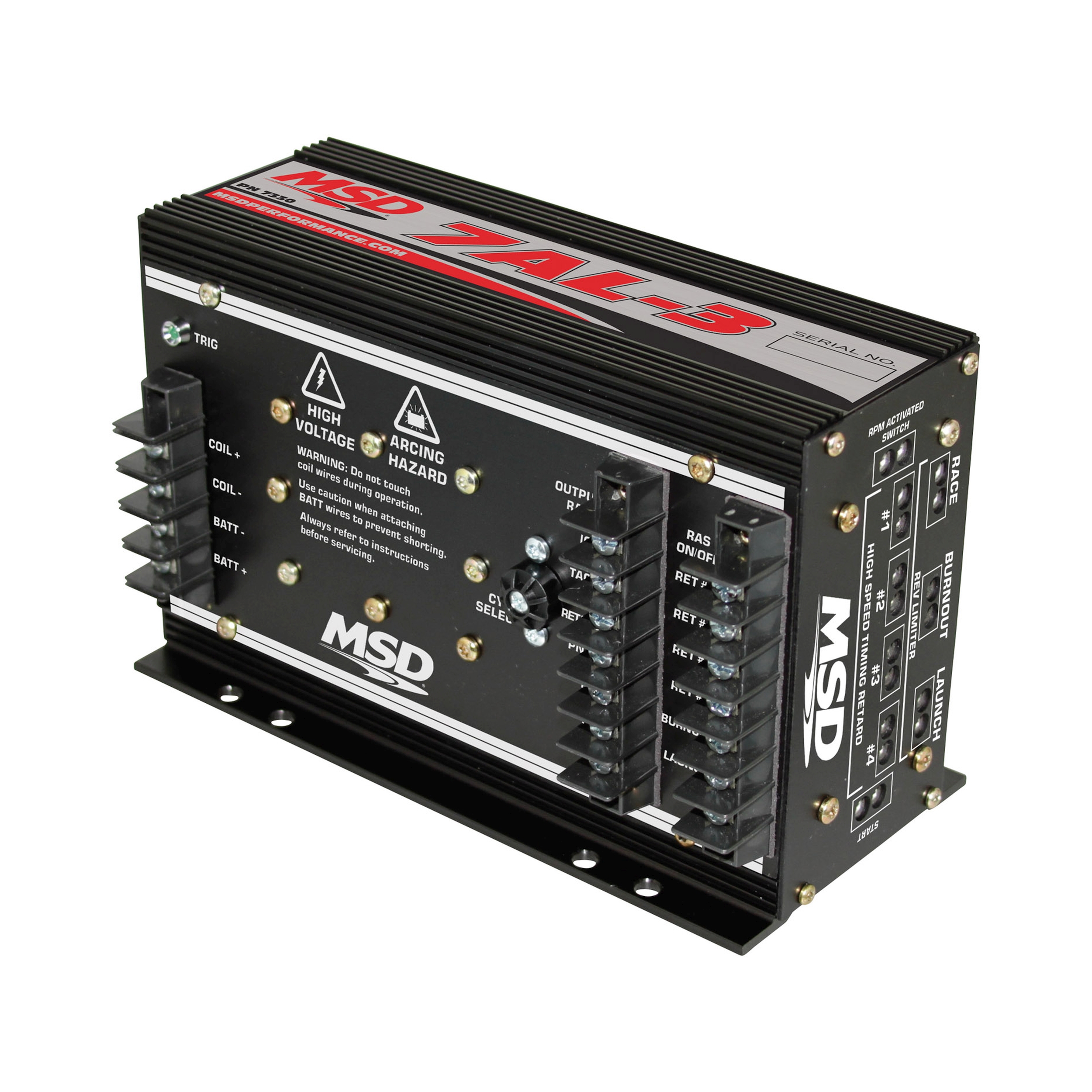

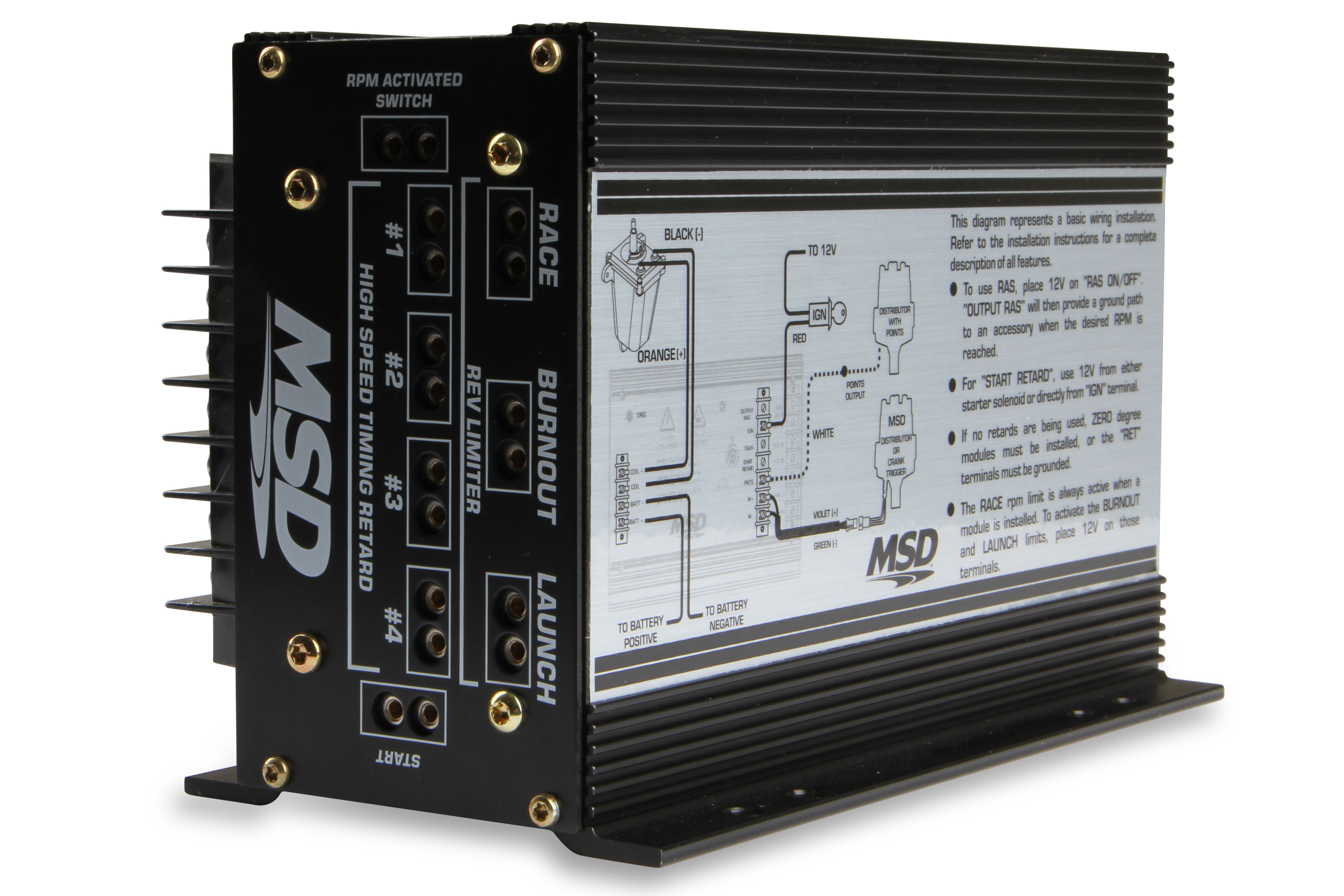

MSD 7330 7AL-3 Ignition Control Box with 3-Step Rev Limiter and 4-Stage Retard

The MSD 7330 7AL-3 Ignition Control is a high-output capacitive discharge ignition box engineered for serious drag racers who demand full control over rev limiting and timing at every stage of a run. Featuring a 3-step rev limiter, 4-stage multi-step retard, and an RPM-activated switch, the 7AL-3 puts precise engine management directly at your fingertips. All settings are adjusted via convenient plug-in modules, making tuning quick and repeatable at the track.

The built-in 3-Step Rev Control allows you to dial in one rev limit for the burnout box, a second for staging, and a third for top-end engine protection in the event of driveline failure. For nitrous oxide applications, the four independent retard stages can be activated separately yet stack together for progressive timing pull, giving nitrous racers maximum flexibility and engine protection. Start retard is also fully adjustable using plug-in retard modules, reducing cranking stress on the starter and flywheel.

The 7AL-3 delivers a powerful 160 mJ spark energy with a primary voltage of 570V and a secondary voltage of up to 50,000V (tested with MSD Pro Power Coil 8201). Spark series duration covers 20 degrees of crankshaft rotation for a thorough, reliable ignition event. The unit operates across a broad voltage range of 12–18 volts (negative ground) and supports 4, 6, and 8-cylinder engine configurations. A diagnostic trigger LED monitors the trigger input signal for quick troubleshooting. The black anodized housing shares the same mounting footprint as the original red 7AL-3, making it a direct upgrade for existing installations. The unit ships with a variety of RPM and timing plug-in modules included.

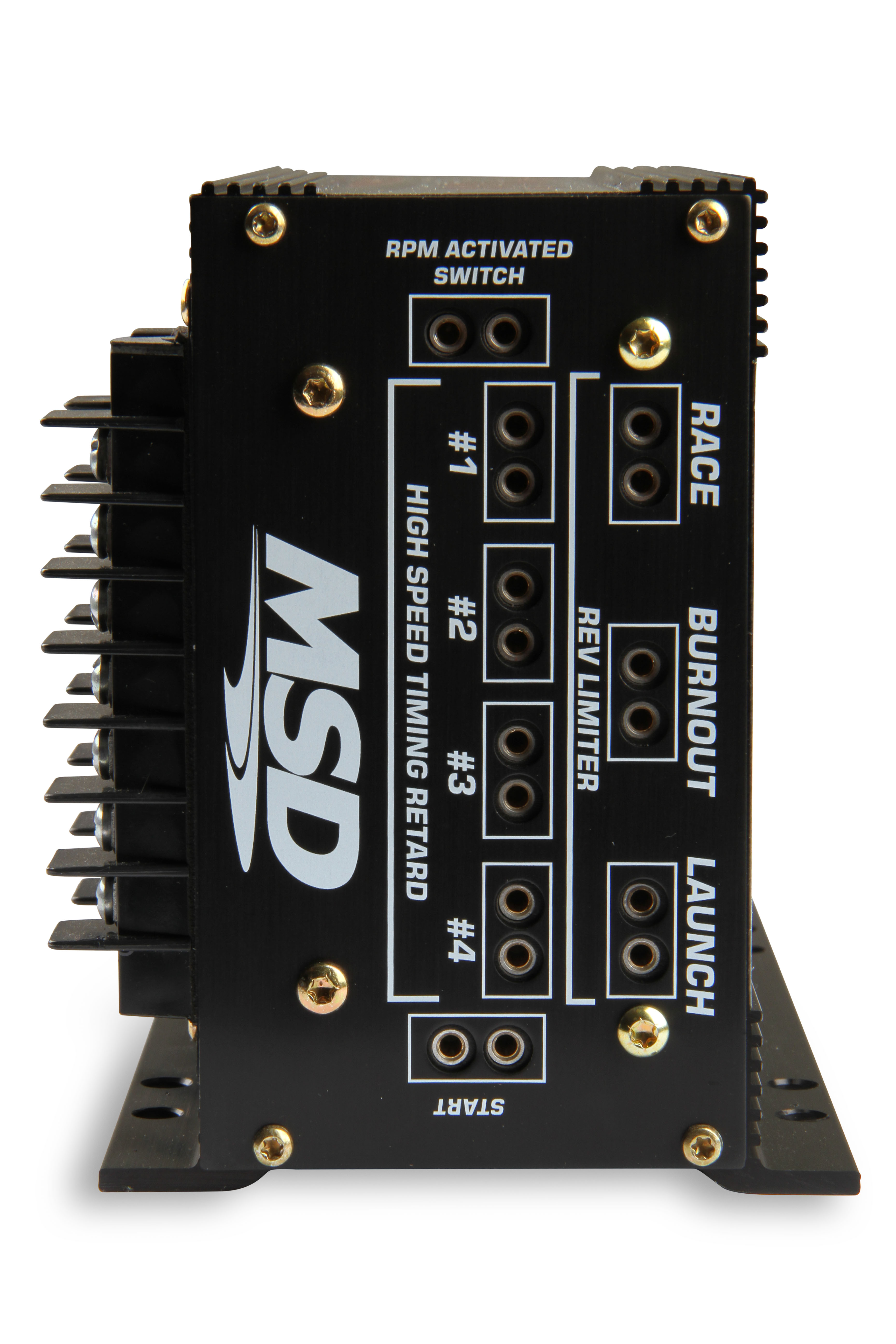

Key Features:

• 3-Step Rev Limiter — independent limits for burnout, staging, and top-end protection
• 4-Stage Multi-Step Retard — ideal for nitrous oxide applications with stackable independent stages
• RPM Activated Switch — trigger an external circuit at a precise RPM point
• Adjustable Start Retard — plug-in modules for 10° or 20° of cranking retard

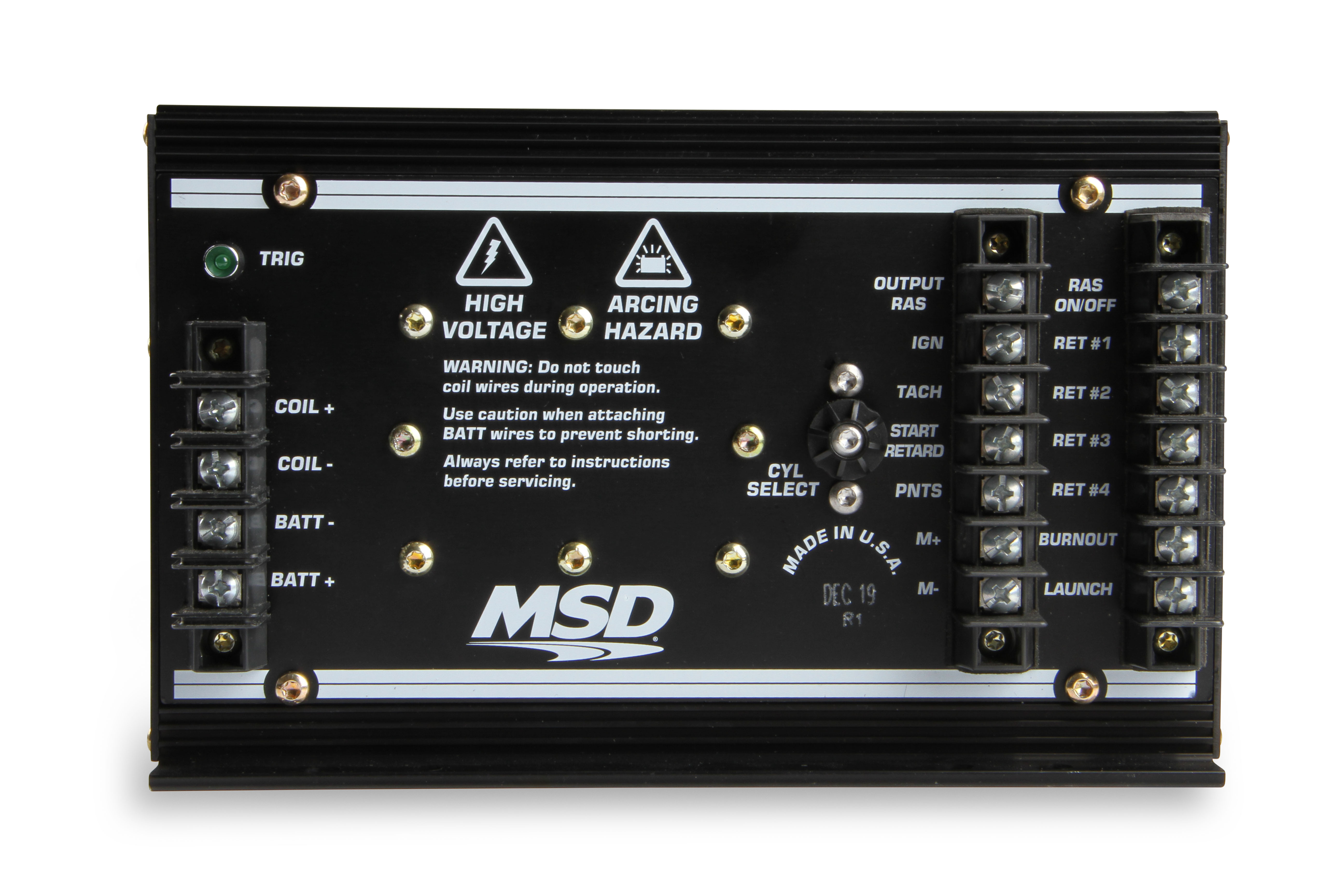

• Diagnostic Trigger LED — monitors trigger input for fast, accurate diagnostics
• Cylinder Select — compatible with 4, 6, and 8-cylinder engines

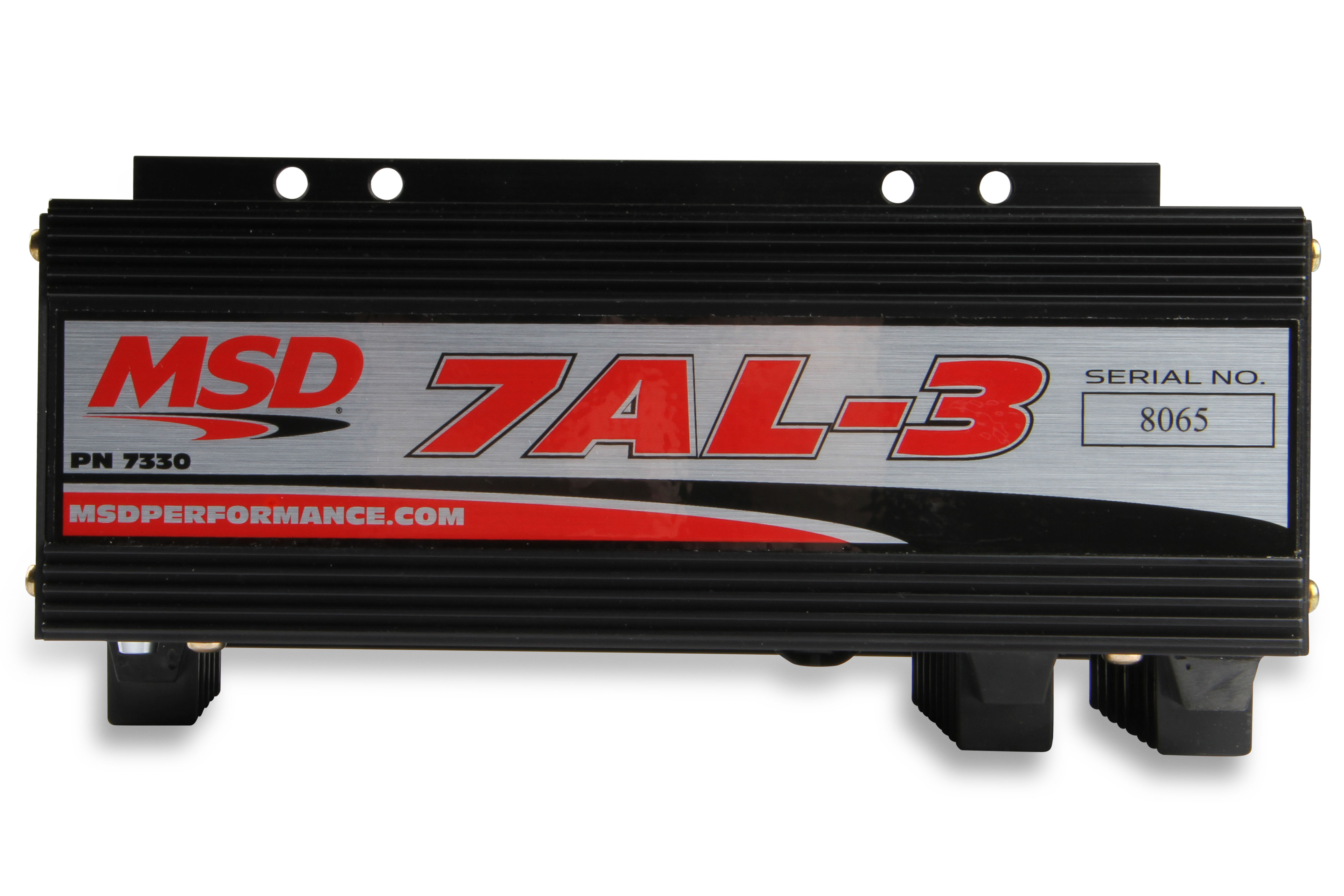

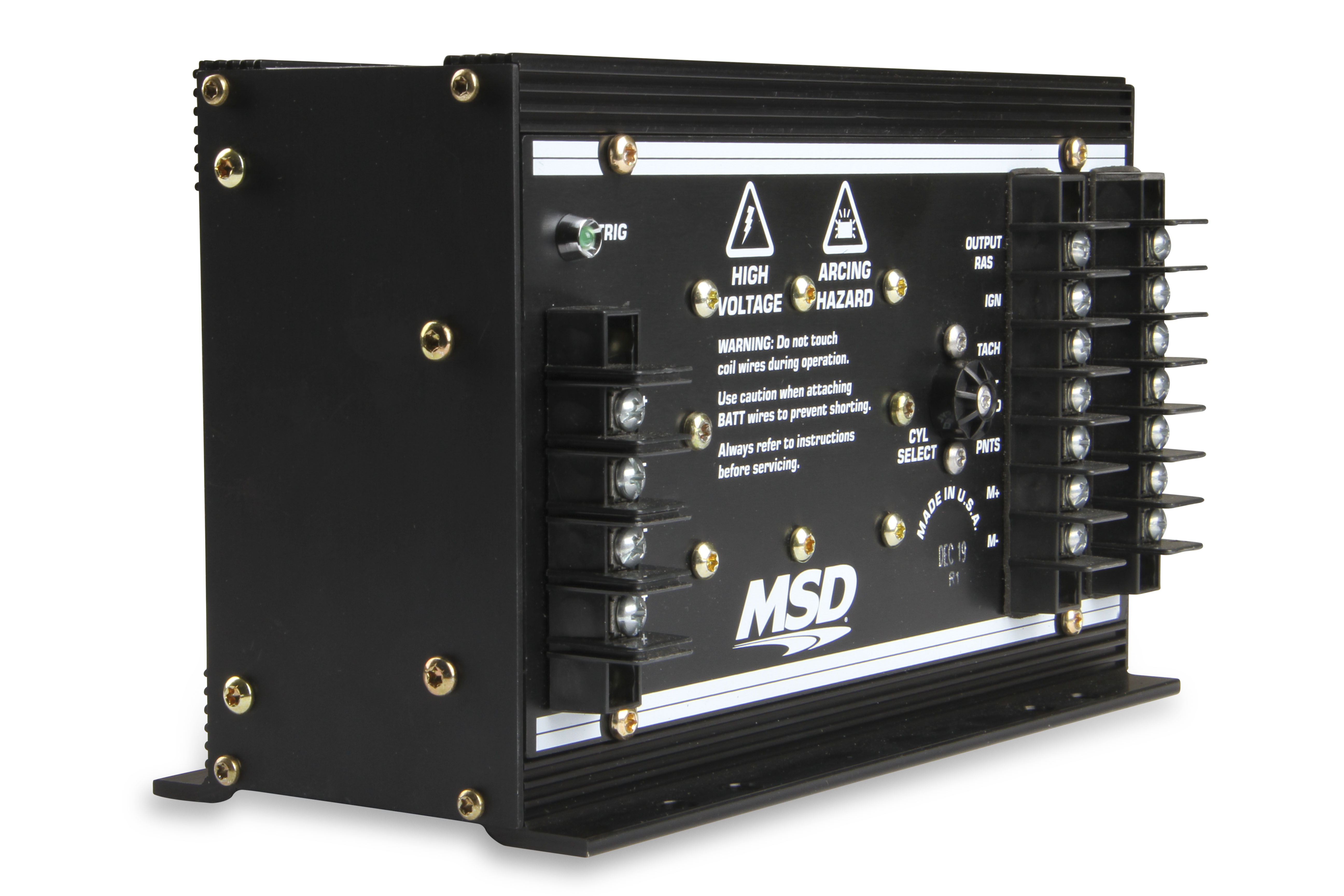

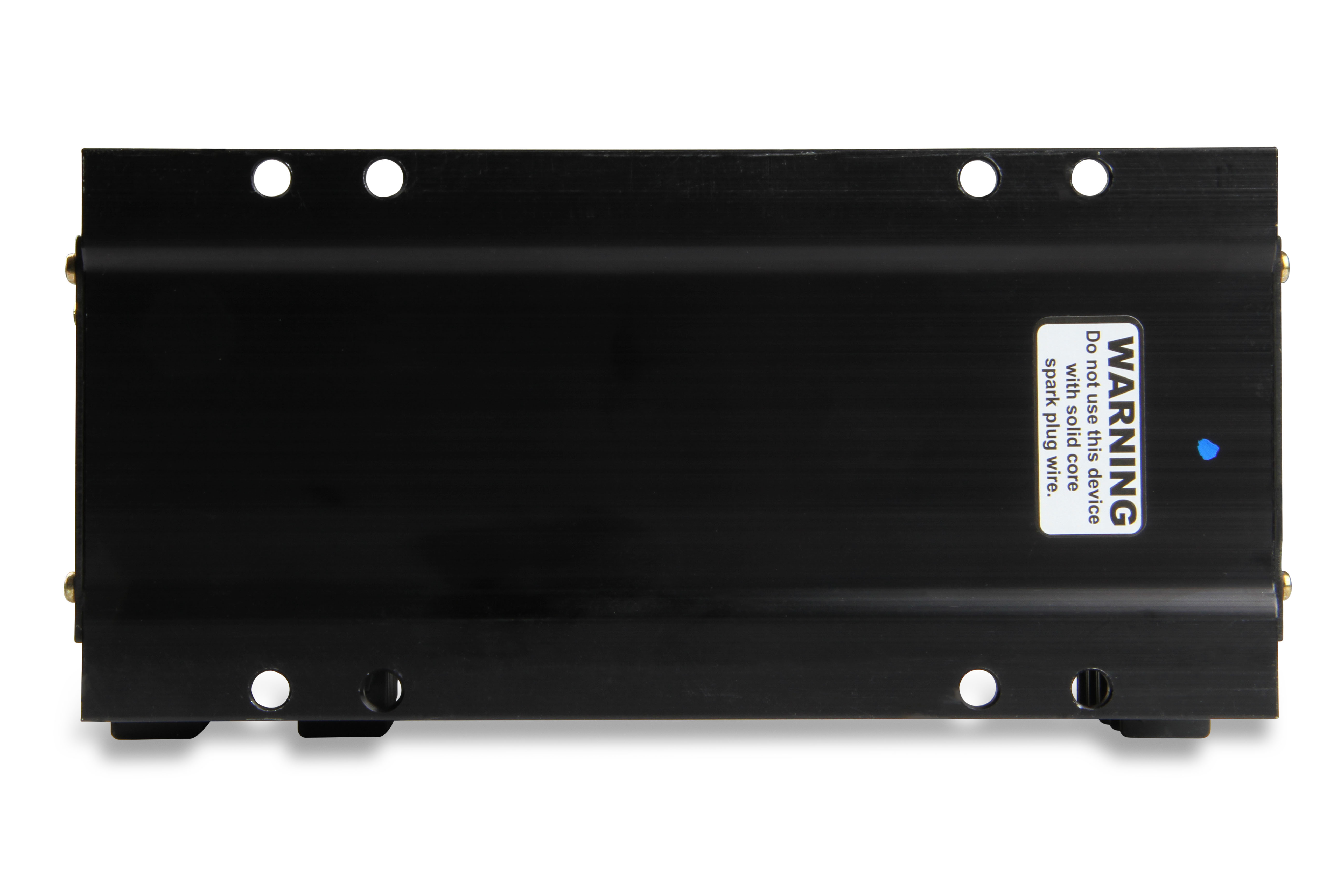

• Black anodized housing — drop-in replacement for original 7AL-3 mounting footprint

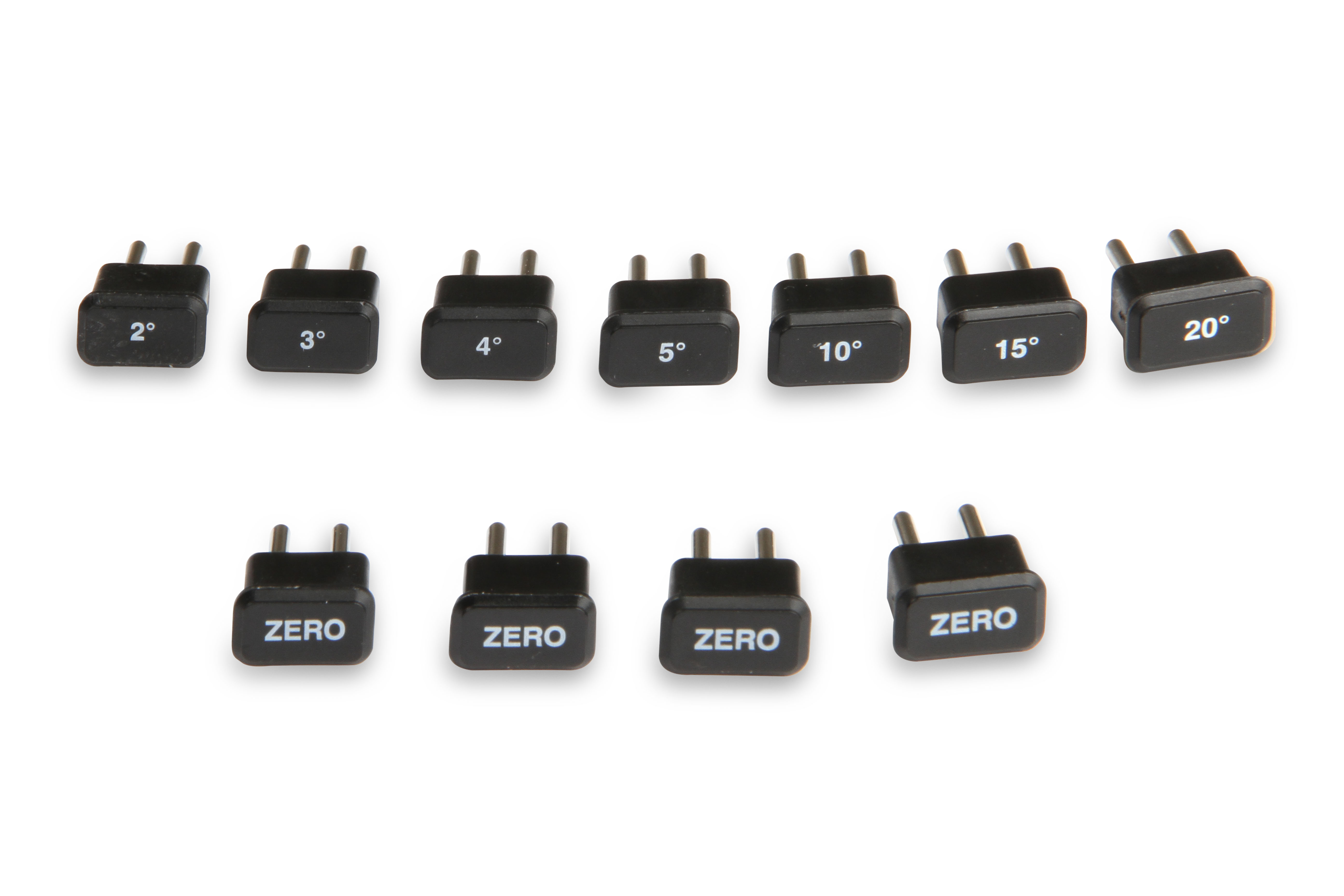

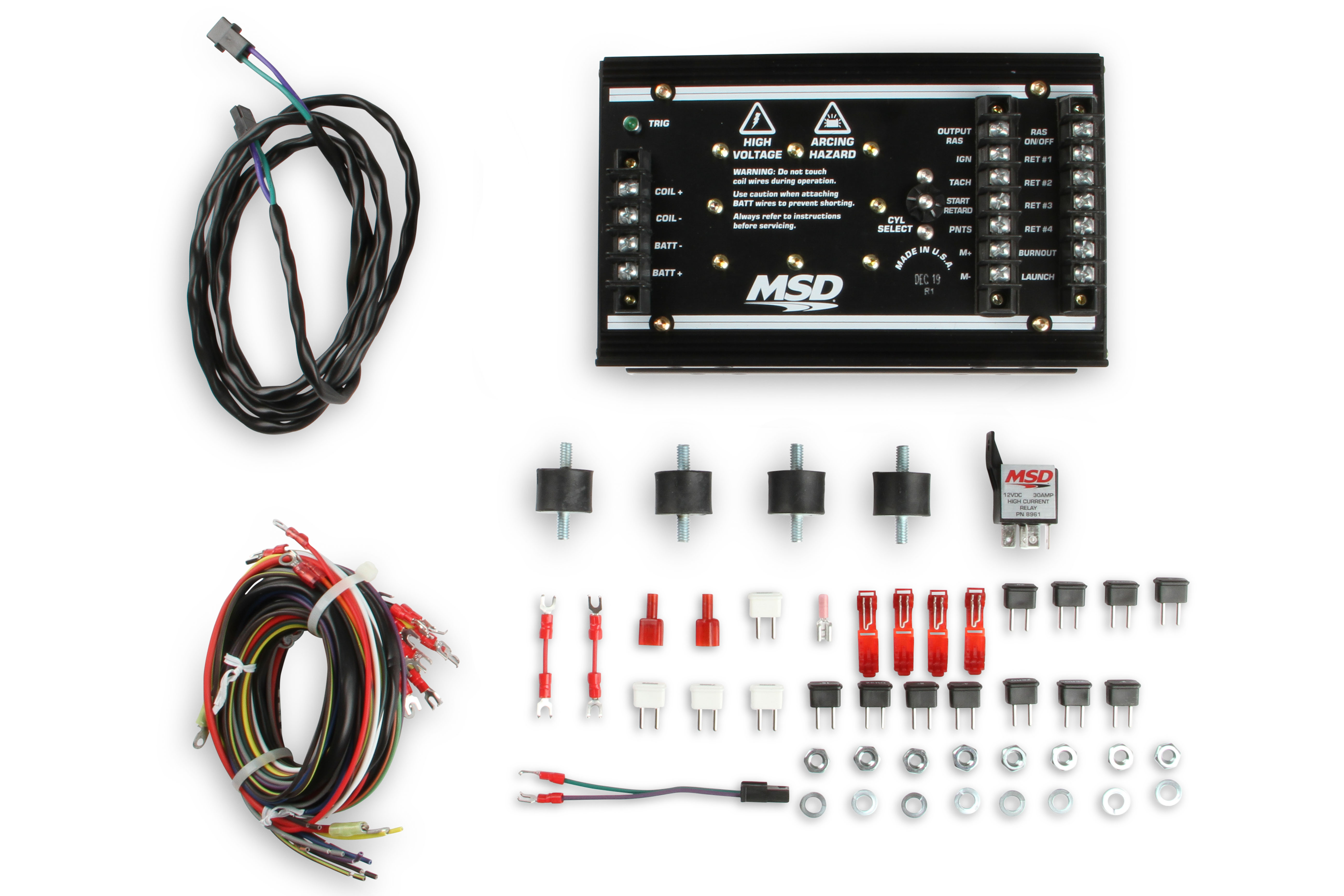

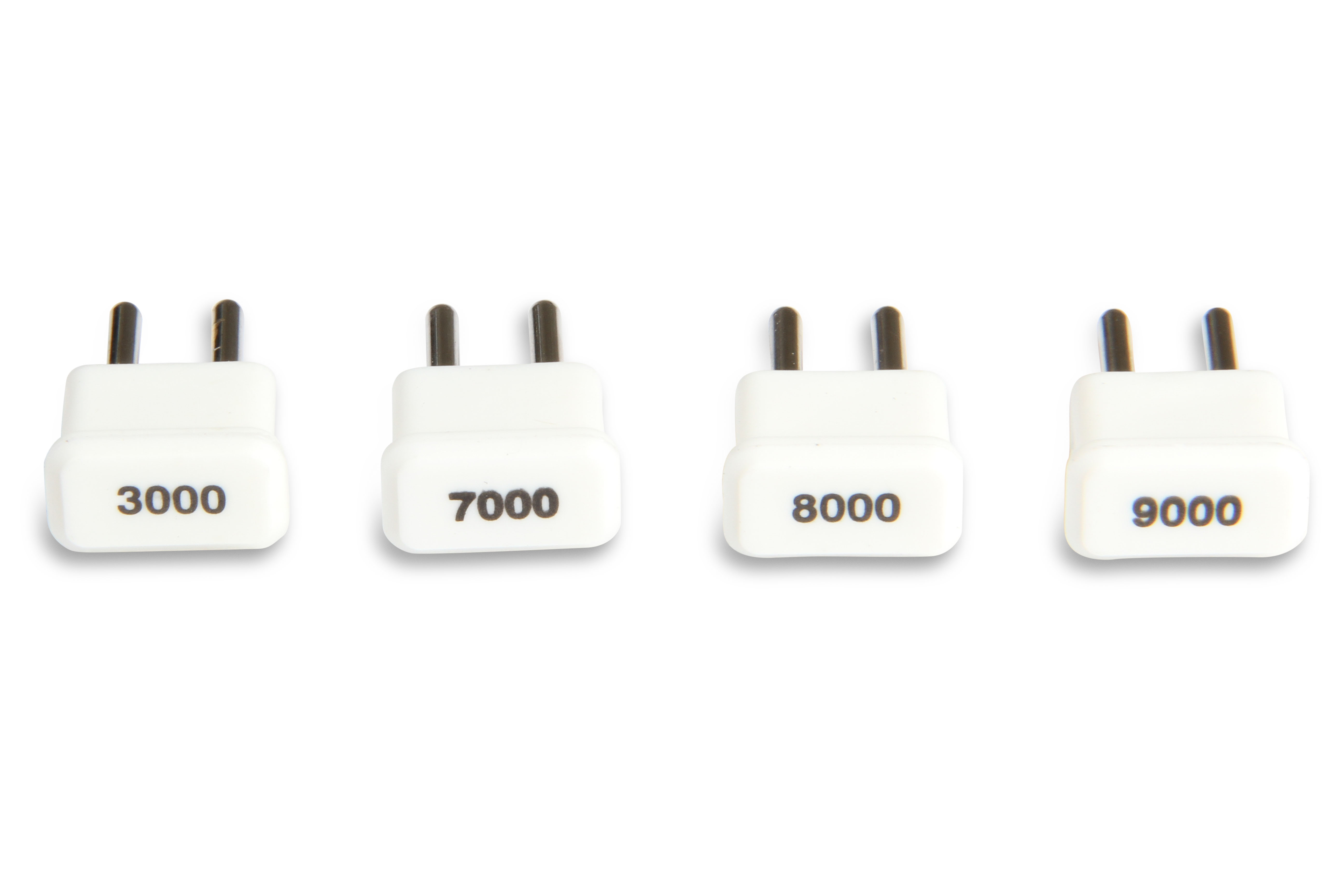

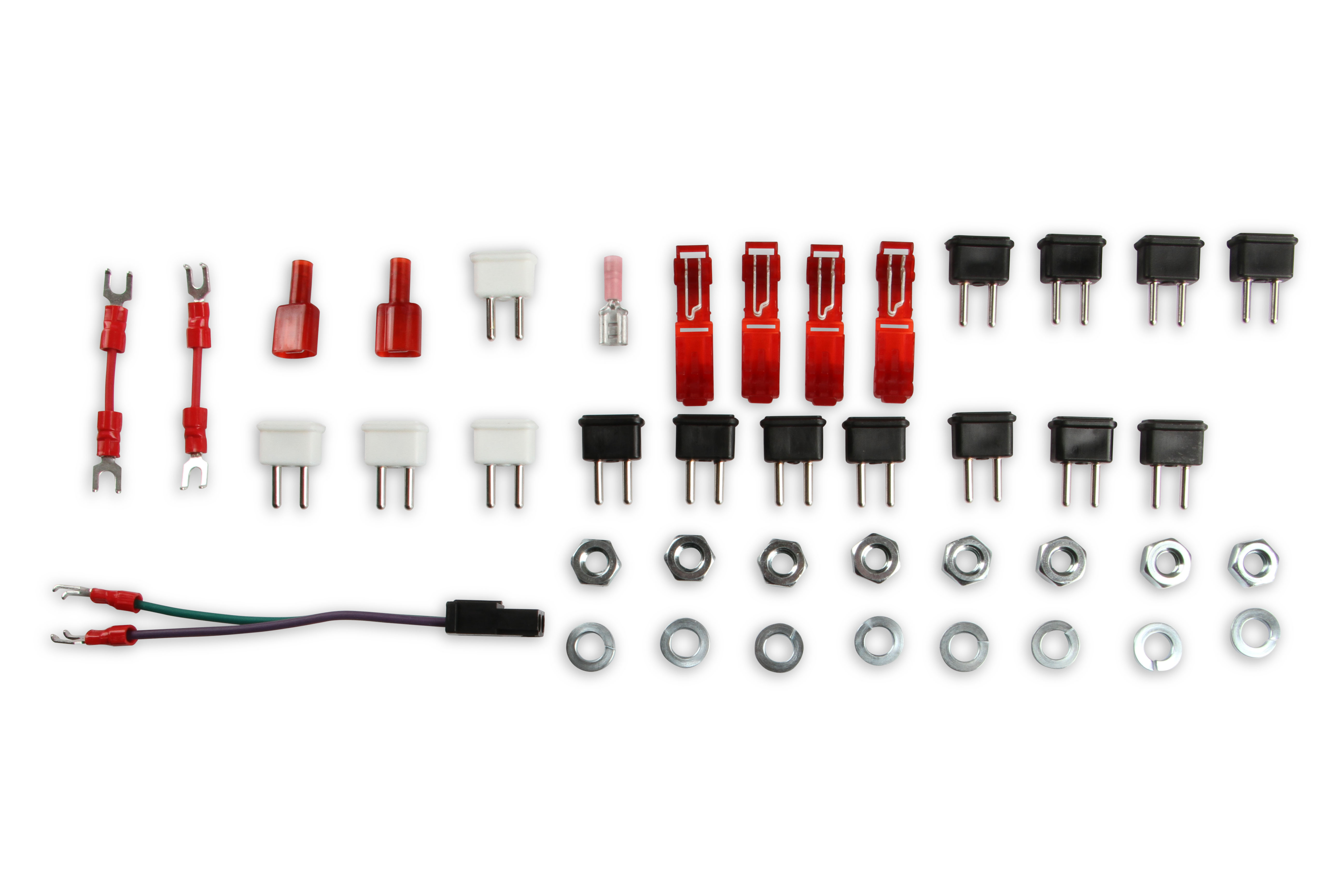

• Supplied with assorted RPM and timing plug-in modules

Operating Specifications:

• Spark Energy: 160 mJ per spark
• Primary Voltage: 570 Volts
• Secondary Voltage: 50,000 Volts (with MSD Pro Power Coil 8201)
• Spark Duration: 20° crankshaft rotation
• RPM Range: Up to 14,000 RPM at 14.4 Volts
• Current Draw: 6 Amps per 6,000 RPM; 12 Amps at 12,000 RPM
• Voltage Required: 12–18 Volts, Negative Ground
• Warranty: Limited 1-Year

Racing use only. Not legal for sale or use on emissions-controlled street vehicles.
