MAHLE 40141CP-060 Moly Piston Ring Set 4.185in Bore +.060 Over 8-Cylinder

(GMC G2500 1979-80, K1500 1979-80, C1500 1979-80, K2500 1979-80, Jimmy 1975-79, C3500 1979, K2500 Suburban 1979-80, K3500 1979-80 + 148 more models)

Manufacturer

Part Number

40141CP-060
Sale Price

$129.51

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

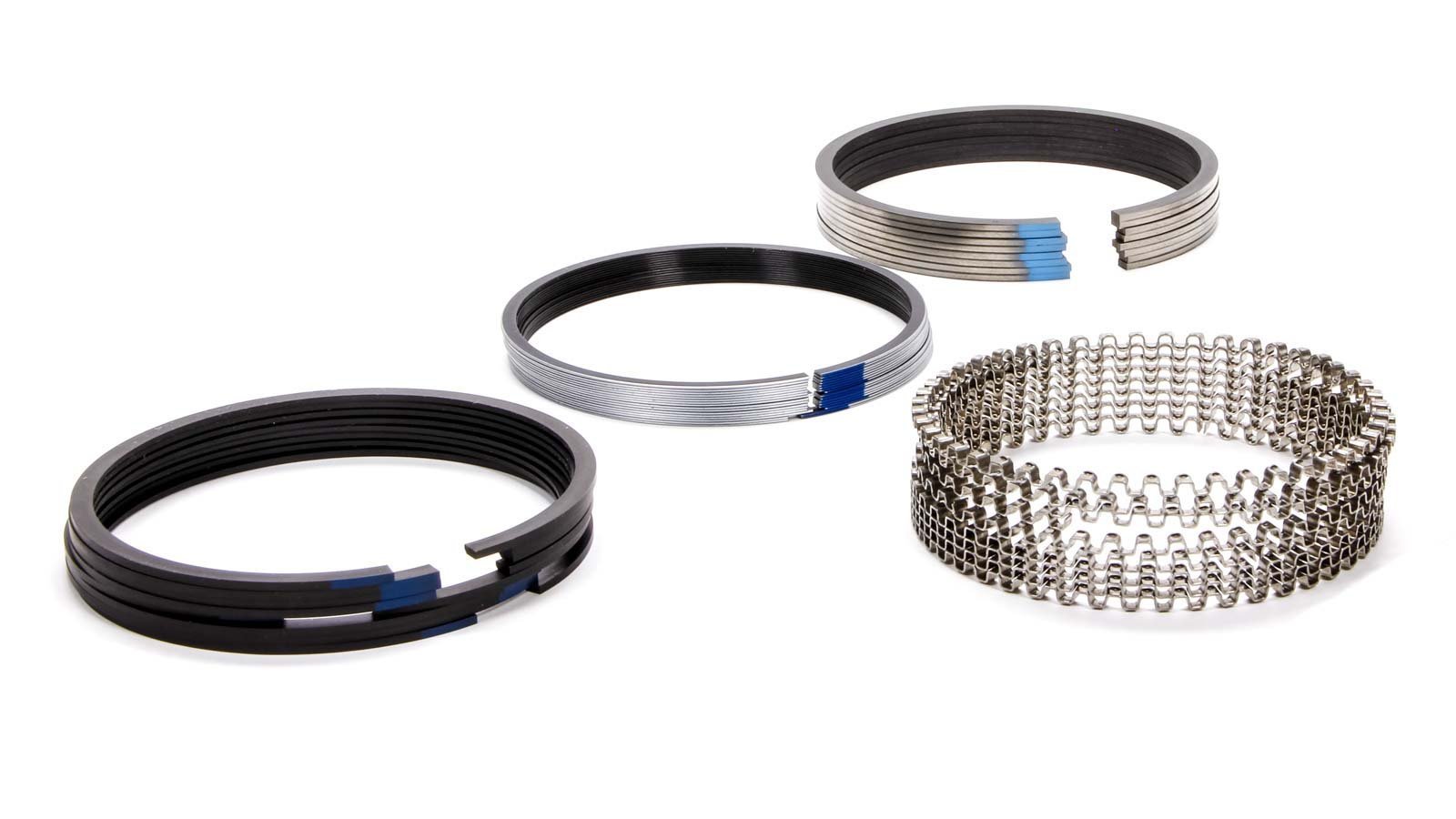

The MAHLE 40141CP-060 is a precision-ground, plasma-moly piston ring set designed for 8-cylinder engines bored to 4.185 inches (+.060" oversize). Built to OE-quality standards with premium materials and strict quality controls, these rings deliver reliable compression sealing, superior oil control, and long service life — making them an ideal choice for engine rebuilds and re-ring jobs.

Key Features:

  • Plasma-moly top compression ring for long life under severe and high-performance operating conditions
  • Barrel-faced compression ring contact area for more efficient compression sealing
  • CNC-controlled gap chamfer on compression rings to optimize sealing and minimize blow-by
  • Taper-face reverse twist second ring for superior groove side sealing and enhanced cylinder wall contact
  • 3-piece oil ring assembly (CP-20) with a stainless steel expander between two chrome-faced steel rails for excellent conformability within the bore
  • 20-degree ear angle on oil ring expander — an exclusive design feature that maximizes side seal against the cylinder wall
  • Special chemical polish on oil ring expander for enhanced oil drain-back performance
  • Pre-lapped rings seat immediately, virtually eliminating break-in time
  • Installer-friendly design prevents incorrect installation, saving time and reducing errors
  • Ring tension, materials, and coatings optimized per application for reduced friction and extended service life

Specifications:

  • Bore Size: 4.185 in. (+.060" oversize)
  • Ring Thickness: 5/64 in. (top), 5/64 in. (second), 3/16 in. (oil)
  • Cylinder Count: 8-cylinder
  • Sold as: 8 complete ring sets
  • MPN: 40141CP-060 (also listed as 40141CP.060)
  • UPC: 725975140345

MAHLE's CP-series piston rings are the trusted choice of professional engine builders worldwide. Whether performing a full engine overhaul or a re-ring, the 40141CP-060 delivers consistent, high-quality performance you can depend on.

Products specifications

Fits

GMC G2500 1979-80, K1500 1979-80, C1500 1979-80, K2500 1979-80, Jimmy 1975-79, C3500 1979, K2500 Suburban 1979-80, K3500 1979-80, C15/C1500 Pickup 1970-72, C2500 1979, K1500 Suburban 1979-80, K15/K1500 Pickup 1970-72 + 144 more models

Bore (in)

4.185 in.

Bore (mm)

106.299mm

File Fit

No

Gapless

No

Notes

Taper face reverse twist design second ring.

Oil Ring Included

Yes

Oil Ring Material

Stainless steel

Oil Ring Tension

Standard

Oil Ring Thickness

3/16 in.

Quantity

Sold as a set.

Second Ring Facing Material

Cast iron

Second Ring Included

Yes

Second Ring Material

Cast iron

Second Ring Thickness

5/64 in.

Top Ring Facing Material

Moly

Top Ring Included

Yes

Top Ring Material

Cast iron

Top Ring Thickness

5/64 in.

Piston Ring Size

.060IN

Piston Ring Type

Premium
