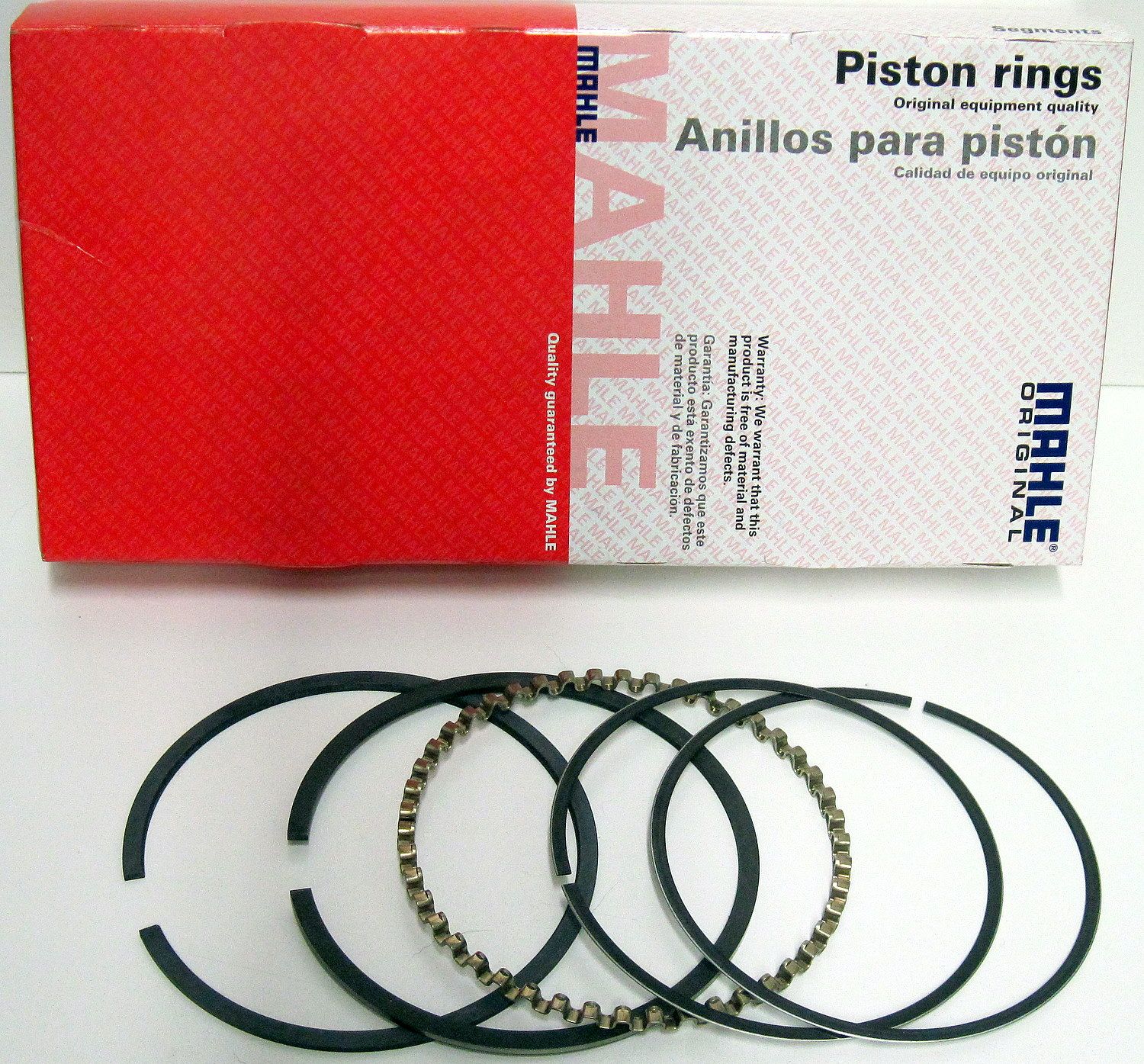

MAHLE 315-0035.060 Plasma-Moly Performance Piston Ring Set 4.310 in. Bore 8-Cylinder

Manufacturer

Part Number

3150035-060
Black Friday Price

$157.42

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 315-0035.060 is a plasma-moly performance piston ring set designed for 8-cylinder engines with a 4.310-inch bore (+.060 in. oversize). This set features a traditional 1/16 in. – 1/16 in. – 3/16 in. ring thickness configuration and is engineered to deliver superior combustion sealing, reduced friction, and maximum oil control in high-demand applications.

Key Features:

  • Plasma-moly ductile iron top ring — barrel-faced design promotes instant break-in and maintains consistent contact with the cylinder wall as the piston rocks at TDC and BDC
  • SAE 9254 steel construction with MAHLE's proprietary plasma face coating for extended service life, elimination of ring breakage, reduced side wear, and minimized groove pound-out
  • Reduced radial wall (RRW) design — smaller cross-section allows the top ring groove to be positioned closer to the piston crown, reducing crevice volume and unburned fuel emissions
  • Lower ring mass improves tolerance of inertial forces and enhances bottom-of-groove sealing at high RPM
  • Napier THG (hook groove) second compression ring — scrapes cylinder walls on each down stroke and provides a built-in oil reservoir for superior oil control
  • CP-20 oil control ring — features a unique 20-degree ear angle for exceptional cylinder wall sealing and reduced oil consumption
  • Standard tension — suitable for street, racing, and marine applications
  • File-fit design for precise end-gap tuning

MAHLE piston rings are developed using advanced piston ring simulation software and rigorous testing protocols, making them one of the most technically refined ring sets available. The 315-0035.060 ring set is well-suited for high-output, high-RPM builds where combustion sealing, oil control, and durability are critical priorities.

Specifications:

  • Bore Diameter: 4.310 in. (+.060 in. oversize)
  • Top Ring Width: 1/16 in.
  • Second Ring Width: 1/16 in.
  • Oil Ring Width: 3/16 in.
  • Cylinder Count: 8
  • Top Ring Coating: Plasma-Moly
  • Tension: Standard
  • Fit Type: File Fit
