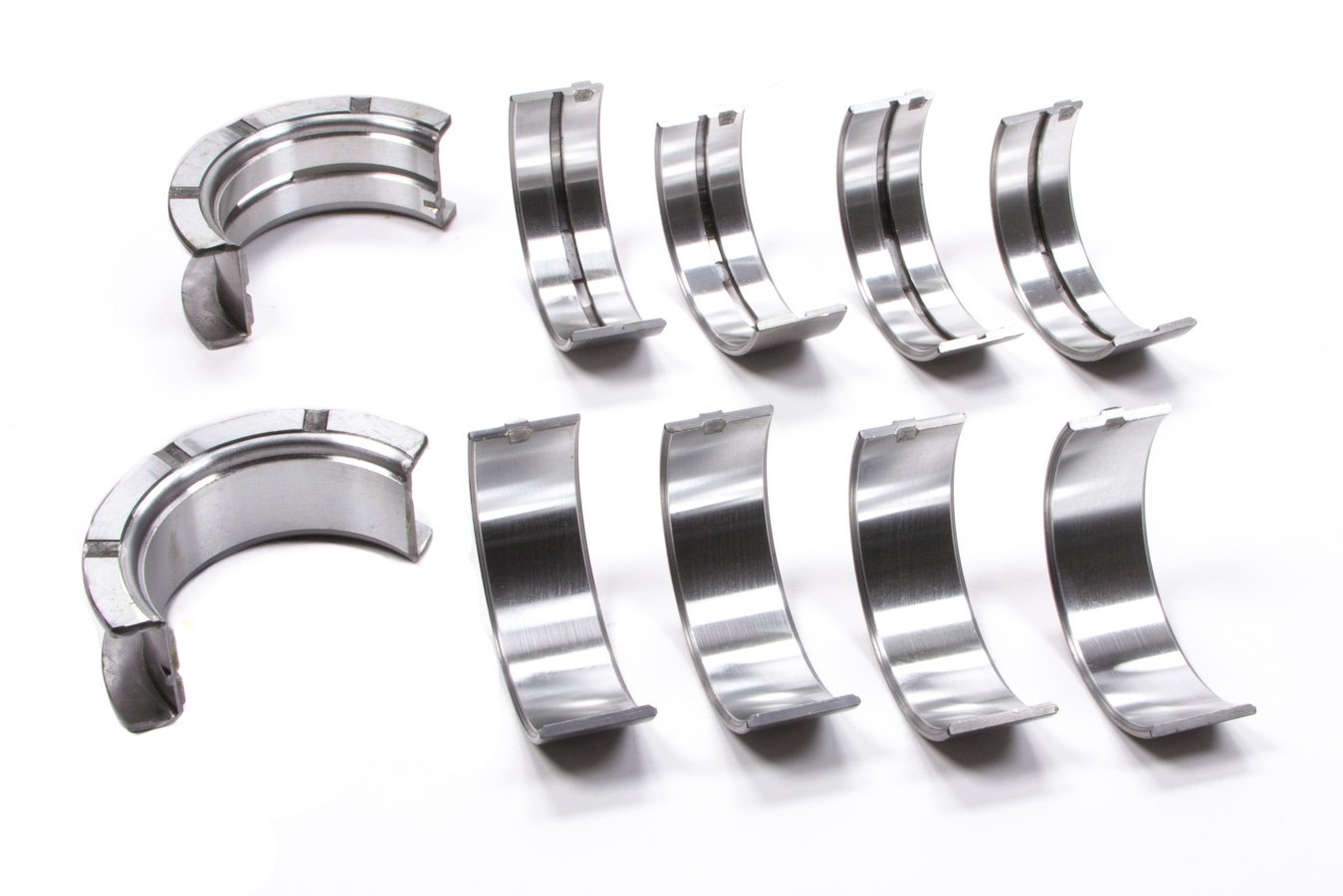

King Engine Bearings MB 529HP 001 HP-Series Main Bearing Set Ford 260ci 289ci 302 5.0L Windsor

(Ford F-150 1975-96, Mustang 1964-95, Explorer 1996-2001, F-250 1969-97, Bronco 1966-96, Thunderbird 1977-88, 1991-93, F-350 1972-98 + 86 more models)

Manufacturer

Part Number

MB 529HP 001
Black Friday Price

$121.62

Estimated ship date Thursday, December 10

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The King Engine Bearings MB 529HP 001 is a complete HP-Series crankshaft main bearing set engineered for high-performance Ford 260ci, 289ci, 302ci, and 5.0L Windsor small block engines. This set is supplied at .001" undersize, designed for use when the crankshaft has been turned down and is now undersized — the bearing itself is thicker to restore correct running clearance.

King's HP-Series features the proprietary Alecular™ bi-metal construction — an aluminum/tin/silicon alloy top layer bonded to a high-strength steel backing. This advanced material is engineered to resist surface migration and extrusion under extreme loads, including conditions that would destroy conventional tri-metal Babbitt-overlay bearings. The Alecular™ structure delivers a temperature threshold of approximately 450°F, significantly higher than standard tri-metal bearings.

Key Features:

  • Alecular™ bi-metal construction — aluminum/tin/silicon alloy top layer on high-strength steel backing
  • Enlarged, chamfered oil holes with 3/4 grooving for improved oiling to rod journals
  • Bull's Eye Tolerance — wall thickness matched shell-to-shell to within 0.0001" for consistent fit
  • Higher embedability — resists macro-particle contamination that causes journal scoring
  • Lead-free construction — environmentally compliant Alecular material
  • Designed for use with nodular cast iron and aftermarket crankshafts with large journal radii
  • Sold as a complete engine main bearing set (5 pairs)
  • Size: .001" undersize

The HP-Series is the ideal choice for street/strip and drag racing builds, including blown, turbocharged, nitrous-assisted, and alcohol-fueled applications. It is particularly well suited for short-duration, high-load events such as drag racing, tractor pulling, and monster truck competition. Compatible with Ford 260ci, 289ci, 302ci, and 5.0L Windsor small block engines.

Products specifications

Fits

Ford F-150 1975-96, Mustang 1964-95, Explorer 1996-2001, F-250 1969-97, Bronco 1966-96, Thunderbird 1977-88, 1991-93, F-350 1972-98, Maverick 1970-77, Galaxie 500 1962-74, F-100 1969-83, F-250 Pickup 1972-74, Fairlane 1962-70 + 81 more models

Additional Shell Thickness

+.0005in

Crank Undersized

0

Size

0.001in (.025mm)

Material

alecular (racing line)

Undersize

001

Flange Oversize

FL STD

Housing Diameter

62.03 / 62.01 mm || 2.442 / 2.441 inch

STD Max Thickness

2.438

Shaft UnderSize

001

STD Shaft Diameter

57.12 / 57.10 mm || 2.249 / 2.248 inch
