King Engine Bearings CR 808XPN 021 XP-Series Connecting Rod Bearing Set Big Block Chevy 369-502 Gen IV/V/VI Narrowed .021" Undersize

(Cadillac DeVille 1965-67, Eldorado 1965-67, Fleetwood 1965-67, Commercial Chassis 1965-67, Calais 1965-67; Chevrolet Camaro 1967-72 + 168 more models)

Manufacturer

Part Number

CR 808XPN 021
Black Friday Price

$139.18

Estimated ship date Friday, December 11

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

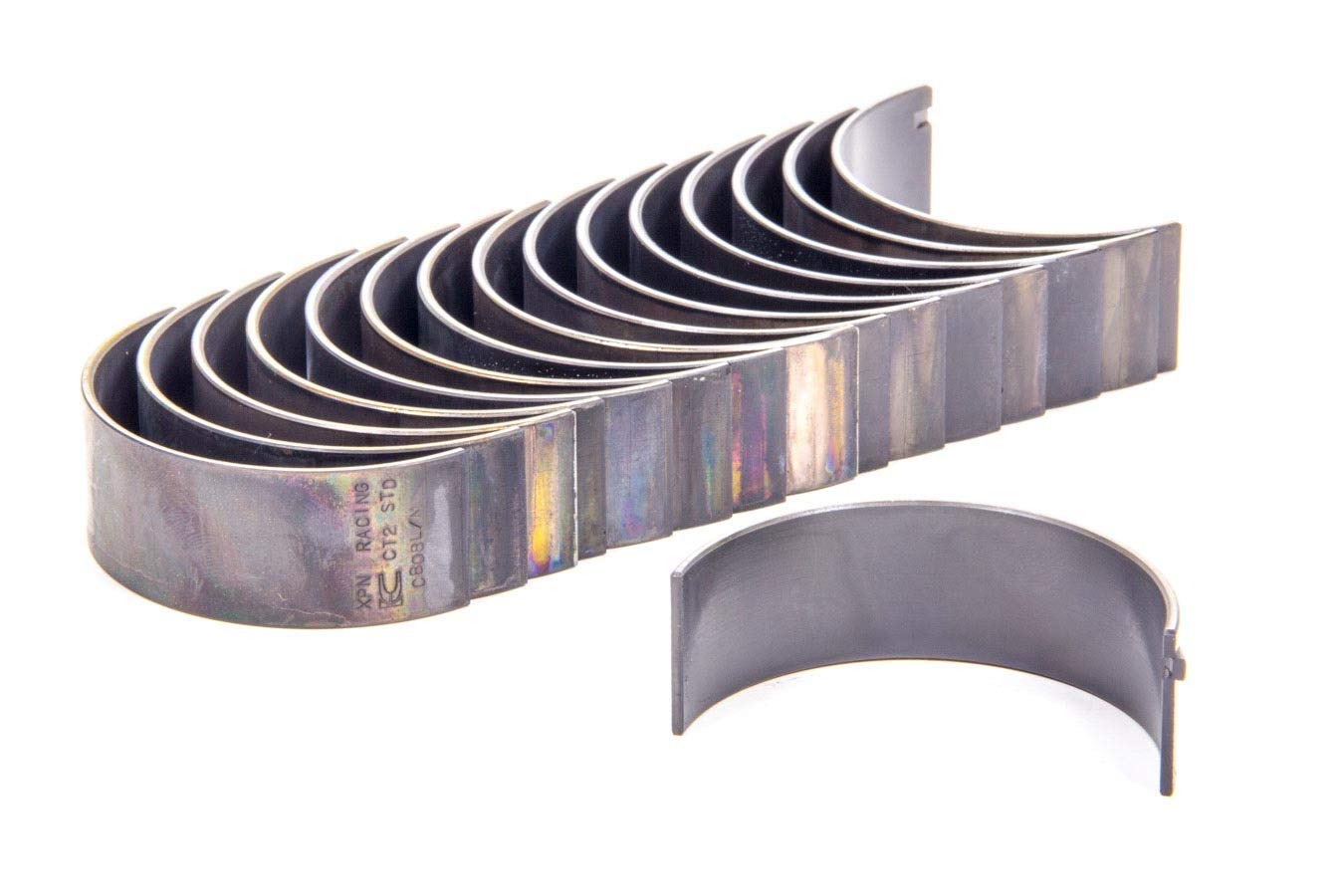

The King Engine Bearings CR 808XPN 021 is an XP-Series tri-metal connecting rod bearing set designed for the Chevrolet Big Block 369–502 cubic inch engines (Gen IV, V, and VI). These bearings are narrowed to accommodate aftermarket crankshafts machined with large fillet radii, and are supplied in a .021" undersize for use with crankshafts that have been turned down by .021".

pMaxBlack™ Tri-Metal Construction:

  • Features King's proprietary pMaxBlack™ overlay — a nano-scaled hardening process producing superior load capacity of 10,200 PSI in the overlay layer
  • Intermediate layer uses a copper-based alloy with 4.5% tin content, achieving 115 HV hardness — 22% harder than conventional tri-metal race bearings
  • SecureBond™ micro-etch surface preparation strengthens tri-metal structural integrity and reduces risk of delamination under extreme load or metal-to-metal contact
  • Narrowed profile designed to clear large-radius crankshaft fillets — ideal for aftermarket steel cranks

XP-Series Geometric Features:

  • Bull's Eye Tolerance — wall thickness maintained to an industry-leading ±0.0001", shell to shell
  • Increased crush height — improves bearing-to-bore contact, enhances heat transfer, and reduces spin potential at high RPM
  • U-Groove oil hole design — a hybrid oil slot/oil hole that improves oil ingress without compromising bearing surface area
  • 45° chamfer on the crank cheek side to accommodate large-radius cranks
  • Medium eccentricity for optimum load distribution and improved oiling

Ideal Applications:

  • Circle track and endurance racing
  • Drag racing and high-load short-duration events
  • Off-shore marine racing
  • Any high-performance application using forged steel aftermarket crankshafts

Undersize Note: "Undersize" refers to a thicker bearing shell used when a crankshaft journal has been turned down (ground undersize). A .021" undersize bearing is used when the crankshaft journal has been reduced by .021" from the standard diameter.

Sold as a complete engine set. King Engine Bearings has specialized exclusively in engine bearings since 1960, applying race-proven technology to every bearing they produce.

Products specifications

Fits

Cadillac DeVille 1965-67, Eldorado 1965-67, Fleetwood 1965-67, Commercial Chassis 1965-67, Calais 1965-67; Chevrolet Camaro 1967-72, Corvette 1965-74, Silverado 2500 HD 2001-07, Impala 1958-76, Malibu 1965-67, 1973-76, C1500 1990-93 + 163 more models

Additional Shell Thickness

+.0105in

Crank Undersized

-0.020in

Size

0.21in (0.50mm)

Material

pMax Black (racing line)

Undersize

021

STD Shaft Diameter

55.88 / 55.85 mm || 2.200 / 2.199 inch

Housing Diameter

59.06 / 59.05 mm || 2.325 / 2.325 inch

STD Max Thickness

1.572

Shaft UnderSize

021
