Hella 007794317 12V 20/40A SPDT Weatherproof Relay with Mounting Bracket

Manufacturer

Part Number

007794317
Black Friday Price

$9.77

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

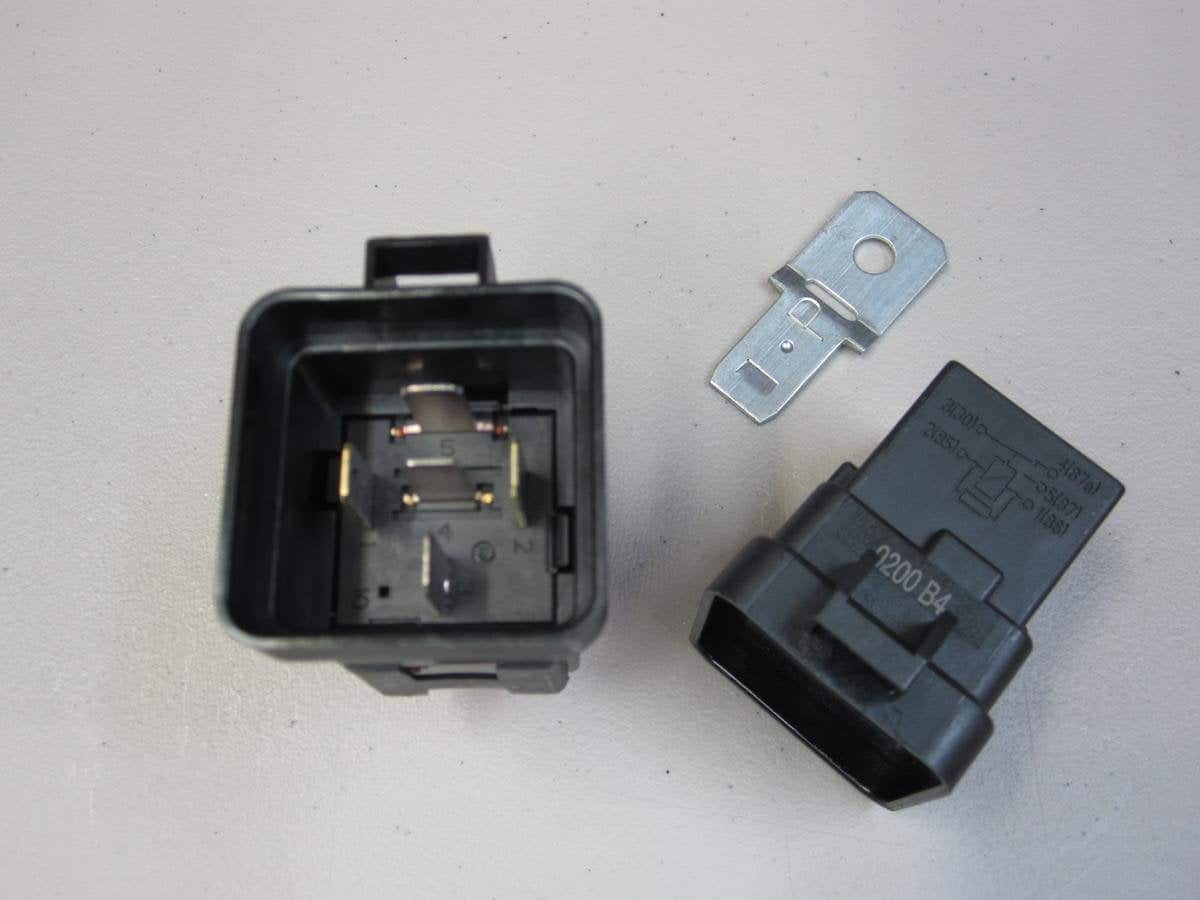

The Hella 007794317 is a 12-volt, Single Pole Double Throw (SPDT) automotive relay rated at 20 amps on the normally closed contact and 40 amps on the normally open contact, making it ideal for switching high-current circuits in demanding vehicle electrical systems. It comes equipped with an integrated weatherproof mounting bracket for secure, protected installation in engine bays and other moisture-exposed environments.

Built to OEM standards, this relay features a resistor (RES) suppression circuit that reduces voltage spikes to less than 100V when the relay is deactivated, protecting sensitive electronic components from potential damage. The 5-pin ISO layout uses standard 0.250" (6.3mm) blade terminals for easy integration with common automotive wiring harnesses.

Key Features:

  • Voltage: 12V DC operating voltage
  • Current Rating: 20A continuous (N.C. contact) / 40A continuous (N.O. contact)
  • Configuration: SPDT (Single Pole Double Throw / Changeover)
  • Terminals: 5-pin ISO layout with 0.250" / 6.3mm male blade terminals
  • Coil Current: Approximately 170 mA
  • Suppression: Built-in resistor suppression to protect sensitive electronics
  • Mounting: Includes weatherproof bracket for protected, secure installation
  • Certifications: Compliant with DIN EN ISO 9001, ISO/TS 16949, ISO 14001, RoHS, and REACh standards

Typical applications include engine control circuits, fuel pumps, cooling fans, lighting systems, horns, and headlight cleaning systems. Cross-reference part numbers: 87412 / 87412B. Sold as a single relay with bracket.
