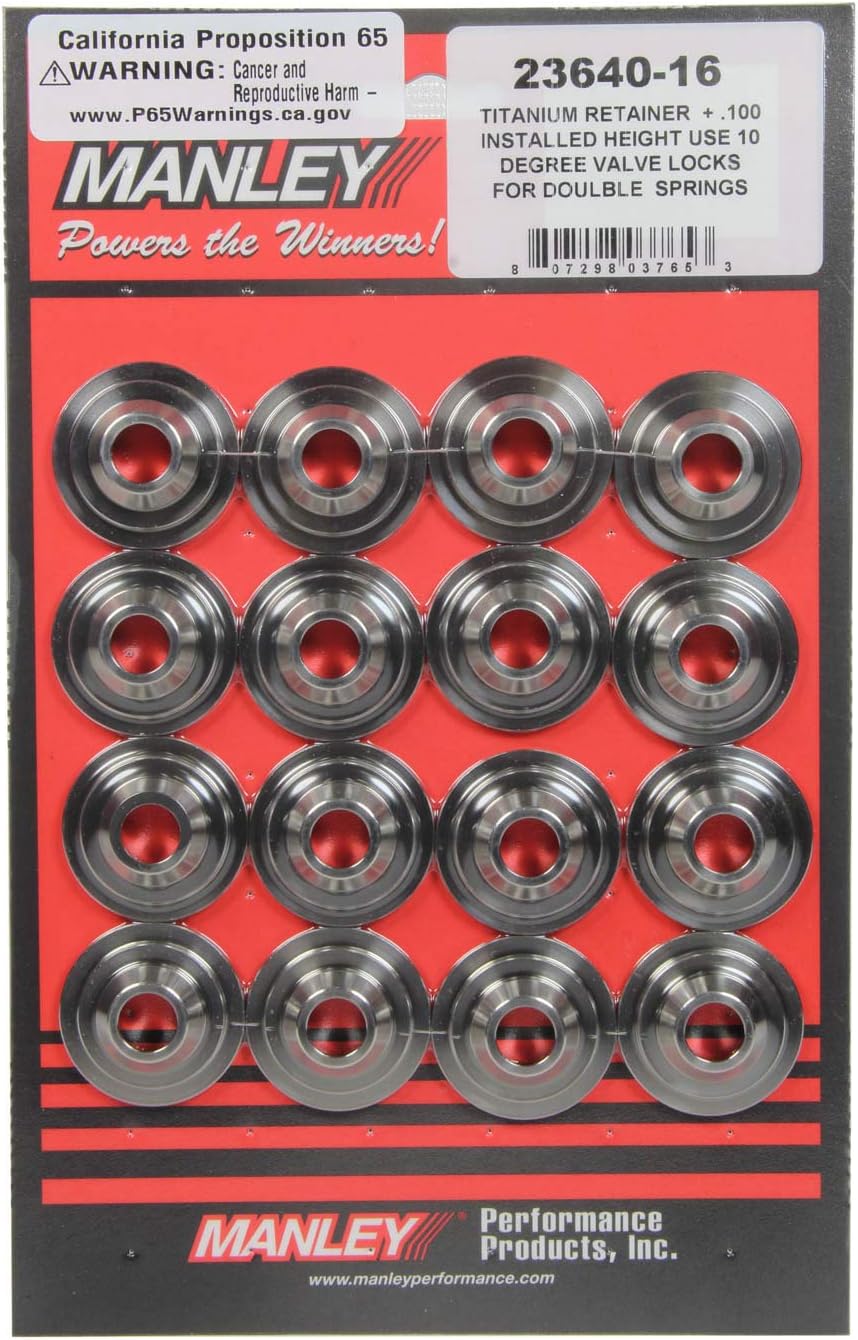

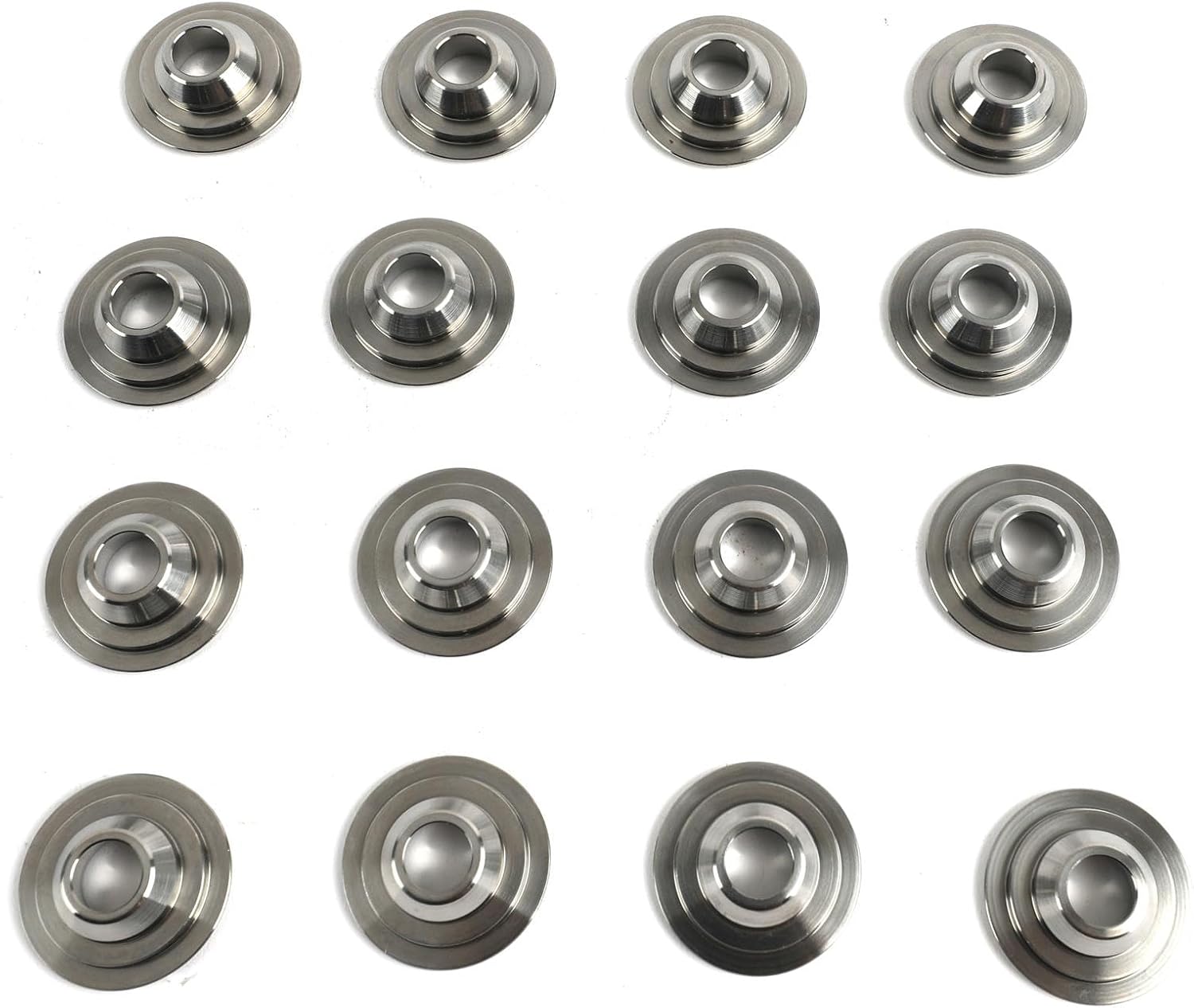

Manley 23640-16 Titanium Valve Spring Retainers 10 Degree 1.625" Dual Spring

Manufacturer

Part Number

23640-16
Black Friday Price

$338.54

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 23640-16 Titanium Valve Spring Retainers are engineered to reduce valvetrain weight and enable higher RPM operation for increased power output. These precision-machined retainers feature a 10-degree lock angle and are specifically designed for dual spring applications.

Key Features:

  • Constructed from aerospace-grade 6AL-4V titanium alloy for maximum strength-to-weight ratio
  • 10-degree lock style provides secure valve lock engagement
  • Designed for 1.625" outer spring diameter with dual spring configuration
  • Inner spring step: 0.850" OD, Middle spring step: 1.175" OD
  • Adds 0.100" to installed height for proper spring preload adjustment
  • Compatible with Manley dual valve springs 221424, 221425, and 221454
  • Sold as a complete set of 16 retainers

Manley's titanium retainers offer an excellent value for all forms of racing and high-performance street applications. The lightweight titanium construction reduces reciprocating mass in the valvetrain, allowing for more aggressive camshaft profiles and higher engine speeds while maintaining valvetrain stability.

Products specifications

Inside Diameter of Inner Spring (in)

0.850 in.

Lock Style

10 degree

Notes

Adds 0.100 in. to installed height.

Number of Springs Per Valve

Dual

Outside Diameter of Middle Spring (in)

1.175 in.

Outside Diameter of Outer Spring (in)

1.625 in.

Quantity

Sold as a set of 16.

Retainer Style

Tall

Valve Spring Style

Standard

Weight

20

Height

0.100

Engine Type

ICE

Title

Manley Spring Retainer, RET-TI 10 DEG 1.625 DBL

Valve Spring

Manley 221424, 221425, 221454

Valve Spring Type

Double

Valve Spring Retainer Material

6AL-4V Titanium

Valve Spring Outer Diameter

1.625

First Step Diameter

1.500

Second Step Diameter

1.175

Third Step Diameter

0.850

Valve Lock Angle

10

Valve Spring Retainer Series

10 Degree Titanium

Product Type

Engine Valve Spring Retainer Set

Valve Spring Retainer Quantity

16
