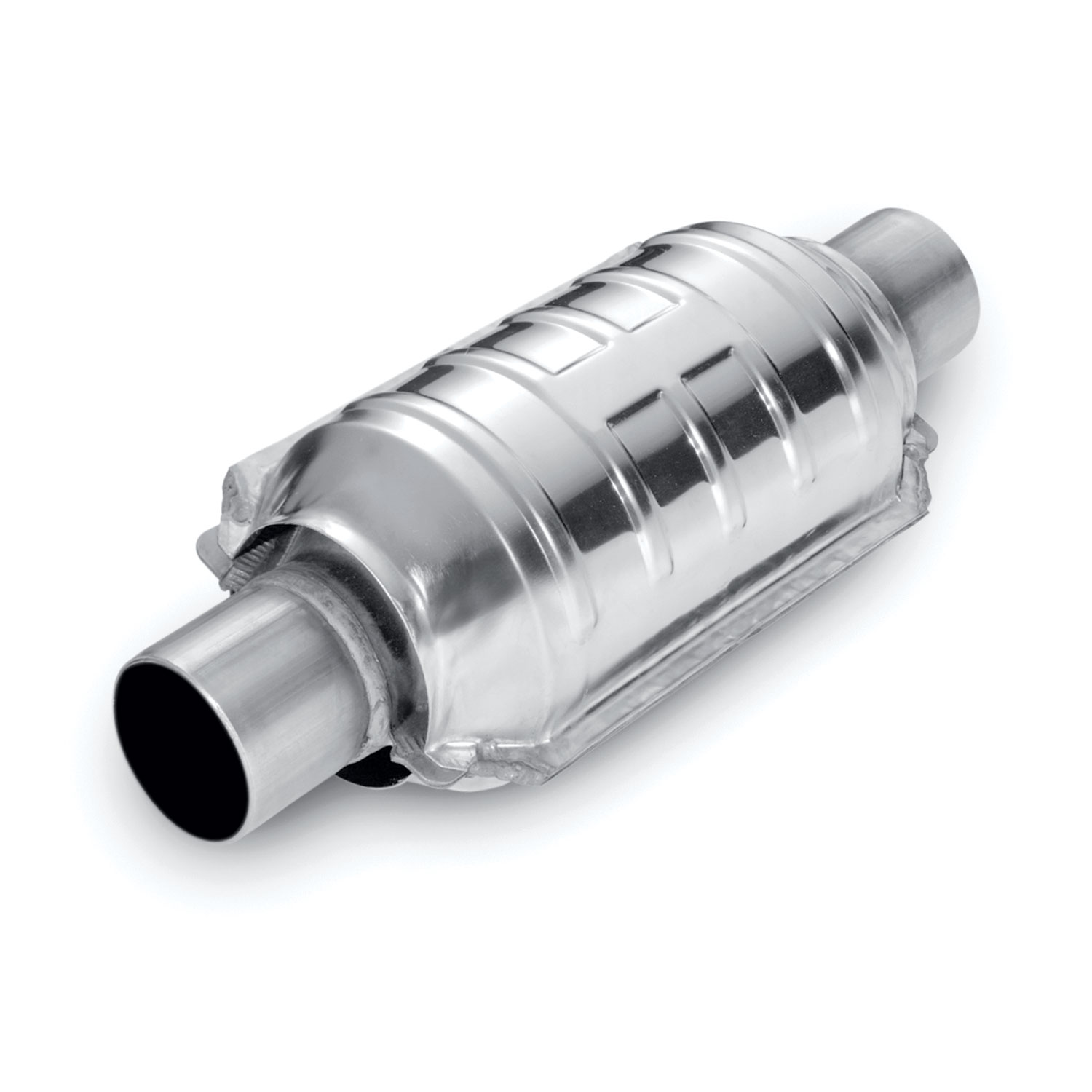

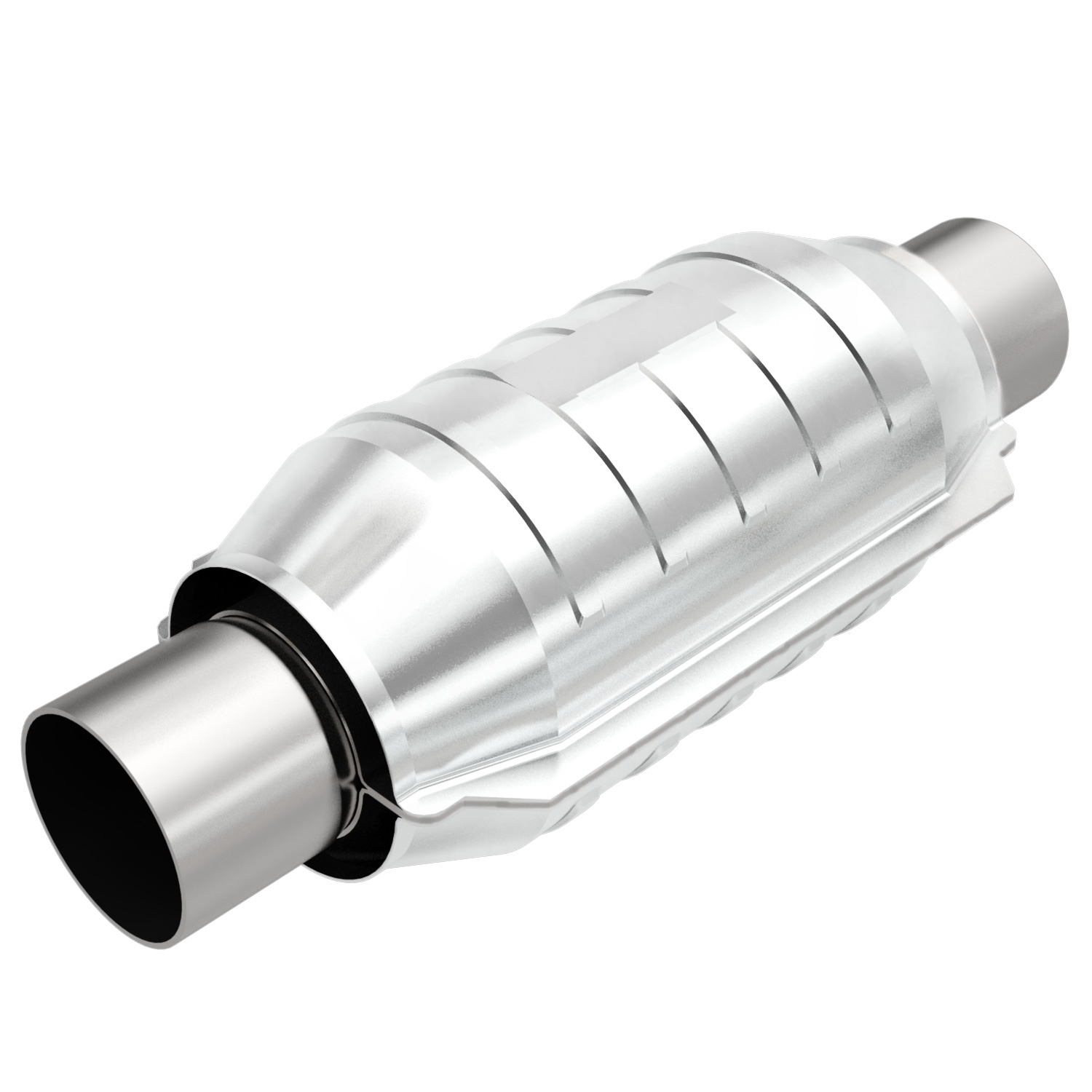

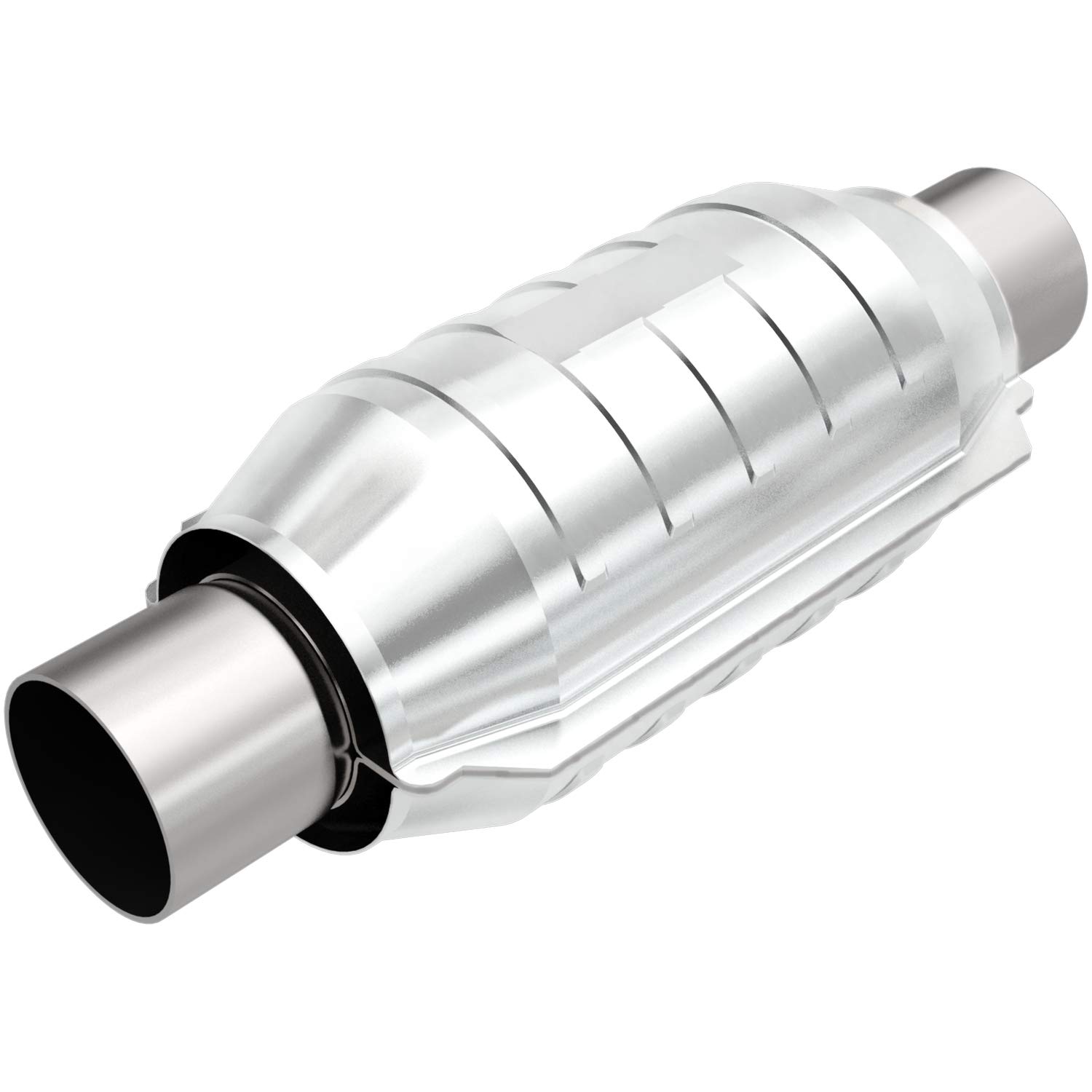

MagnaFlow 54309M Universal Catalytic Converter 3in Inlet/Outlet Stainless Steel

Manufacturer

Part Number

54309M
Sale Price

$192.00

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MagnaFlow 54309M is a universal-fit, OEM-grade catalytic converter built from heavy-gauge stainless steel and engineered to meet or exceed Federal EPA emissions requirements. Designed as a versatile replacement for failed or damaged converters, this unit covers a wide range of applications and allows professional installers to position it in the exact location and orientation required for a given vehicle.

Key Features:

  • Stainless Steel Construction: Heavy-gauge stainless steel used tip-to-tip for maximum corrosion resistance and long-term durability
  • Metallic Substrate Core: 200-cell metallic monolithic honeycomb catalyst designed for maximum flow and surface area, with a strictly controlled precious-metal coating process to maintain exact specifications
  • Mirror Finish Heat Shield: Attached OEM-style ribbed heat shield creates a rigid wall of thermal protection and adds structural stability to the converter body
  • Ribbed Body Design: External ribs minimize expansion and distortion under heat, protect the cushioning mat from direct exhaust gas exposure, and keep the catalyst substrate in proper alignment
  • Lap-Joint Neck Design: A 1/2 in. lap joint where the necks meet the body ensures the inlet/outlet necks do not extend into the converter body, eliminating internal flow restrictions
  • Seam-Welded Construction: Seams are welded close to the converter body for a strong, tight bond that prevents catalyst movement during thermal cycling
  • Weld-On Universal Fit: Round body configuration accepts a 3 in. inlet and 3 in. outlet; professional installation with cutting, welding, and tube-bending equipment is required
  • Federal EPA Compliant: Meets Federal emissions standards for OBDII-equipped vehicles; not legal for sale or use in California or other CARB-restricted states

Specifications:

  • Inlet Diameter: 3 in.
  • Outlet Diameter: 3 in.
  • Body Shape: Round
  • Body Length: 9 in.
  • Body Width: 4.375 in.
  • Body Height: 5.125 in.
  • Overall Length: 13 in.
  • Body Material: Stainless Steel
  • Substrate Material: Metallic (200-cell)
  • Inlet/Outlet Type: Weld-On
  • Heat Shield: Attached
  • CARB Compliant: No (49-State / Federal EPA)

Sold individually. Gaskets, clamps, and mounting hardware are not included. Professional installation is strongly recommended.

Products specifications

California Legal

No

CARB Compliant

N

Converter Case Material

Stainless steel

Converter Inlet Attachment

Slip fit

Converter Outlet Attachment

Slip fit

Converter Overall Length (in)

13.000 in.

Converter Overall Width (in)

5.130 in.

Converter Style

3-way

Converter Substrate Material

Metallic substrate

Inlet

3.00in

Inlet Diameter (in)

3.000 in.

Inlet Quantity

One

Notes

Converter has mirror finish heat shield.

Outlet

3.00in

Outlet Diameter (in)

3.000 in.

Outlet Quantity

One

Quantity

Sold individually.

Warranty

5 year/50,000 mile External, 2 years/25,000 miles Internal

Main Piping Diameter

3

Recommended Use

Converter
